MA-410 Static Mix Nozzle Evaluation Kit pk/20

Name: MA-410 Static Mix Nozzle Evaluation Kit pk/20
Brand: Adhesive Dispensing Ltd
Price: 14.16 GBP
Availability: InStock

MA-410 Static Mix Nozzle Evaluation Kit Adhesive Dispensing Ltd

Product Code: MA-410

Evaluation kit assortment of bayonet attachment static mixer nozzles. Total of 20 parts.

A test kit of mixer nozzles for use with the 50ml 4:1 and 10:1 ratio A-System dual Cartridges. These are bayonet style housing mixers suitable for secure attachment to the cartridge twist-on/ twist-off.

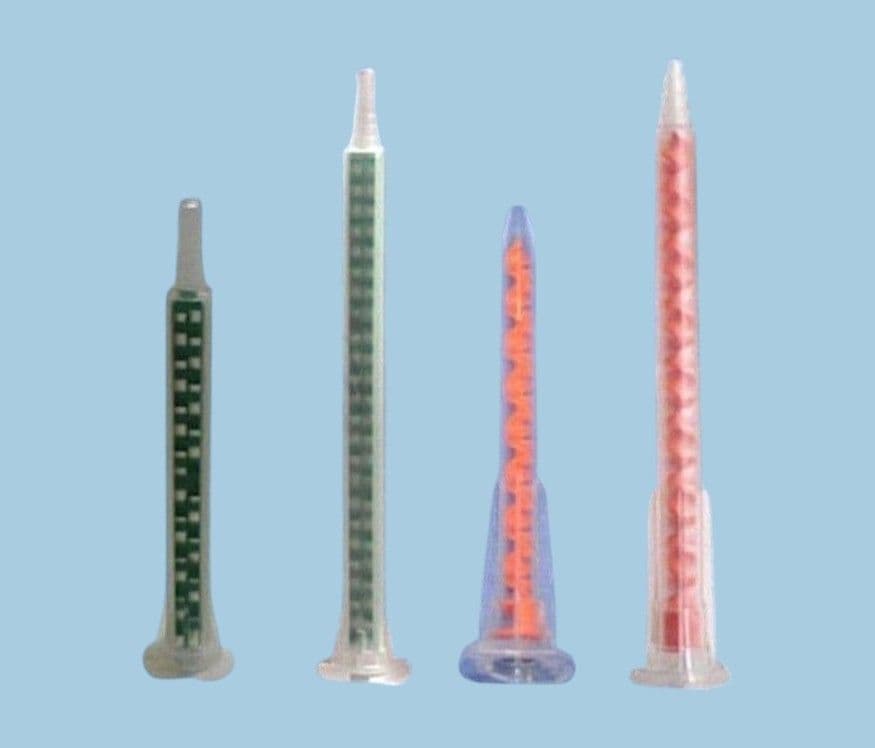

The kit includes 5 of each nozzle (total of 20 nozzles) -

- MAHX04-17S Round Mixer - 4mm ID x 17 Orange Elements - Tapered Outlet - 82mm Length
- MAHX05-17T Round Mixer - 5.4mm ID x 17 Orange Elements - Stepped Outlet - 103mm Length

- MAQ05-16L Square Mixer - 5.3mm ID x 16 Green Elements - Luer Outlet - 83mm Length
- MAQ05-24L Square Mixer - 5.3mm ID x 24 Elements - Luer Outlet - 115mm Length

Specifications for each mixer including length and volume can be found with these part codes. Commodity Code 39269097. Brand TSI/ Adhesive Dispensing Ltd.

All parts are industrial grade safe for use with manual, pneumatic or electric dispensing equipment. All plastics are silicone-free materials supplied in sealed packs with labels and batch codes. All items ship direct from stock.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £11.80 Exc VAT
