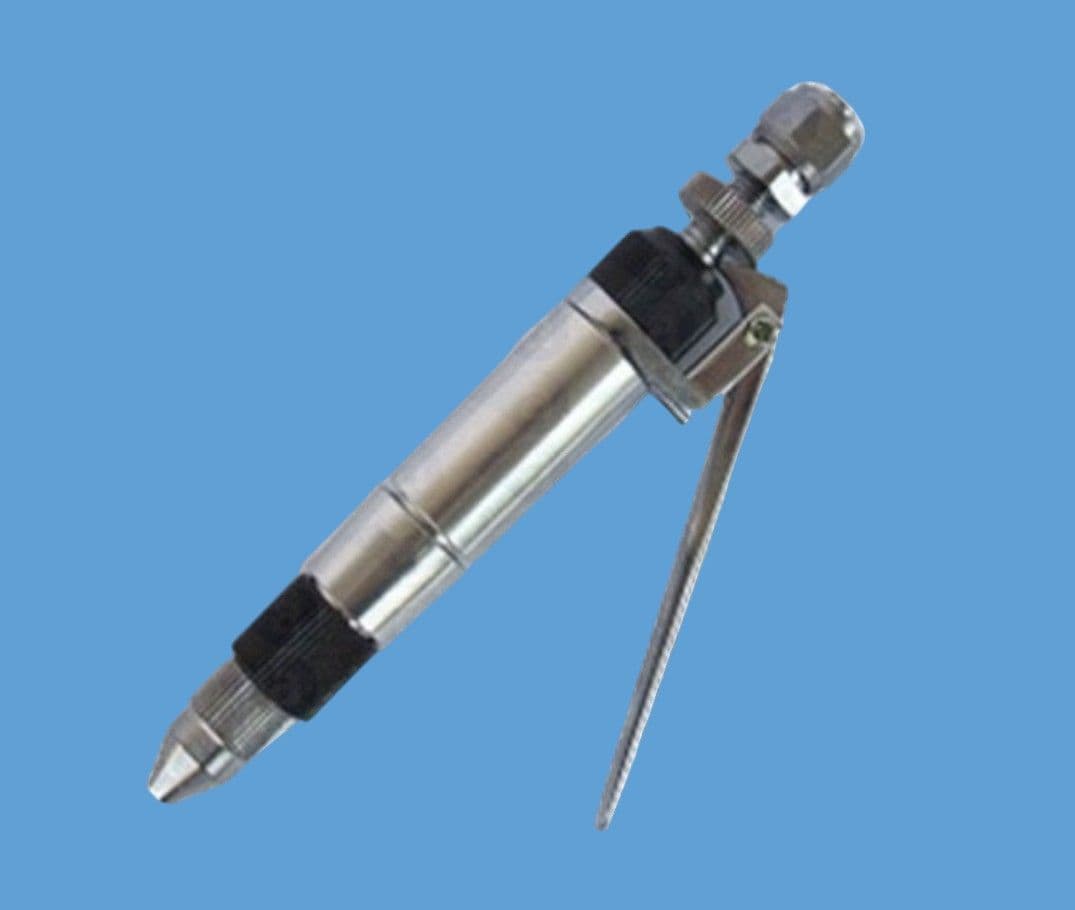

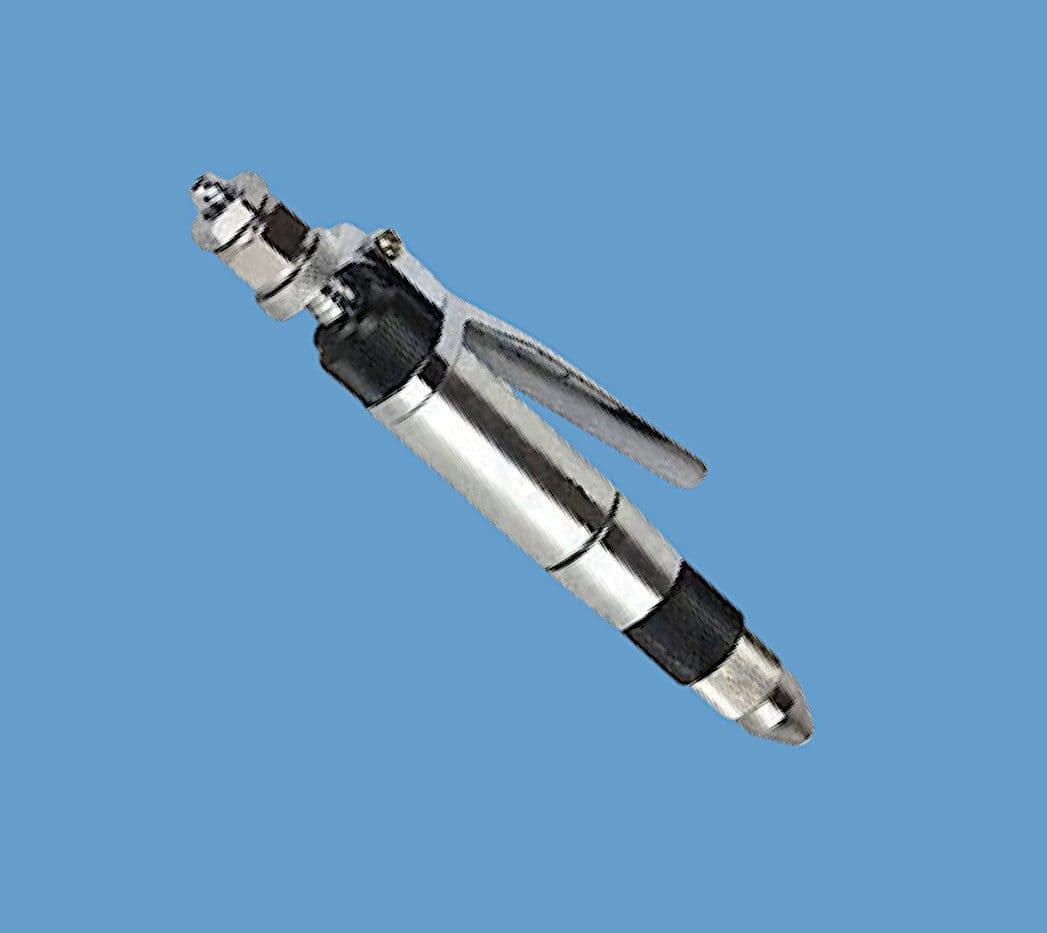

Hand Lever Manual Needle Valve ADL2030

Hand Lever Manual Needle Valve ADL2030
Product Code: ADL2030

Aluminium manual needle valve for deposits of low to medium viscosity fluids
 The ADL2030 hand held Needle Valve provides precise and continuous bead applications for a number of fluids. This low cost hand held valve is excellent for low to medium viscosity fluids such as inks, solvents, UV cure, lubricants, water based glues including PVA.

The hand lever will open the needle thus allowing fluids to flow quickly and consistently; when it is released the needle will go back to the closed position. This low cost unit doesn't require the use of a time/pressure dispenser. Takes a direct fluid feed from pressure pot, cartridge reservoir or syringe barrel via a fluid line feed pipe. Uses any standard luer lock dispensing tips. Supplied with a selection..

Part ID: ADL2030
Size: 150mm L x 18mm Diameter
Weight: 150 g
Wetted Parts: Aluminium/ Stainless Steel
Viscosity Range: 1 - 30,000 CPS
Flow Rate: 1950ml/minute @ 50 psi
Max Fluid Pressure: 60 psi
Material Inlet: 6mm
Material Outlet: Luer lock Valve
Mounting: n/a
Colour: Silver/ black
Warranty: 1 Year

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.



Price: £250.00   Exc VAT
  • Product Brand:Adhesive Dispensing Ltd
  • MPN: ADL2030Lead Time: Ships In 24 Hours - Stock ItemWarranty: 1 Year
