F4000 Advance 5-axis benchtop robot provides both a rotational vertical (B) axis and horizontal (U) axis for applying adhesives and sealants on curved, vertical, or difficult to reach applications.
The F4000 proprietary robot software is user friendly and enables the creation of complex dispensing routines (dots, lines, circles, arcs, and fills) that can be set up and operational in just minutes. The 5-axis simultaneous positioning is also ideal for dispensing around ledges, lips, and inside channels with form-in-place gasketing materials or staking / ruggedizing electrical components on a PCB with a silicone RTV material. The F4000 Advance can be supplied individually or as a complete stand-alone machine system by integrating into a safety enclosure.
MODEL

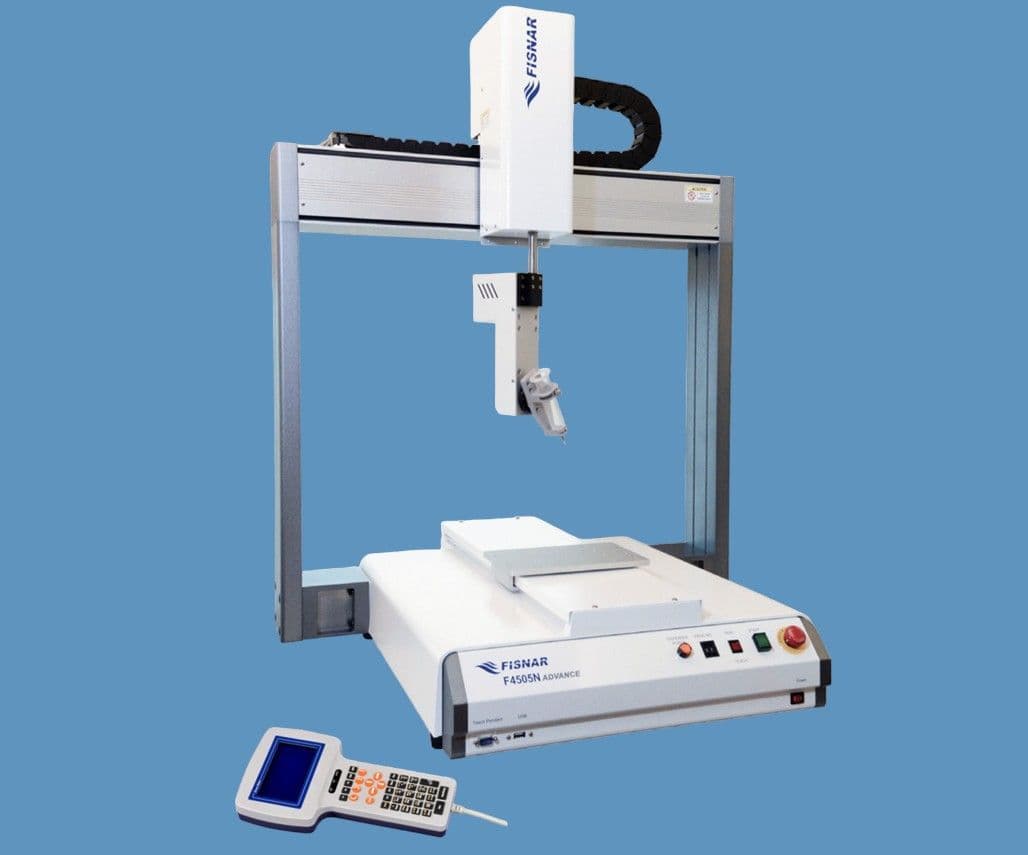

F4505N: 5-axis Robot - 500 x 500 x 150 mm Work Area
FEATURES- Integral tip position adjustment routine
- USB port for data transfer and back-up
- Program selector switch and fluid purge button
- True 3D interpolation and simultaneous motion control
- Modular connectivity design for the simple installation of productivity enhancement tools
- I/O expansion module (sold separately)
- Remote start/stop box (sold separately)
SPECIFICATIONS
Maximum Working Area X/Y/Z: 500 x 500 x 150 mm
Max Working Area: (R) +/- 720°
Max Working Area: (W) +/- 70°
Maximum Speed: (X&Y/Z) 800 / 320 mm / sec (31 / 13” / sec)
Maximum Speed: (R) 720° / sec
Maximum Speed: (W) 360° / sec
Work Load: 10 kg (22 lb)
Tool Load: 1 kg (2.2 lb)
Repeatability: +/- 0.008 mm
Motion Control: PTP & CP
Drive System: 3-phase micro stepping motors
Data Memory: 1-100 programs | 1-50,000 points / program
I/O Signals: 8 inputs / 8 outputs
External Interface: USB / RS232
Power Supply: Auto-switching AC 100 - 240 VAC, 320 watts
Dimensions (W/D/H) : 860 x 752 x 1065 mm
Weight: 69.5kg
Approvals: CE, RoHS, WEE
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
