The BVX-250 is a portable, two-station filtration system for removing workplace fumes, smoke, dust, and vapours. With 99.97% efficiency HEPA 13 filtration, 30-second filter changes, and twice the suction power of previous models.

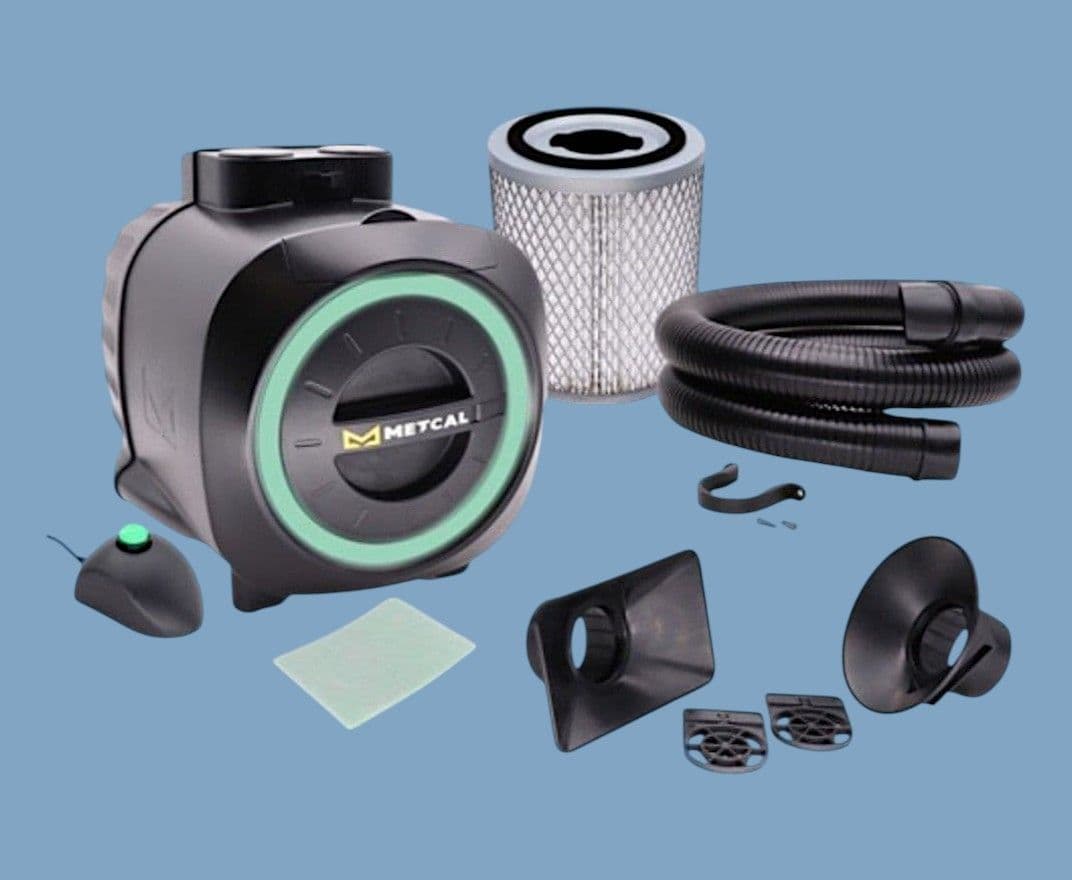

Compatible with previous BVX & Omniflex arms and hoses. The BVX-250-KIT includes the BVX-250 Fume Extractor, HEPA 13/Gas Filter, Pre-Filter, BVX-NOZR rectangular nozzle, BVX-NOZC circular nozzle, and 1 x BVX-ARML arm/hose. * To make this a 2 hose system, order 1 x additional BVX-ARML hose.
Specifications
Max. airflow, free blowing 297 m3/h (175 cfm)
Flow rate 2 x 75 m3/h (45 cfm)
Static pressure 1743 Pa (7” WC)
Noise level (approx.) < 55 dBA (at medium setting)
Voltage 100 – 240 VAC, 1 phase
Frequency 50/60 Hz
Power 150 Watts
Safety compliance UL & CSA, UKCA, KC, PSE, NOM, CE (ISO-14644), TUV
Dimensions W/D/H mm 268 x 400 x 320
Dimensions W/D/H inches 10.5” x 16” x 13”
Weight (approx.) 12 lbs. / 5.5 kg
Commodity Code: 84213925
Origin: China
Brand: Metcal
Features and Benefits

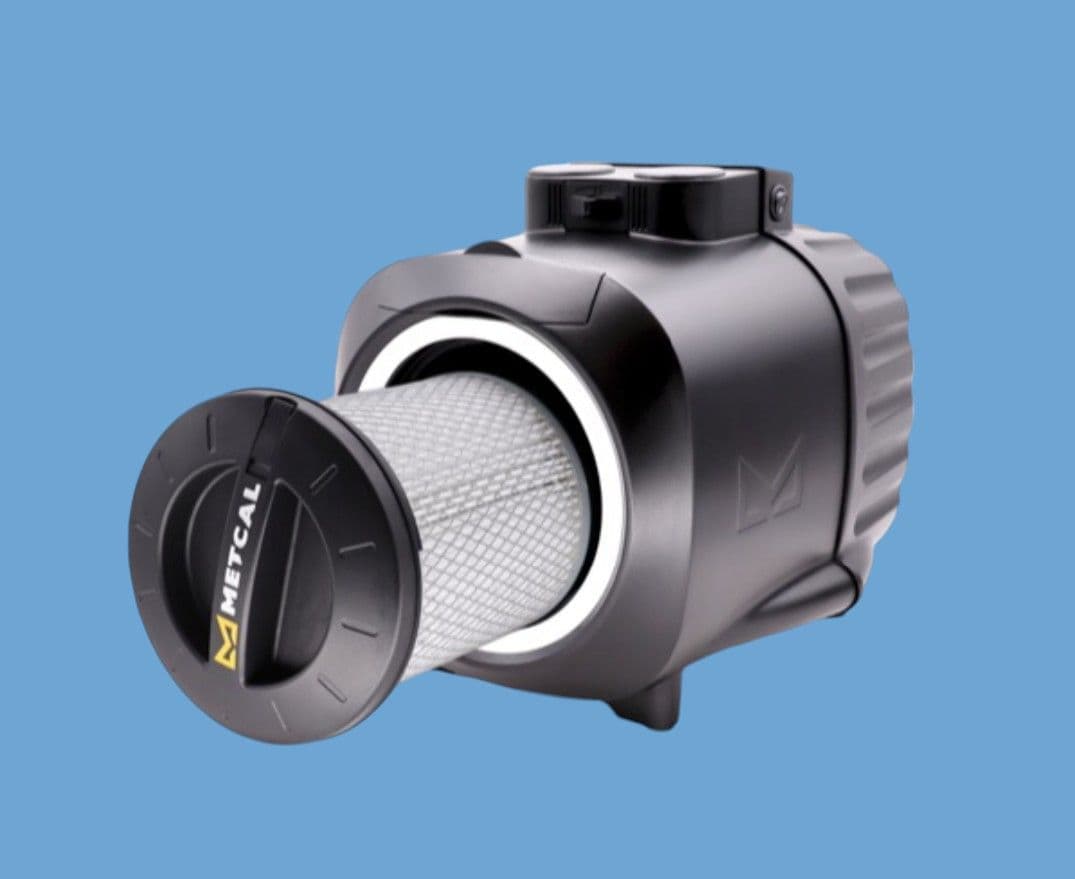

Easy 30-Second Filter Changes

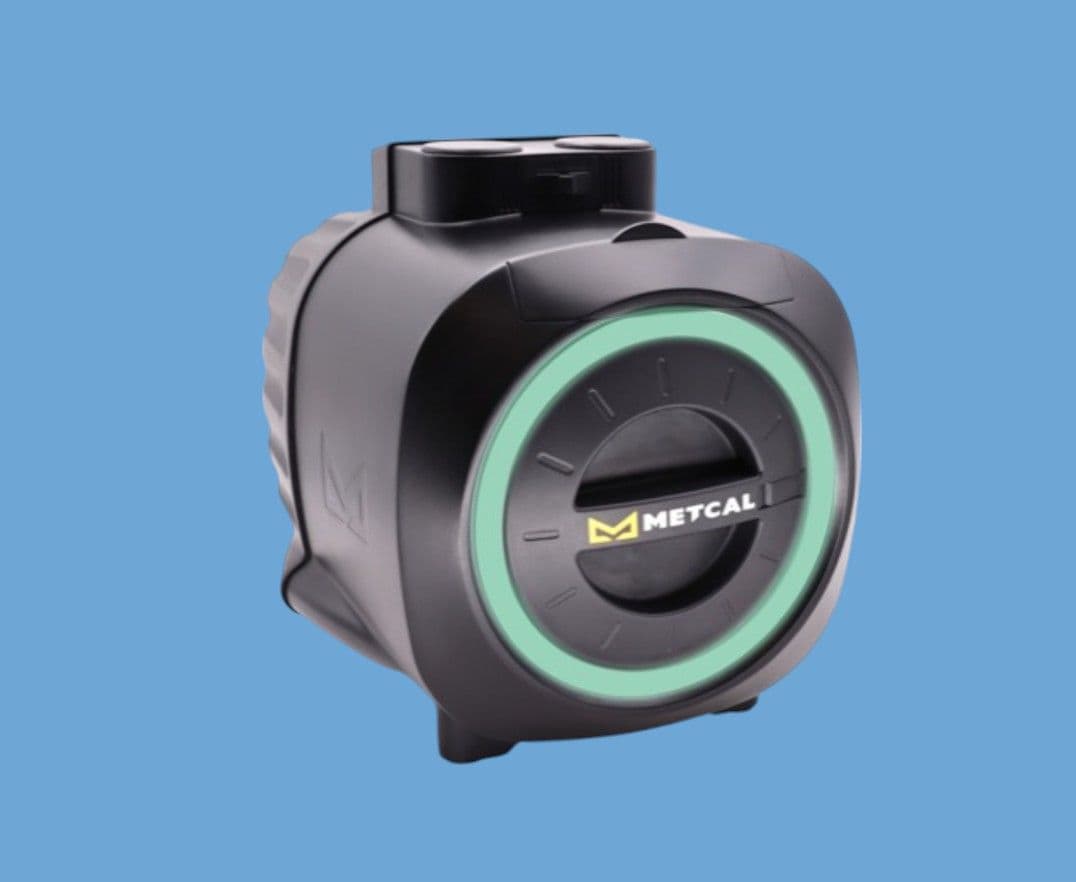

LED Status Ring
2x the Suction of Previous Models
99.97% Efficiency HEPA 13 Filter
Optional Deep Bed Gas Filter (FG-BVX250, sold separately)
Quiet Operation
Three Power Levels
360-degree Rotating/Removable Air Diverter
Communicates with Metcal CV & GT Series Soldering Systems
New Circular & Rectangular Nozzles with Nozzle Filters are available
Compatible with previous BVX & Omniflex Arms and Hoses
Small Footprint for Under or On the Benchtop
Remote Switch Included

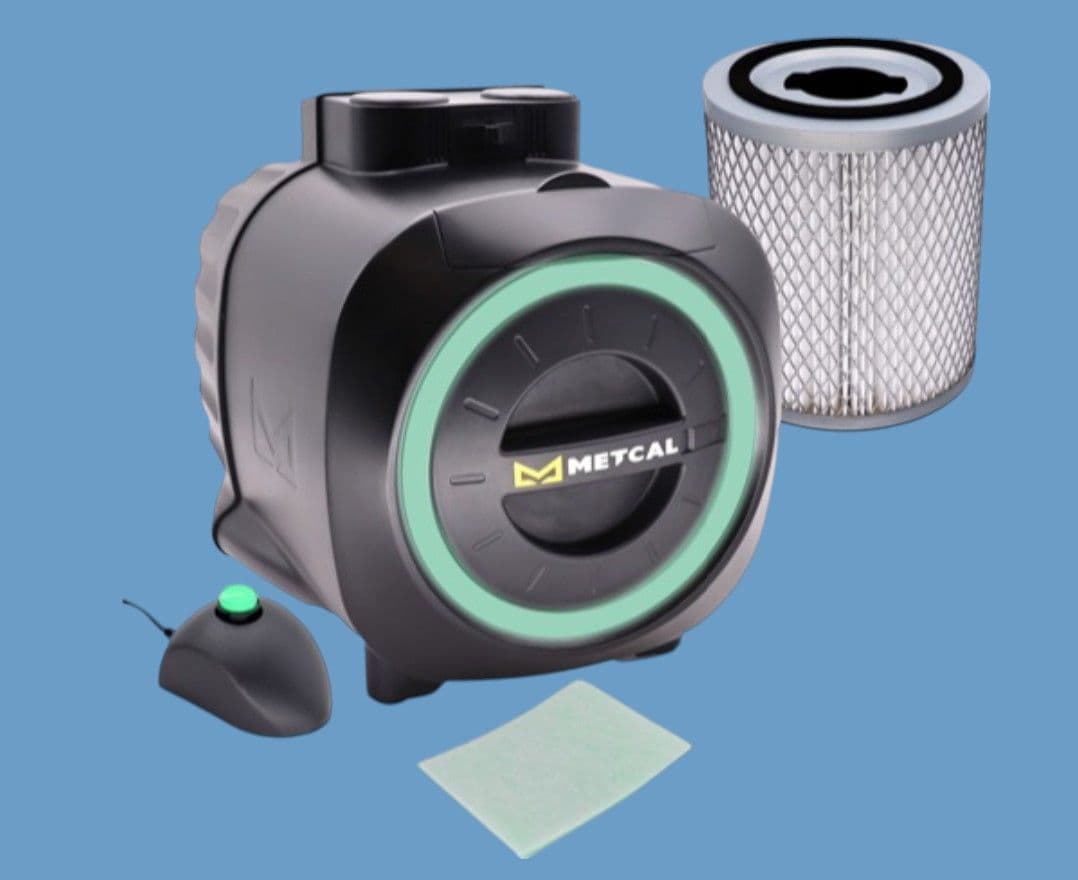

Product Comprises Of:
BVX-250 Fume Extraction Unit
HEPA 13/Gas Main Filter

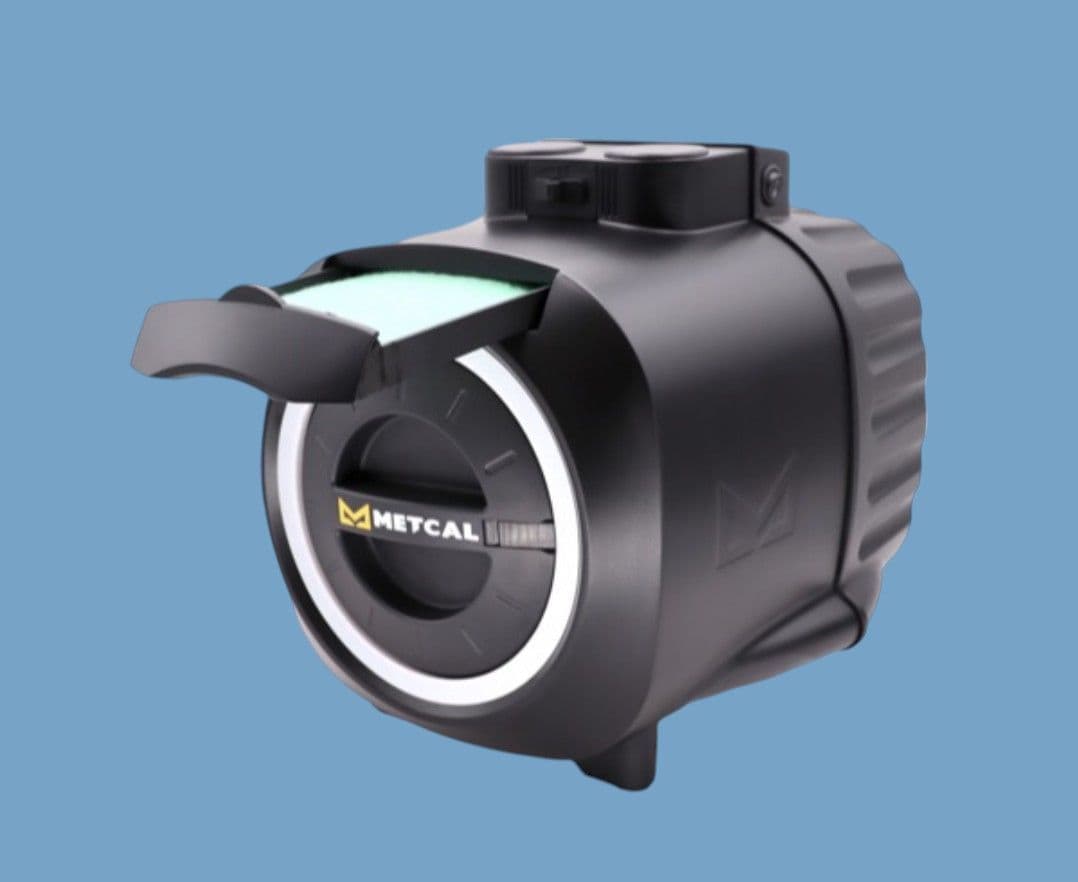

Pre-Filter
Remote Switch
BVX-NOZR rectangular nozzle
BVX-NOZC circular nozzle
BVX-ARML 5 ft. arm/hose
