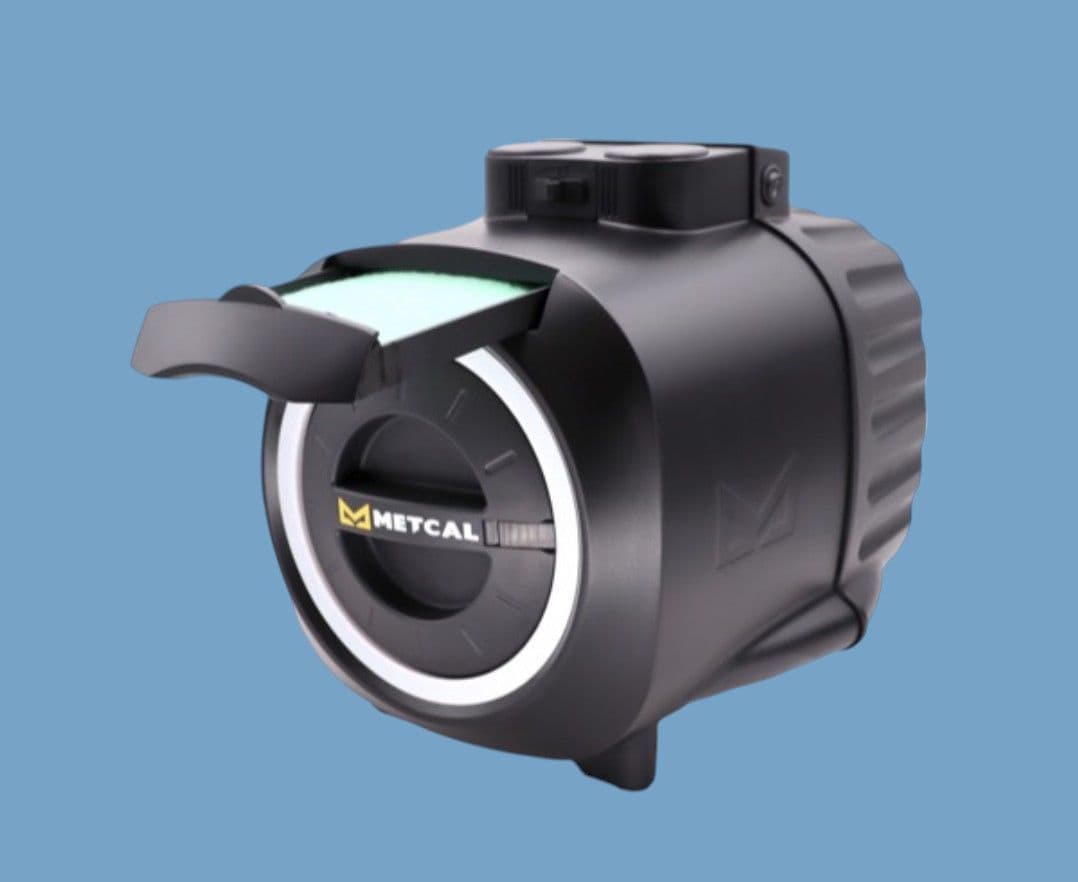

The BVX-250 is a portable, two-station filtration system for removing workplace fumes, smoke, dust, and vapours. With 99.97% efficiency HEPA 13 filtration, 30-second filter changes, and twice the suction power of previous models.

Compatible with previous BVX & Omniflex arms and hoses. This is the main system only and does not include flexible arms. Compatible with previous BVX & Omniflex arms and hoses. Arms/hoses are sold separately.

Specifications
Max. airflow, free blowing    297 m3/h (175 cfm)
Flow rate    2 x 75 m3/h (45 cfm)
Static pressure    1743 Pa (7” WC)
Noise level (approx.)    < 55 dBA (at medium setting)
Voltage    100 – 240 VAC, 1 phase
Frequency    50/60 Hz
Power    150 Watts
Safety compliance    UL & CSA, UKCA, KC, PSE, NOM, CE (ISO-14644), TUV
Dimensions W/D/H mm    268 x 400 x 320
Dimensions W/D/H inches    10.5” x 16” x 13”
Weight (approx.)    12 lbs. / 5.5 kg
Commodity Code: 84213925
Origin: China
Brand: Metcal

Features and Benefits
Easy 30-Second Filter Changes
LED Status Ring
2x the Suction of Previous Models
99.97% Efficiency HEPA 13 Filter
Optional Deep Bed Gas Filter (FG-BVX250, sold separately)
Quiet Operation
Three Power Levels
360-degree Rotating/Removable Air Diverter
Communicates with Metcal CV & GT Series Soldering Systems
New Circular & Rectangular Nozzles with Nozzle Filters are available
Compatible with previous BVX & Omniflex Arms and Hoses
Small Footprint for Under or On the Benchtop
Remote Switch Included

Product Comprises Of:
BVX-250 Fume Extraction Unit
HEPA 13/Gas Main Filter
Pre-Filter
Remote Switch

DATA SHEET
