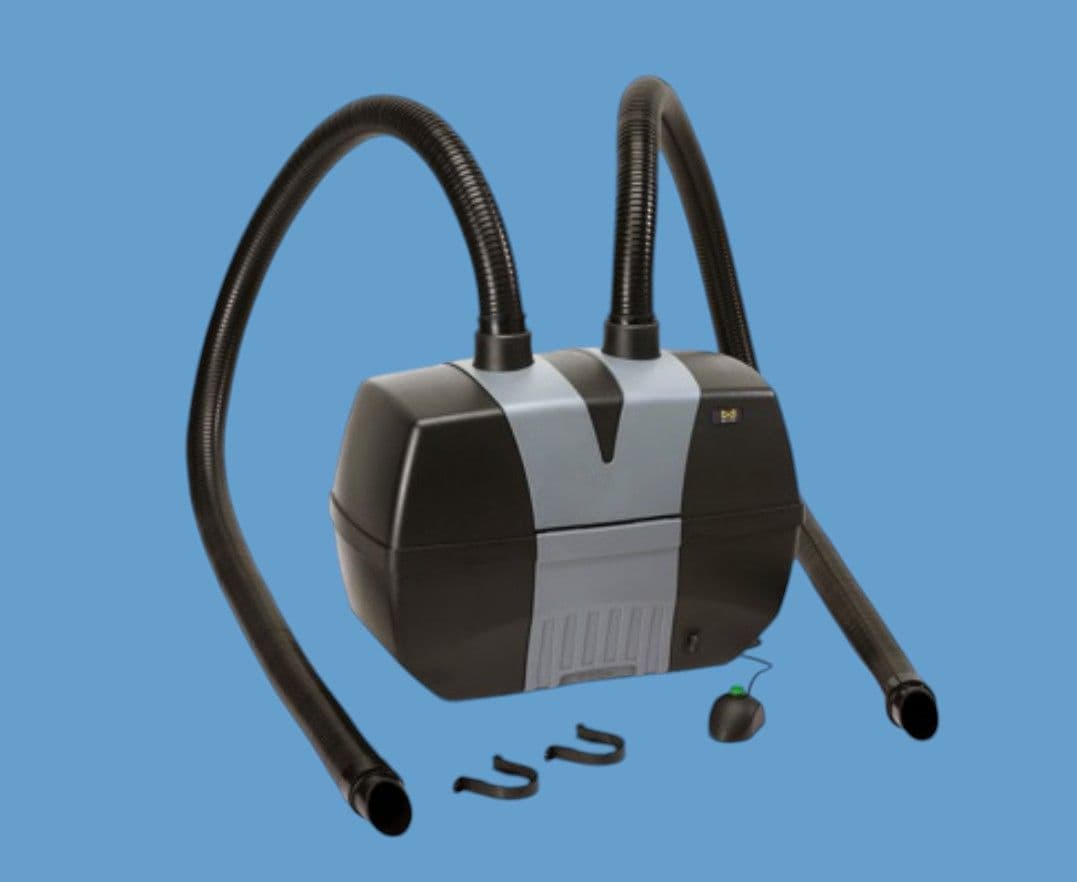

BVX-201-KIT Dual Arm Bench Solder Filtration System

BVX-201-KIT Dual Arm Bench Solder Fume Filtration System Adhesive Dispensing Ltd

Product Code: BVX-201-KIT

Size: 388 W x 508 H x 254mm D Flow Rate: 50 cfm (HEPA) Power Supply: 100-240VAC 50/60 Hz Power Consumption: 85 Watt Noise Level: < 55 dB (A)

Product Number: BVX-201-KIT

Specification :The BVX-201-KIT is a twin station solder fume extraction system giving powerful performance with complete portability. This system should be placed either under or by the side of the work bench. The rate of performance is based on the conditions of the filters. This unit incorporates an audible warning system highlighting to the operator if the extraction level is dropping below the recommended efficiency level. Switching the unit on or off is controlled by a foot switch. The system includes 2 x part BVX-ARM-K2 5 ft. flexible arms.

This system is fitted with:
- Twin Pre HEPA-GAS Filters
- Main Deep Bed Gas Filter
- 2 x BVX-ARM-K2 Arms

The two-arm suction system BVX-201-KIT provides efficient extraction of fume which combines silent operation with an extremely strong fan output of 250 m3/h and an efficient filtration. With a throughput of 0.0085 bar, the BVX-201 offers one of the highest values in the portable and compact class of soldering fume extractor. With a throughput of 0.0085 bar, the BVX-201 offers one of the highest values in the portable and compact class of soldering fume extractor. The extraction includes both a pre filter and main filters which can be replaced independently of one another, so that the maximum service life is increased and the total operating costs are kept low. The main filter is distinguished by an extremely high efficiency of more than 99.5 %. A built-in active carbon filter effectively separates the gases containing solder fumes which develop by heating of solder or cleaning PCB with solvents. Ideal for applications that require a high filtration such as, cleaning of printed circuit boards with solvents or surface coatings on circuit boards.

Features
HEPA / Gas Filter with a deposition rate of 99.97% to 0.3 micron particle size and flux for the protection of the user and the board
Audio indication of filter status for indication of change of filter
Brush-less motor for long durability
Wired remote control for comfortable start-up operation of the system

Part ID: BVX-201-KIT
Flow Rate: 52 x 75 m3/hr (45 cfm)
Noise Level: <55 dB (A)
Size H/W/D: 20" x 10" x 15.3"
Power Supply: 100-240VAC 50/60 Hz
Power Consumption: 85 Watt
Weight: 10 kg
Warranty: 1 Year
CE Certified
Commodity Code: 84213925

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £674.00 Exc VAT

Product Brand:Metcal
Lead Time: 2-3 WeeksWarranty: 1 Year
