The BV1000DFW offers unrestricted front and side access enables applications needing complex and in-depth operator involvement. Downward airflow in the chamber protects the operator and provides protection from fumes, vapour and particulate by drawing air through the stainless steel perforated work surface, ensuring compliance with COSHH regulations.
The BV1000DFW is our most popular down flow workstation for laboratories thanks to its high performance and affordable price. This unit provide a robust fume extraction solution for students, offering a wide open face area for unhindered operation, making it perfect for the classroom environment.
How Does the BV1000DFW Operate?
Place onto a desk, bench or trolley and then simply plug in and switch on. This compact unit allows for incredibly simple operation and takes up minimal worktop space thanks to its compact 1000mm width.
Once operational, the strong downward airflow forces fumes, smoke, odours and associated particulates down through the base of the unit. Using highly efficient filtration, the hazardous substances are completely removed before being released back as clean, safe to breathe air.
What can the BV1000DFW Science Laboratory Extraction System be used for?
These units are designed predominantly for science laboratory and science classroom cleanliness and for immediate operator protection from concentrations of airborne contaminants.
If you’re uncertain this is the correct solution for your laboratory requirements please contact us for advice on the choice of machine for any given situation.

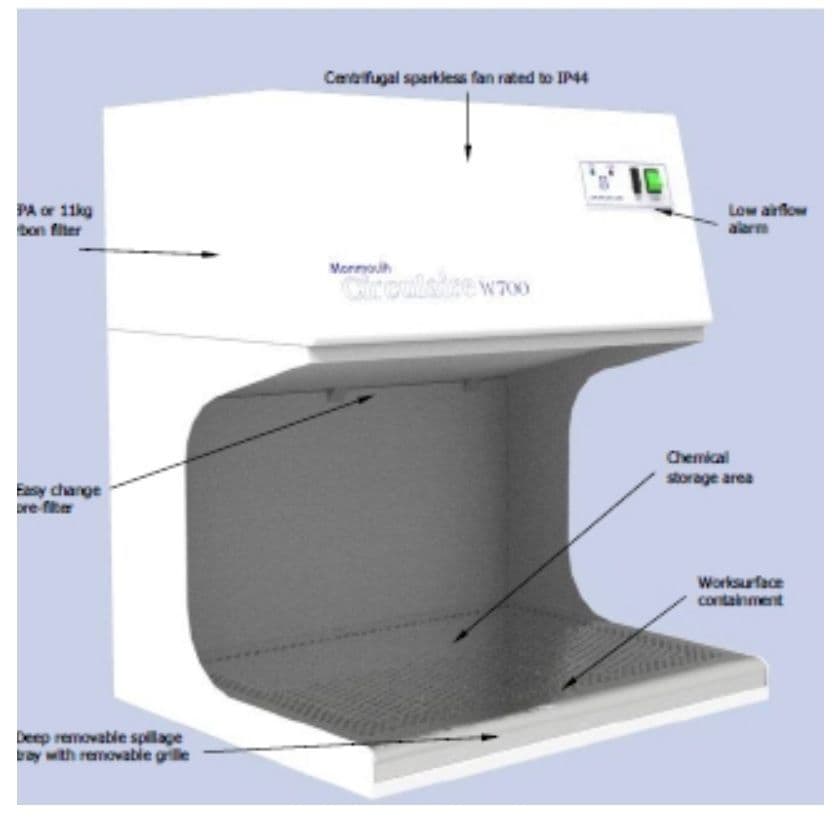

Key Features;
Large unhindered work area
Excellent illumination of the working area
Fume containment with a range of large capacity (2 x 11kg in W1000) carbon filters or particulate containment with HEPA filter
Low airflow monitoring with visual alarm system
Easy change pre-filters
Deep stainless steel removable spillage tray for easy cleaning
Acoustic damping to ensure near silent running
Robust construction with corrosion protection
Large area to the rear of the working area provides for the storage of chemicals
Compact design allows the unit to be installed virtually anywhere
Specifications:
Weight: 55 kg
Dimensions: External: 1000x600x840 mm (WxDxH) Internal Internal: 996x540x400 mm(WxDxH)
Description: Fan Motor – Epoxy Powder Coated Zintec Stainless with 316 stainless steel resistant work surface tray – Corrosion protected -Easy Change Pre Filters – 2x HEPA filtration (if fitted) – 2x11kgs Carbon filter (if fitted) treated for specific applications – Illuminated Work area – sealed electronics isolated from air-stream – visual low airflow alarm
Fan Motor Spec. : 240v 50hz – 300W or 110 60Hz – 400W
Filters: Main Filters – 11Kgs Treated Activated Carbon – or HEPA Particle Filter – Electrostatic Pre Filters
Noise Level LAeq dB(A): 57db(A) approx.
BV1000DFW in a School Science Laboratory
BV1000DFW is often purchased by School Science Departments as a station for fume control as it provides a none disruptive workstation environment for science classroom experiments. Simple to use and incredibly easy to clean, the BV1000DFW ticks all the boxes for the GCSE and A Level Curriculum.
Filter Information for the BV1000DFW
With a wide choice of activated carbon and HEPA filter types available, Downflow Workstations are suitable for many different laboratory, industrial and forensic applications. If you’re not sure which filters you require for your applications, please contact our support team who will be more than happy to help.
Warranty Information
This cabinet is covered by a superb industry-leading 5-year warranty. This warranty includes parts (not consumables), labour and where applicable, covers repair at your (UK mainland) premises.
Demonstrating adequate control of the risks to the health of employees students and the general public, from dusts, powders, mists, fumes and vapours is the fundamental requirement of the Control of Substances Hazardous to Health (CoSHH). For LEV information for employers visit the HSE website.
