Analog Timed Dispenser 0-100 psi Model TS9150-KIT

Analog Timed Dispenser 0-100 psi Model TS9150-KIT Adhesive Dispensing
Analog Timed Dispenser 0-100 psi Model TS9150-KIT Adhesive Dispensing Analog Timed Dispenser 0-100 psi Model TS9150-KIT Adhesive Dispensing Analog Timed Dispenser 0-100 psi Model TS9150-KIT Adhesive Dispensing Analog Timed Dispenser 0-100 psi Model TS9150-KIT Adhesive Dispensing
Analog Timed Dispenser 0-100 psi Model TS9150-KIT
Product Code: TS9150-KIT

0-100 psi air + vaccum suckback use with all fluids. 0.01-31 sec timer repeat dots or beads.
Bench top dispensing systems for the controlled application of watery liquids to thick pastes. Analog timer with adjustable air regulator and a vacuum suck back to prevent drips. Produce measured amounts or controlled beads of most liquids.

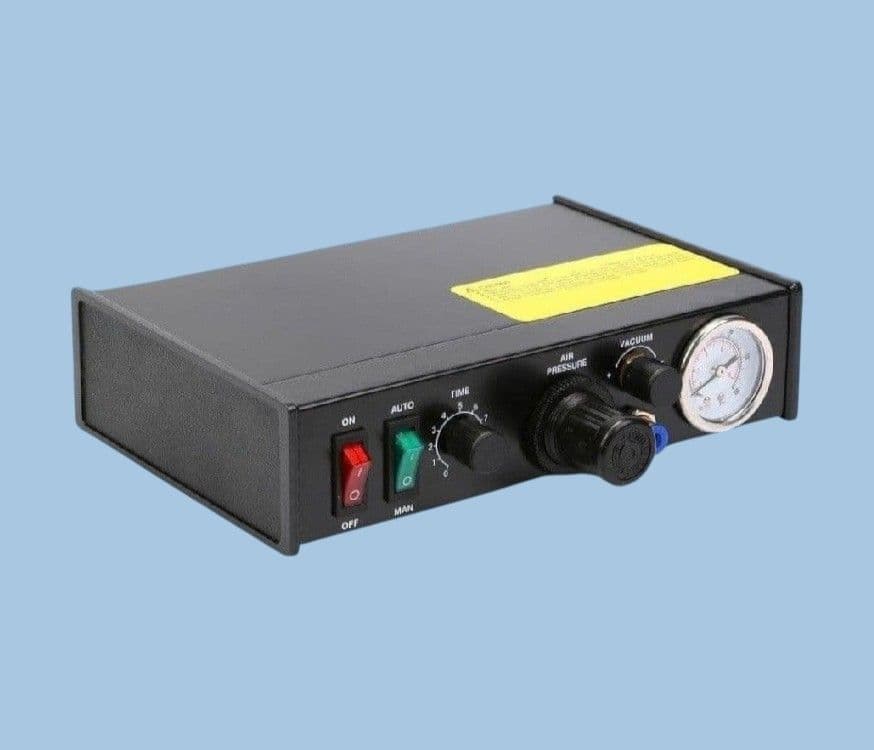

The TS9150 is a high quality analogue fluid dispenser. It’s light weight and compact size makes this the ideal bench top dispensing solution for all your gluing, solder paste application and most other materials liquids and pastes.

Typically used with adhesives thick and thin, RTVs, silicones, solder pastes, greases, threadlockers, anaerobics, primers, single epoxies, liquid fluxes, inks, paints, coatings, resins, sealants, PVA glue, etc.
Its simplified construction and operation makes it easy for even someone that has never used a dispenser before. The unit comes with two modes; manual and pre-set timer. Features an adjustable vacuum suck-back to prevent drips of watery liquids.

Supplied complete with syringe barrel assortment, needle tip kit, adapter assembly hoses, foot switch, finger switch, power cord, instruction guide and manuals. CE certified and covered by a 2 year warranty.
This classic designed benchtop dispenser is simple to use and operate and we offer full technical support for setting up.Supplied with a power cord, foot pedal, finger switch, user guide, barrel adapter assembly with air hose, barrels, pistons and a selection of needle tips.

Dispensers require clean and dry compressed air from most small compressors, a mains factory air supply or nitrogen. With this kit, we supply a 5 micron air filter on the supply air into the dispenser. This will reduce oil, moisture and particles from the air supply. These dispensers will handle many viscosity fluids from liquids to pastes.
The TS9150-KIT accessories supplied with quantities:
Power cord Storage stand (1)
Airline hose with fittings (1)
Foot pedal and cord (1)
Electric finger switch and cord  (1)
5 Micron Air Filter (1)
In-line Adapter Assembly Trap 881-000-000 (1)
30/55cc barrel adaptor assembly (1)
10cc barrel adaptor assembly (1)
5cc barrel adaptor assembly (1)
3cc barrel adaptor assembly (1)
55cc clear barrels (20)
30cc clear barrels (50)
10cc clear barrels (50)
5cc clear barrels (50)
3cc clear barrels (50)
55cc black barrels (20)
30cc black barrels (50)
10cc black barrels (50)
5cc black barrels (50)
3cc black barrels (50)
30/55cc PE pistons (100)
10cc PE pistons (100)
5cc PE pistons (100)
3cc PE pistons (100)
Barrel tip caps (100)
30/55cc orange barrel end caps (100)
10cc orange barrel end caps (100)
5cc orange barrel end caps (100)
3cc orange barrel end caps (100)
Tapered Tip 14 gauge (5)
Tapered Tip 16 gauge (5)
Tapered Tip 18 gauge (5)
Tapered Tip 20 gauge (5)
Tapered Tip 22 gauge (5)
Tapered Tip 25 gauge (5)
Tapered Tip 27 gauge (5)
General Purpose Tip 14 gauge 0.5" (5)
General Purpose Tip 15 gauge 0.5" (5)
General Purpose Tip 16 gauge 0.5" (5)
General Purpose Tip 18 gauge 0.5" (5)
General Purpose Tip 20 gauge 0.5" (5)
General Purpose Tip 21 gauge 0.5" (5)
General Purpose Tip 22 gauge 0.5" (5)
General Purpose Tip 23 gauge 0.5" (5)
General Purpose Tip 25 gauge 0.5" (5)
General Purpose Tip 27 gauge 0.5" (5)
General Purpose Tip 30 gauge 0.5" (5)
General Purpose Tip 32 gauge 0.25" (5)
General Purpose Tip 34 gauge 0.25" (5)
Full Boxed Tip Kit with Polypro, Angled (145)
Technical Details:
Timer: 0.01 - 31 seconds or continuous mode
Output Pressure: 1-100 PSI
Input Pressure: 80-100 PSI
Size: 210 x 241 x 70 mm
Weight: 2.1 kg
Cylce Rate: Up to 600 cycles/ minute
Timer Repeatibility: +/- 0.1%
Input Voltage: 110/220V AC
Warranty: 2 Years
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Price: £585.61   Exc VAT
  • Product Brand:ADL
  • MPN: TS9150-KITMax Pressure: 100 psiVoltage: 110/220V ACLead Time: Ships Within 24 HoursWarranty: 2 Years
