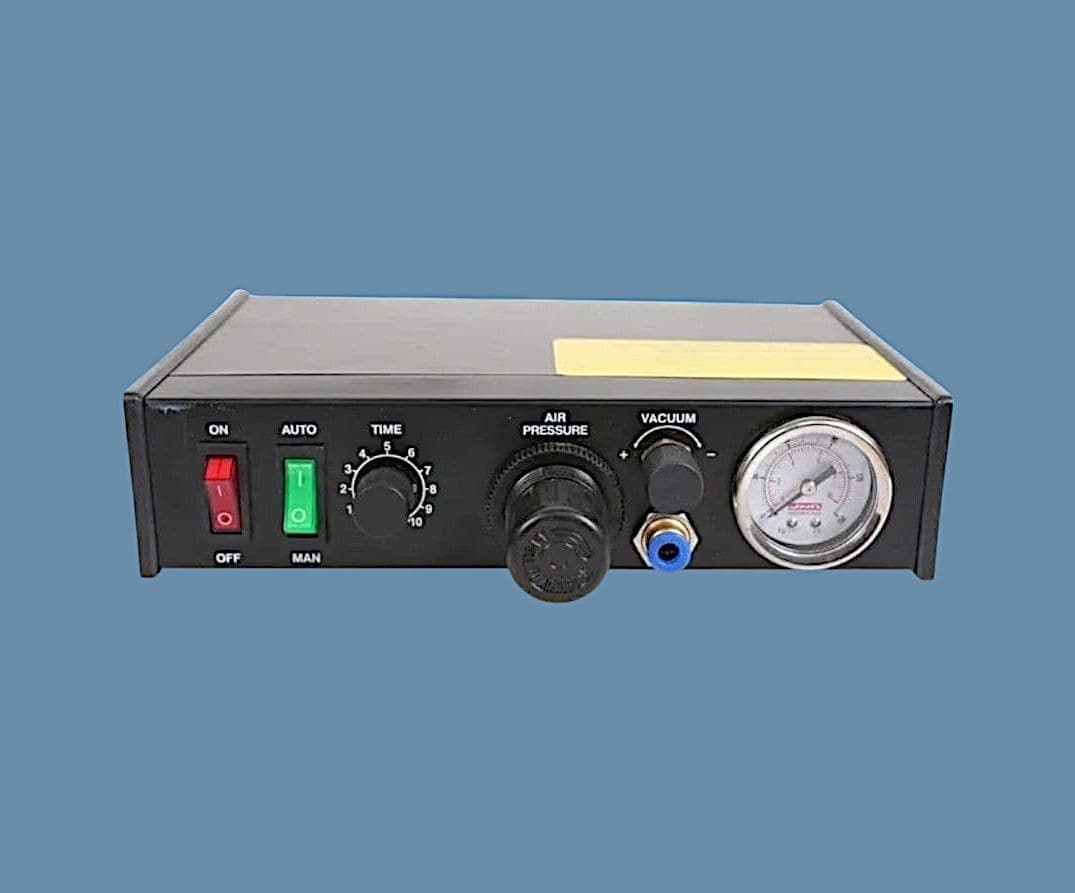

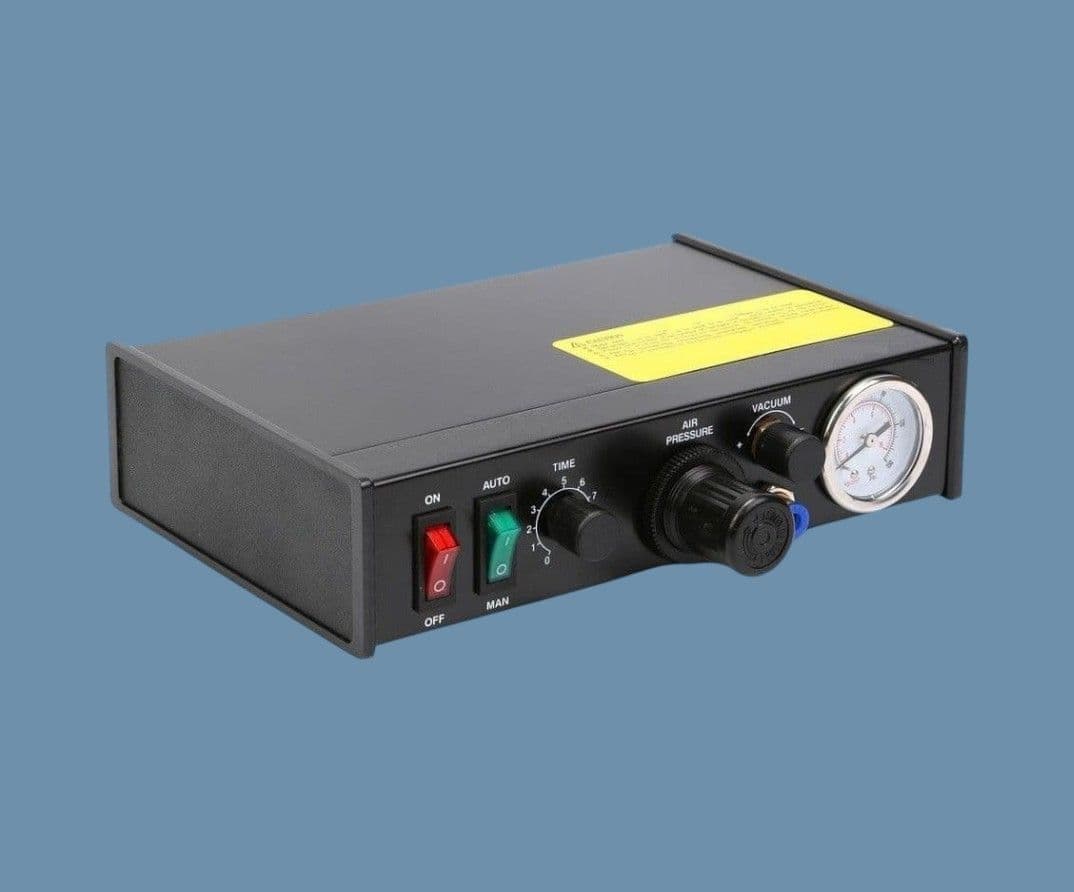

Analog Timed Dispenser 0-100 psi Model ADL100
Product Code: ADL100-220-3cc

0-100 psi air + vaccum suckback use with all fluids. 0.01-18 sec timer repeat dots or beads.

Bench top dispensing systems for the controlled application of watery liquids to thick pastes. Analog timer with adjustable air regulator and a vacuum suck back to prevent drips. Produce measured amounts or controlled beads of most liquids.

The ADL100 is a cost-effective analog timed fluid dispenser. It’s light weight and compact size makes this the ideal bench top dispensing solution for all your gluing, solder paste application and most other materials viscous or not. Typically used with adhesives thick and thin, RTVs, silicones, solder pastes, greases, threadlockers, anaerobics, primers, single epoxies, liquid fluxes, inks, paints, coatings, resins, sealants, PVA glue, etc.

Its simplified construction and operation makes it easy for even someone that has never used a dispenser before. The unit comes with two modes; manual/pre-set timer. Features an adjustable vacuum suck-back to prevent drips of watery liquids.

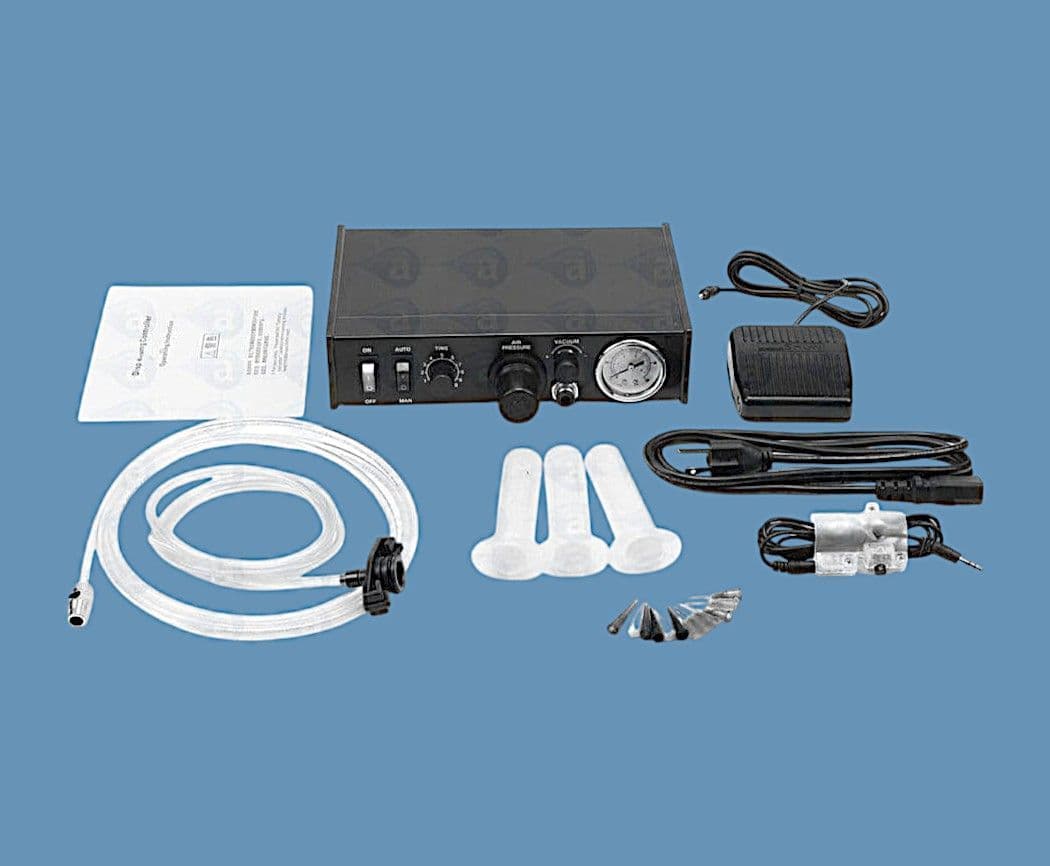

Supplied with a starter kit of parts and a choice of syringe barrel sizes from 3cc, 5cc, 10cc, 30cc or 55cc or for larger volumes a 6oz (177cc), 8oz (237cc) or 12oz (355cc) cartridges. When selecting cartridges, you receive a cartridge retainer body, air cap with hose that connects to the dispenser along with a selection of empty cartridges, plungers, tip adapter and tips.

All machines includes an instruction guide and manuals and are CE approved and covered by a 1 year warranty.
  Available in 220V or 110V versions.  This classic designed benchtop dispenser is simple to use and operate and we offer full technical support for setting up.

Dispensers require clean and dry compressed air from most small compressors, a mains factory air supply or nitrogen. We recommend the use of a 5 micron air filter on the supply air into the dispenser. This will reduce oil, moisture and particles from the air supply. The ADL100 will handle most fluids from watery liquids to thick pastes.
Technical specifications
Control:                                         Pneumatic and electric
Operating model:                            Timer control by volume & air pressure
Suck-back function:                         Vacuum device
Cycle initiate:                                  Foot pedal or finger switch
Dispense time display:                      None
Pneumatic pressure display:              Analog display
Vacuum display:                              None
Dispensing time:                              0.01-18 seconds
Repeatability:                                 +/- 0.05%
Frequency:                                     600 times/minute
Air output:                                       0 - 100 psi
Air input:                                         80-100 psi


Basic specifications:
Standards:                                        CE approved
Power Input voltage.                         220V AC
Weight:                                           1.47 kg
Dimensions:                                     235 x 192 x 63 mm
Operating voltage                             24V DC

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


Price: £179.50   Exc VAT
  • Product Brand:ADL
  • MPN: ADL100-220-3ccLead Time: Ships 24 HoursKit Size: 3cc
