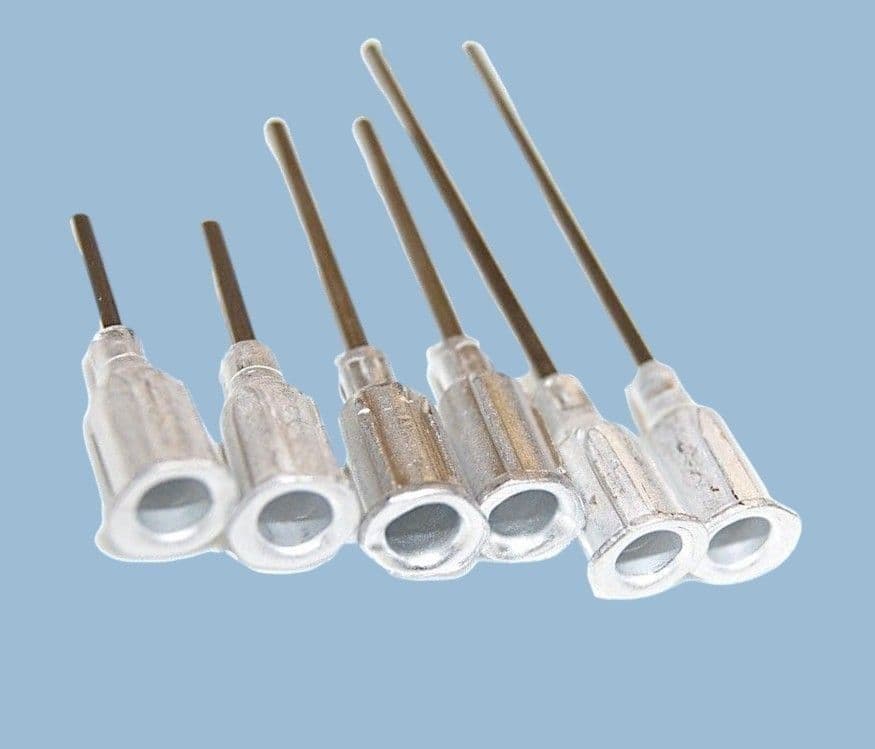

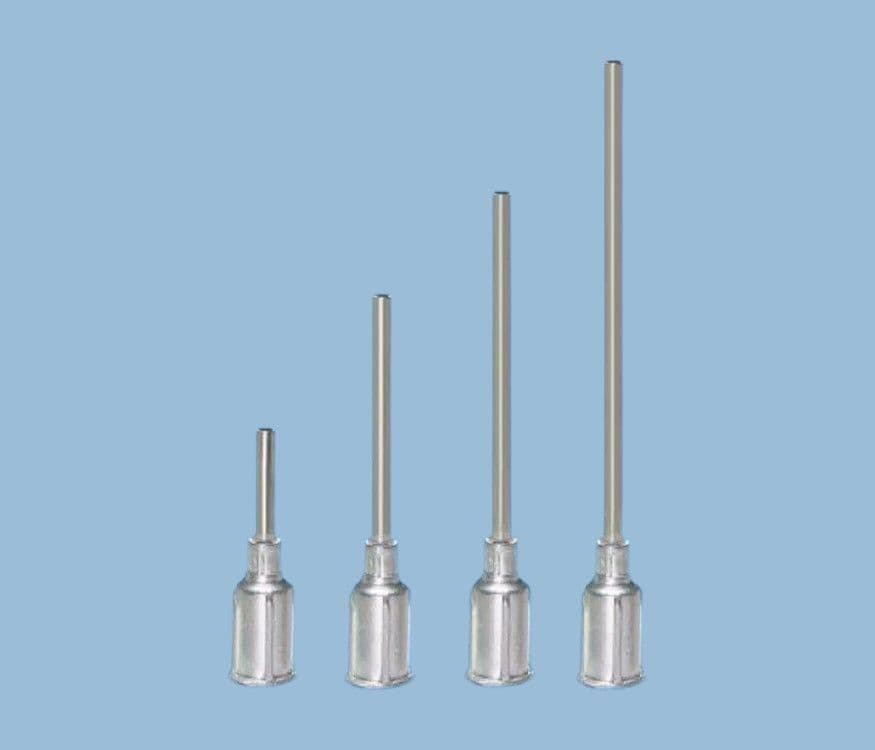

Blunt end aluminium needle tips with burr free precision tube. Evaluation kit in gauge sizes 14, 15 and 16 and with tube lengths of 0.5", 1.0", 1.5" and 2.0".  This kit contains an assortment of each type tip. Total of 70 tips supplied.

Precision aluminium hubs to burr-free stainless steel shafts.

This tip suits the most aggressive of fluids, chemicals, solvents and many adhesives and gels as the hub to shaft is crimped and therefore solvents will not affect a glue bond. Standard luer lock twist fit hub for attachment to all syringes or valves.

Supplied in a sealed box.

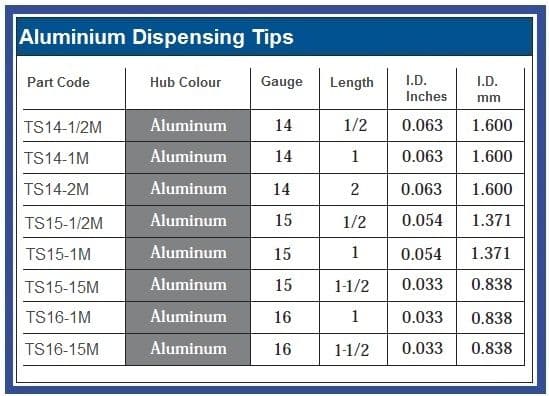

Gauge sizes - 14, 15, 16
Tube Lengths - 0.5", 1.0", 1.5", 2.0"
Inner Diameters - 1.6mm, 1.371mm, 0.84mm
Hubs: Aluminium
Cannulas: Stainless Steel
Rating - Safe for use to 100 psi
Colour - Silver
Details - Silicone Free
Commodity Code: 90289090

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
