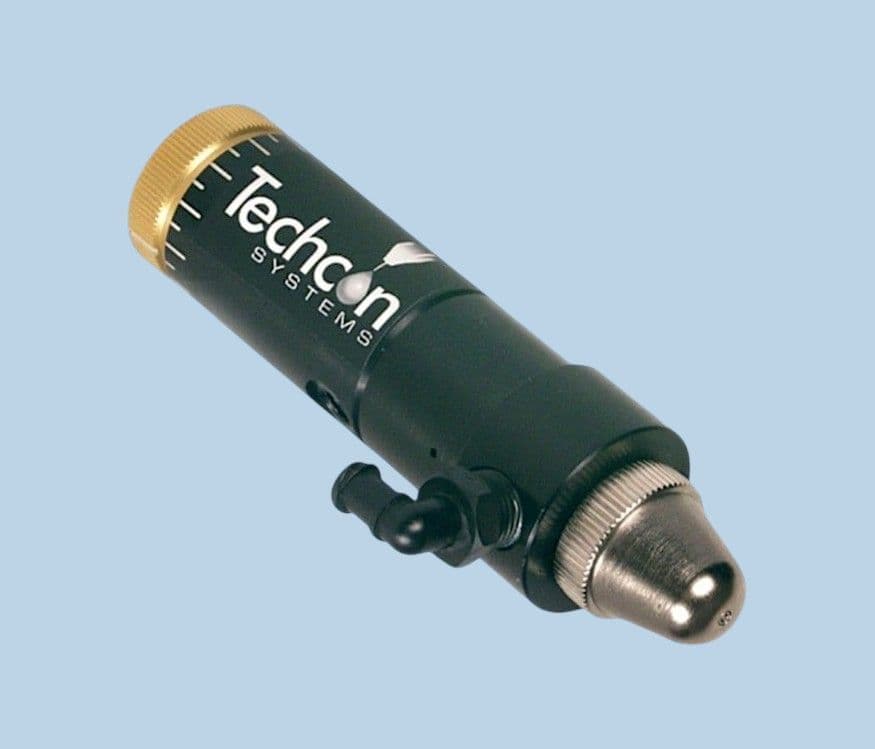

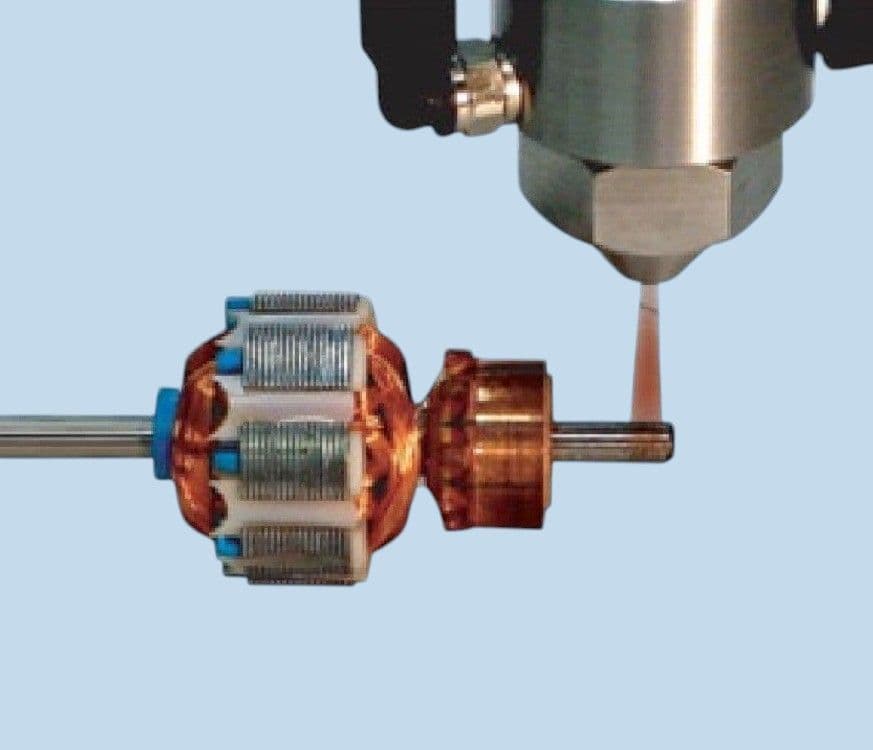

The TS5520 spray valve provides precise, consistent coating of low to medium viscosity fluids, including lubricants (oil and grease), activators and inks. Micro-litre to millilitre amounts can be reliably dispensed in round patterns with diameters ranging from 1/4 to 3.0 inches (6.35 to 76.2 mm). The combination of adjustable fluid flow, adjustable nozzle air and post-air cut-off provides excellent spray control.

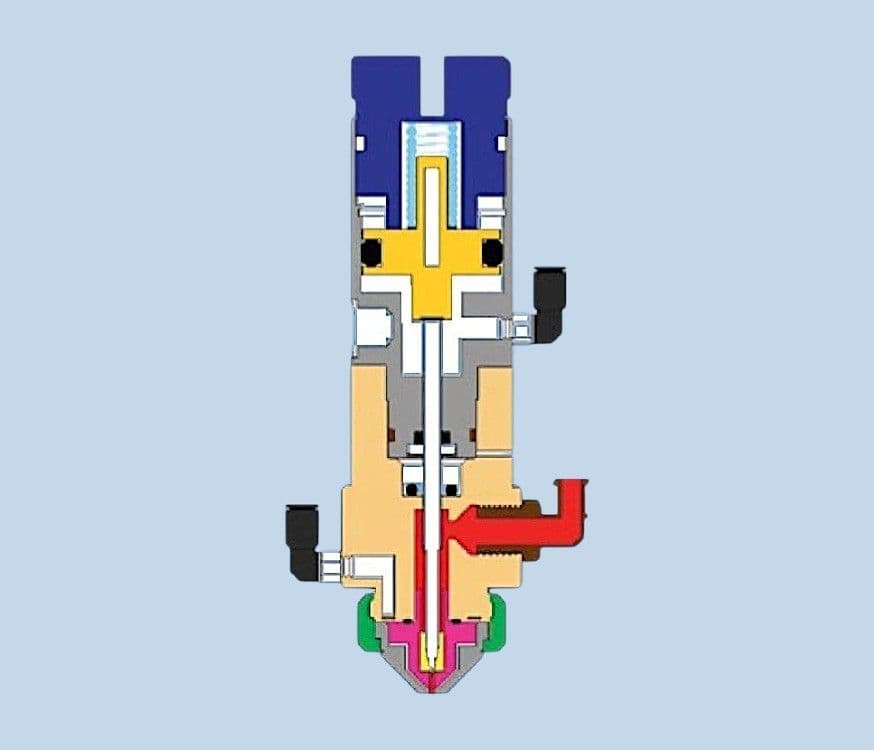

Precision-machined components with spring loaded Teflon® packings ensure many millions of trouble-free cycles. Compact spray valve with round spray pattern nozzle for controlled precision spraying, bonding, marking or lubricating. Spray Valves are designed for precise spray applications of low to medium viscosity materials. An external stroke control makes it easy to fine-tune fluid flow.

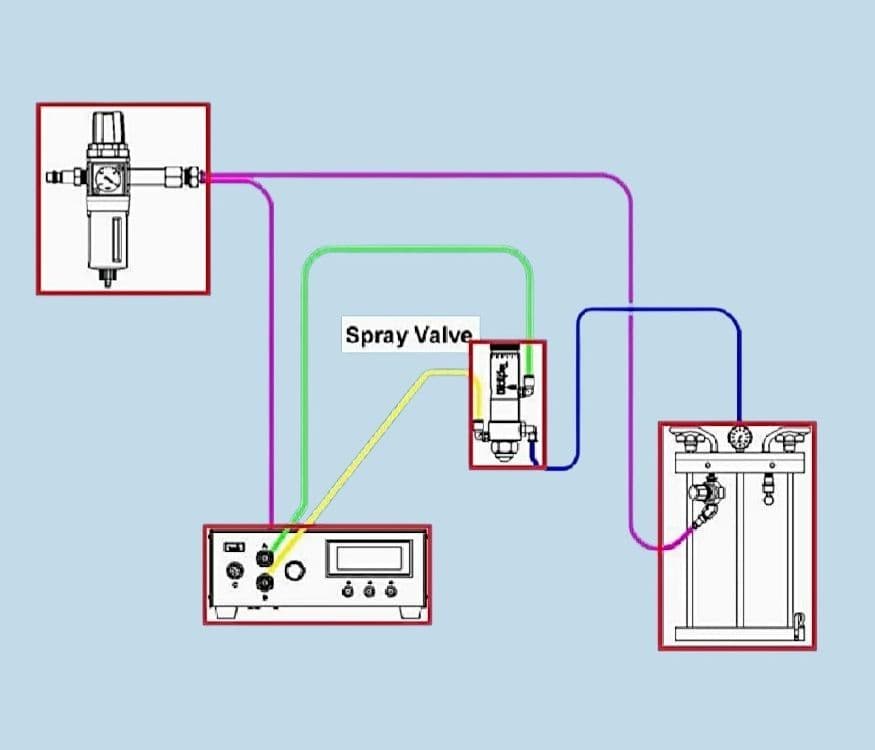

Total control of the spray cycle is provided by adjustable fluid flow and precise control of pre-spray, atomizing air and post-spray with the TS500R controller. Normal maintenance is simple and downtime is virtually eliminated with only one seal to replace

Part ID: TS5520
Materials: Teflon, EPR, anodised aluminium, 303 s/ steel
Size: 107mm L x 28.5mm Diameter
Weight: 0.3lb (136g)
Viscosity Range: 1 - 1,000 CPS
Repeatability: ±0.56%
Cycle Rate: Up to 600 cycles/ minute
Flow Rate (water): 1680ml/ min (water)
Min Shot Size: 0.14 cc / ml
Max Fluid Pressure: 100 psi (6.9 bar)
Activation Pressure: 70 psi (4.8 bar) minimum
Material Inlet: 1/8" NPT
Material Outlet: Spray Nozzle
Mounting: 1/4"-20UNC-2B
Warranty: 1 Year
Commodity Code: 84248940
