All Metal 1" Long Assorted Tip Kit ADSS-1 pk/60

Name: All Metal 1" Long Assorted Tip Kit ADSS-1 pk/60
Brand: Adhesive Dispensing Ltd
Price: 72.00 GBP
Availability: InStock

All Metal Luer Lock Needle Tip Assorted Kit 1

Product Code: ADSS-1

Grade 304 Stainless/Brass. ID: 2.50mm to 0.10mm. OD: 3.30mm - 0.23mm. Tube Length: 1".

Precision blunt end stainless steel tube to nickel plated brass luer lock hub. Use this tip for dispensing adhesives, solvents, glues, primers, activators and many other fluids. Especially useful for aggressive solvents. A blunt end metal tube of 1". Dispensing tips are designed to work with standard syringes and fittings. These tips are fully compatible with most low, medium and high viscosity fluids, adhesives, inks, pastes, gels and lubricants.

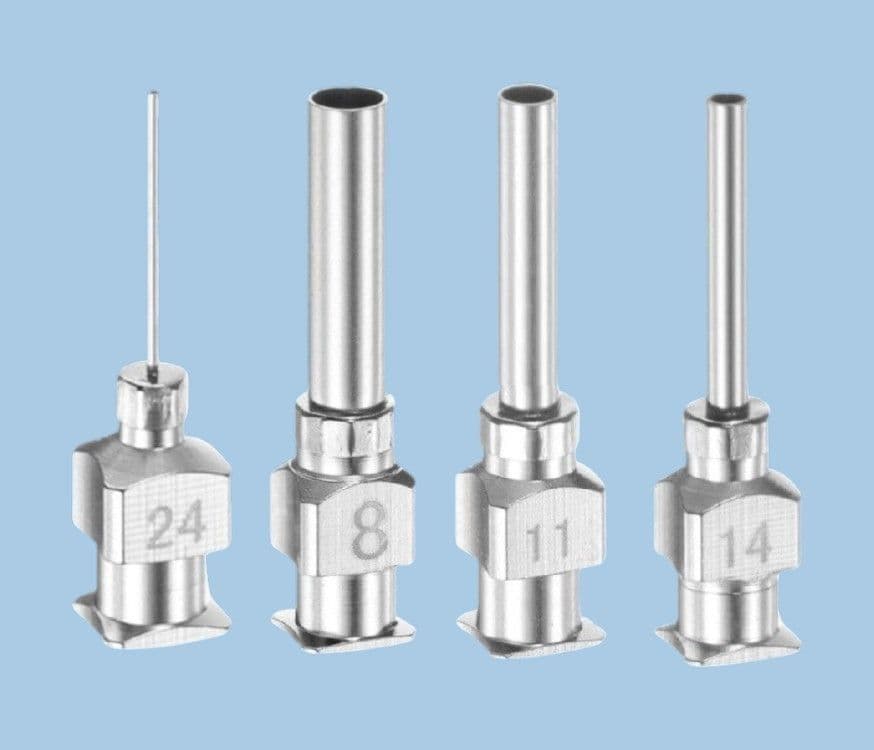

The SS needle series consist of a steel luer lock hub with stainless steel precision shaft. This high quality line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow. Suitable for dispensing most fluids, SMT adhesives and solvents. Industrial grade safe for use to 100 psi. Ideal for use on robot dispensing systems as tips are cut high precision for total consistency. Supplied in a sealed pack of 60 assorted tips.

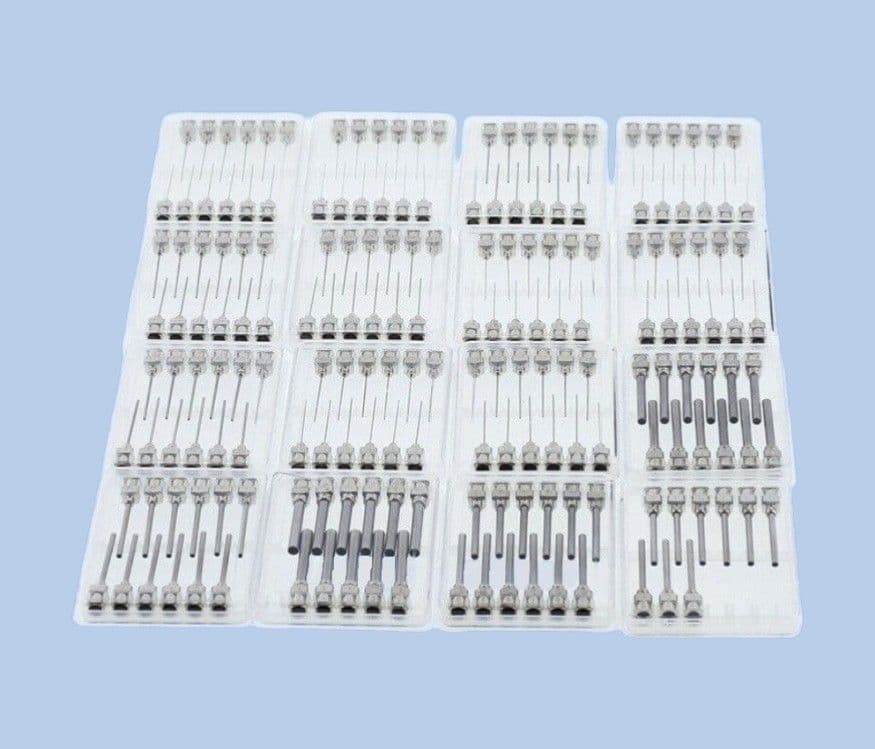

The kit includes (3) pieces of each tip supplied in a boxed kit.

AD10SS-1 (10 Gauge - 2.50mm ID)
AD11SS-1 (11 Gauge - 2.30mm ID)
AD12SS-1 (12 Gauge - 2.18mm ID)
AD13SS-1 (13 Gauge - 1.94mm ID)
AD14SS-1 (14 Gauge - 1.64mm ID)
AD15SS-1 (15 Gauge - 1.38mm ID)
AD16SS-1 (16 Gauge - 1.20mm ID)
AD17SS-1 (17 Gauge - 1.09mm ID)
AD18SS-1 (18 Gauge - 0.91mm ID)
AD19SS-1 (19 Gauge - 0.70mm ID)
AD20SS-1 (20 Gauge - 0.61mm ID)
AD21SS-1 (21 Gauge - 0.51mm ID)
AD22SS-1 (22 Gauge - 0.40mm ID)
AD23SS-1 (23 Gauge - 0.34mm ID)
AD24SS-1 (24 Gauge - 0.31mm ID)
AD25SS-1 (25 Gauge - 0.26mm ID)
AD27SS-1 (27 Gauge - 0.21mm ID)
AD28SS- 1 (28 Gauge - 0.18mm ID)
AD30SS-1 (30 Gauge - 0.15mm ID)
AD32SS-1 (32 Gauge - 0.10mm ID)

Part ID: ADSS-1
Materials: Brass/ Stainless Steel
Colour: Silver
Tube Length: 1" - 25.4mm
Max. Pressure: 100 PSI
Connection: Luer Lock
Brand: Adhesive Dispensing Ltd
Commodity Code: 39174000

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
