Air Operated Vertical Teflon Diaphragm Valve TS5622VT
Product Code: TS5622VT

Diaphragm valve for cyanoacrylates, anaerobics, solvents, primers, inks and liquids

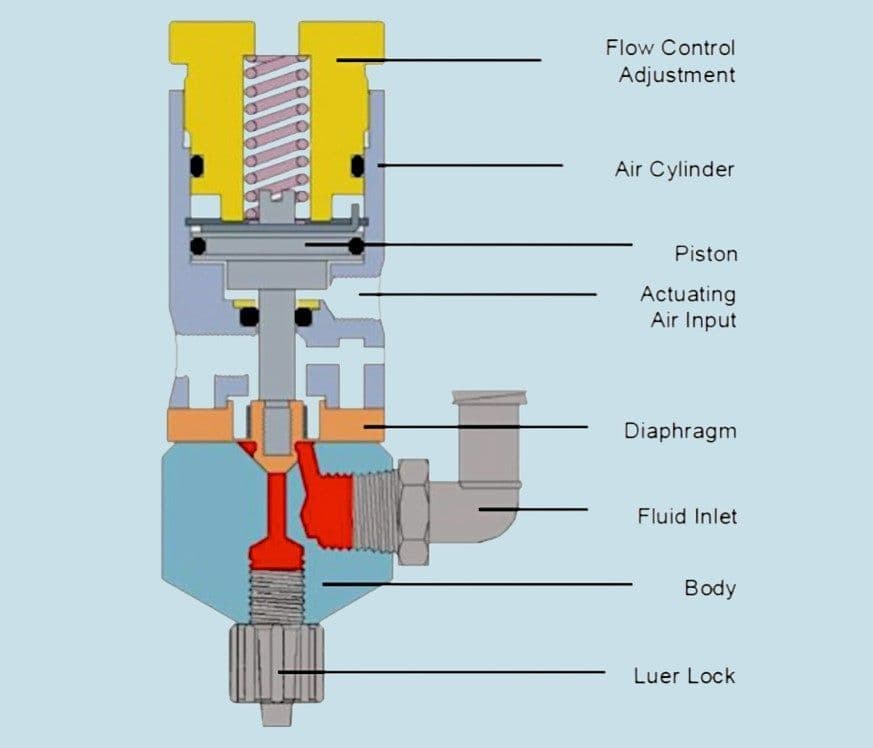

The TS5600 Series dispense valves accurately control the application of most low to medium viscosity fluids without drips. The unique seal-less design incorporates an inert polymer diaphragm that isolates the actuator from the valve. The adjustable open/ close stroke 0.13 to 0.64 mm (0.005" to 0.025") allows for a very fast response with positive shutoff. Wetted components are made of inert plastics.

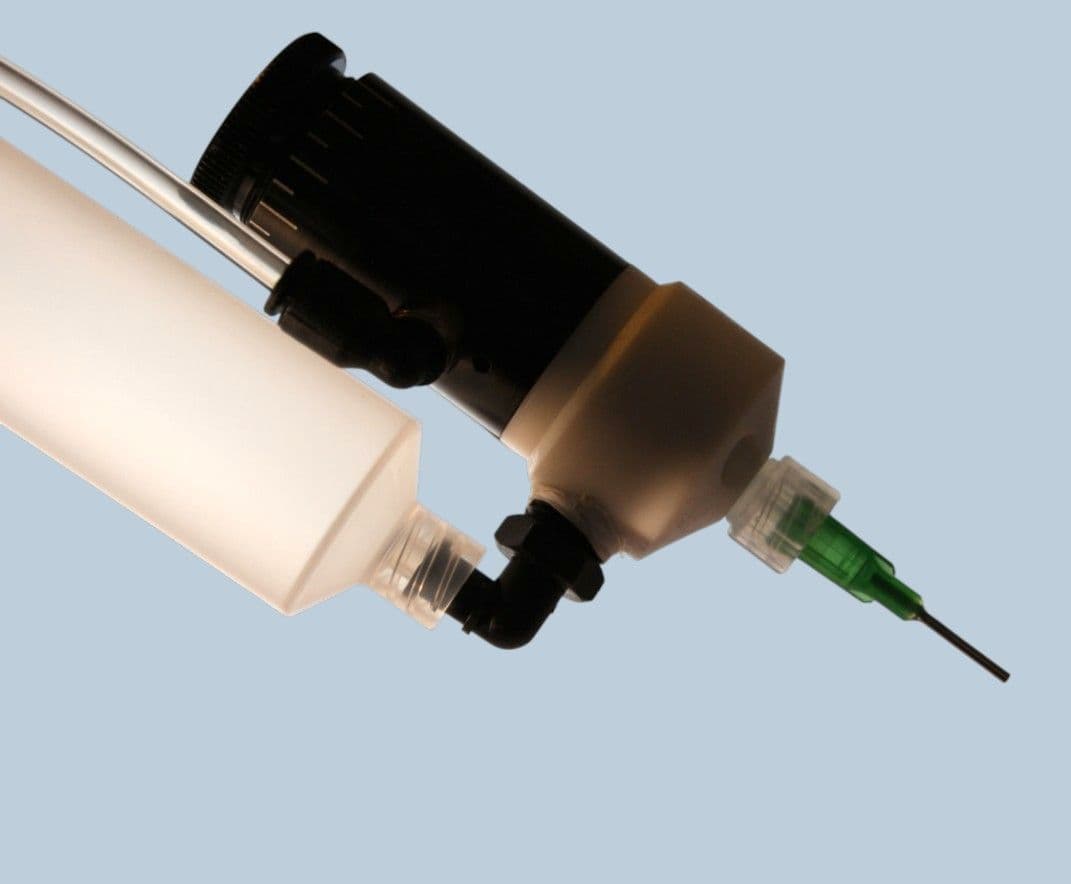

This version has Teflon wetted fluid housing and diaphragm. Valve open time can be as short as 15 milliseconds. Deposit rate can be as high as 500 shots per minute. This valve takes a direct feed from any pressure pot, cartridge or syringe and includes a selection of flexible fluid line tubing and connectors. The compact design allows for easy installation in most areas or it can be bench mounted for hands free operator control.

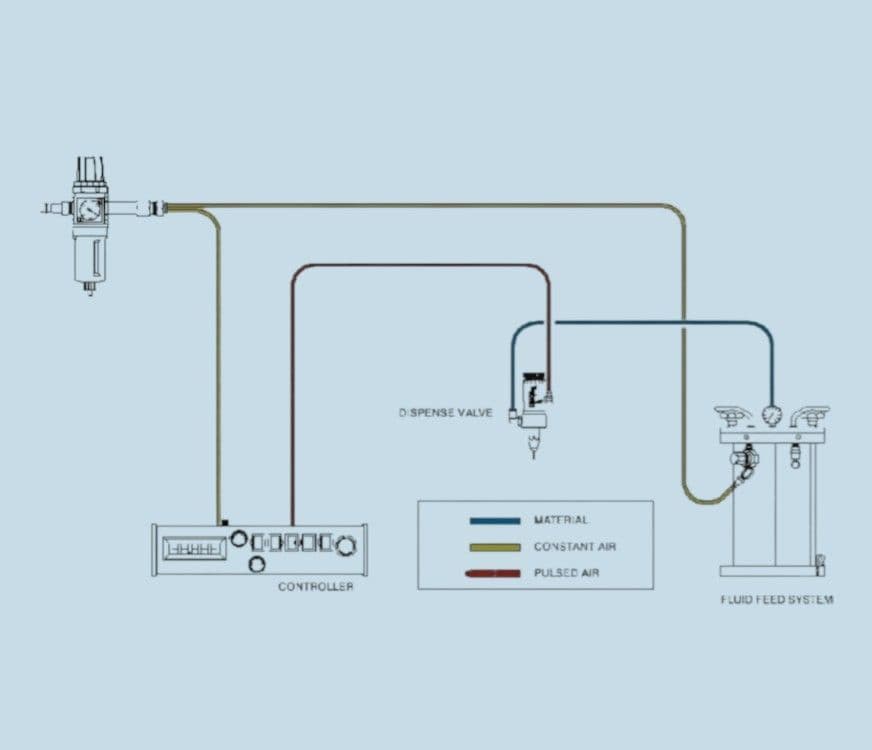

A typical setup for this valve usually includes a digital controller and small pressure pot. Model TS5622VT with Teflon polymer wetted parts is used for dispensing solvents, cyanoacrylates, anaerobics and fluxes. This valve is very simple to operate using a pneumatic dispenser/ controller. Supplied with air hose, input fittings, tip adapter, mounting bracket, tip selection and user guide.

Part ID: TS5622VT
Wetted Materials: Teflon®

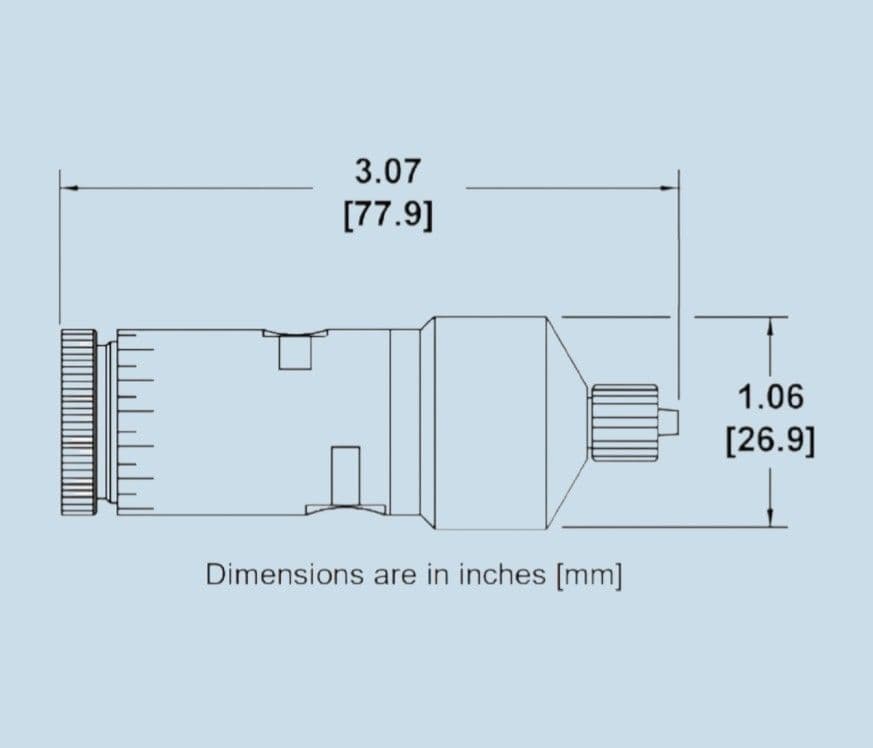

Size: 76mm L x 27mm Dia..
Weight: 118g (0.26lb)
Viscosity Range: 1 - 50,000 CPS
Repeatability: ±0.30%
Cycle Rate: Up to 500 cycles/ minute
Flow Rate (water): 7250ml/minute @ 100 psi
Min Shot Size: 0.0075 cc/ ml
Max Fluid Pressure: 70 psi ( 5 Bar)
Activation Pressure: 70 psi (4.8 bar) minimum
Material Inlet: 1/8" NPT
Material Outlet: 1/4-28 UNF
Mounting: 10-32 UNF
Warranty: 1 Year
Commodity Code: 90289090

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £674.00   Exc VAT
  • Product Brand:TSI
  • Lead Time: Usually Ships 24-72 HoursWarranty: 1 YearMPN: TS5622VT
