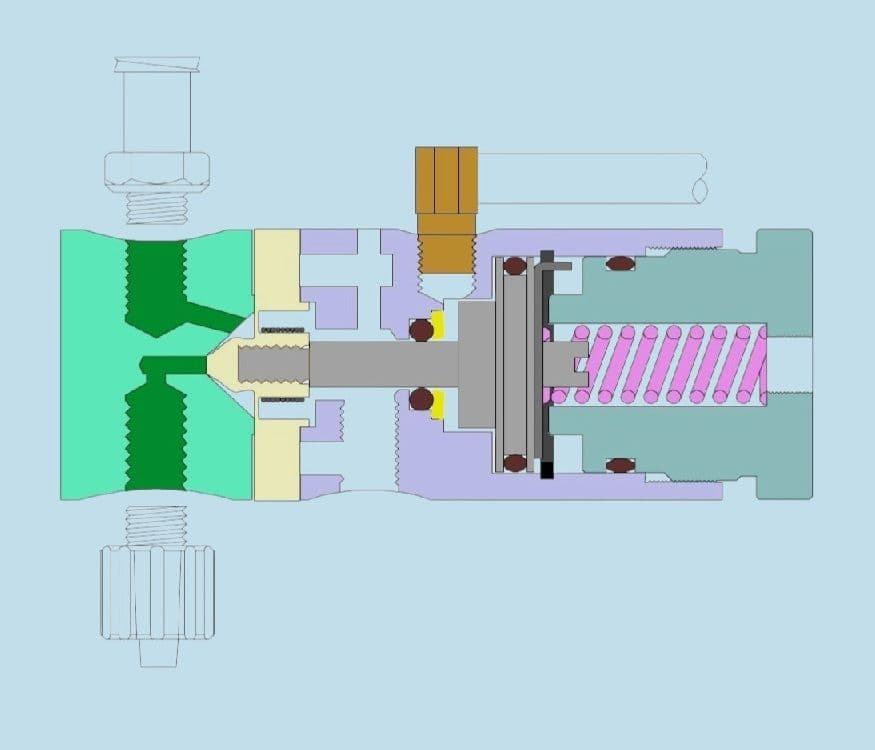

The TS5600 Series dispense valves accurately control the application of most low to medium viscosity fluids without drips. The unique seal-less design incorporates an inert polymer diaphragm that isolates the actuator from the valve. The adjustable open/close stroke 0.13 to 0.64 mm (0.005" to 0.025") allows for a very fast response with positive shutoff.

Wetted components are made of inert plastics. Takes a direct feed from any pressure pot, cartridge or syringe and includes a selection of flexible fluid line tubing and connectors. Valve open time can be as short as 15 milliseconds.

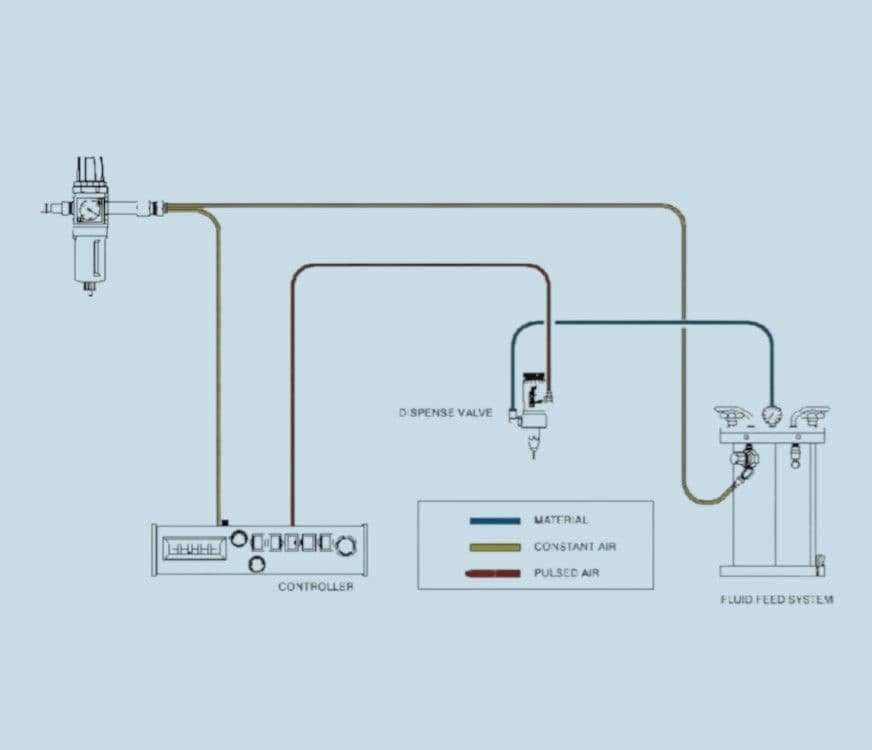

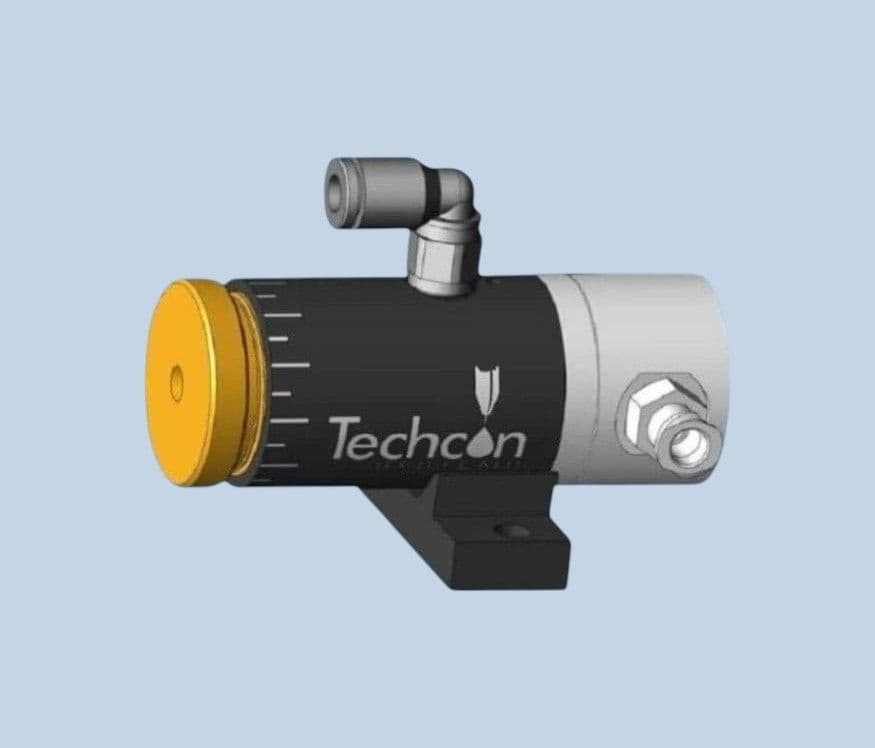

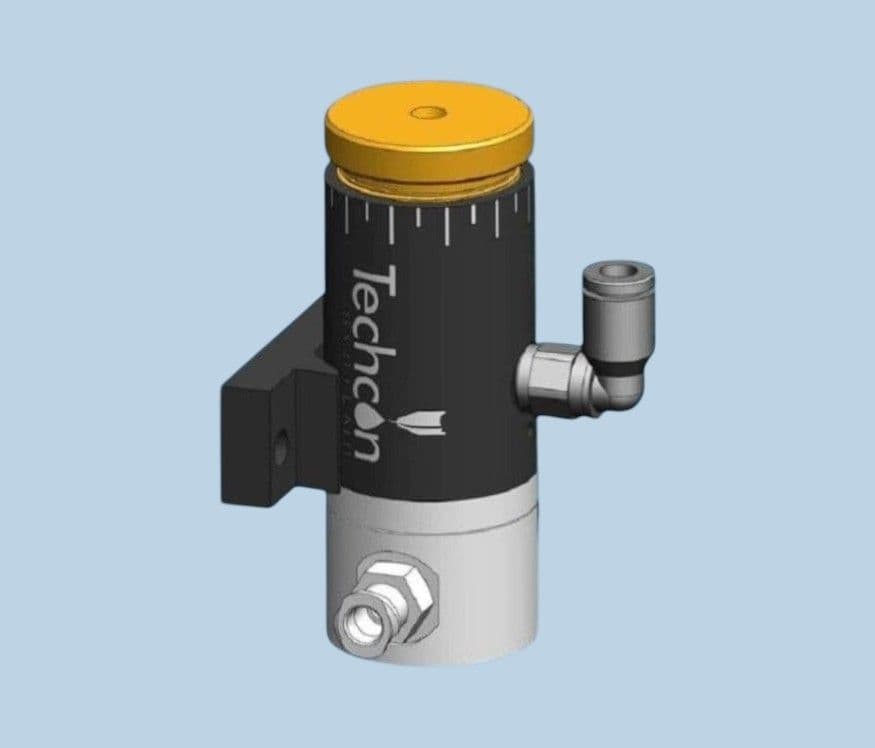

Model TS5620HU with UHMW* polymer wetted parts is used for dispensing solvents, cyanoacrylates, anaerobics and fluxes. Simple to use with any pneumatic dispenser/ controller.

*Ultra High Molecular Weight polyethylene.

Fluid housing is in FDA-compliant Ultra High Molecular Weight Polyethylene (UHMWPE) for most dispensing applications. A Teflon® version is available for chemical compatibility and a Delrin® version for UV-curable adhesives are also available. A stainless steel version with optimized internal fluid route is especially dedicated to dispense UV-cure adhesives, resins and lacquers used in the manufacture of DVDs and CDs. A hand-held actuated valve is also available.
