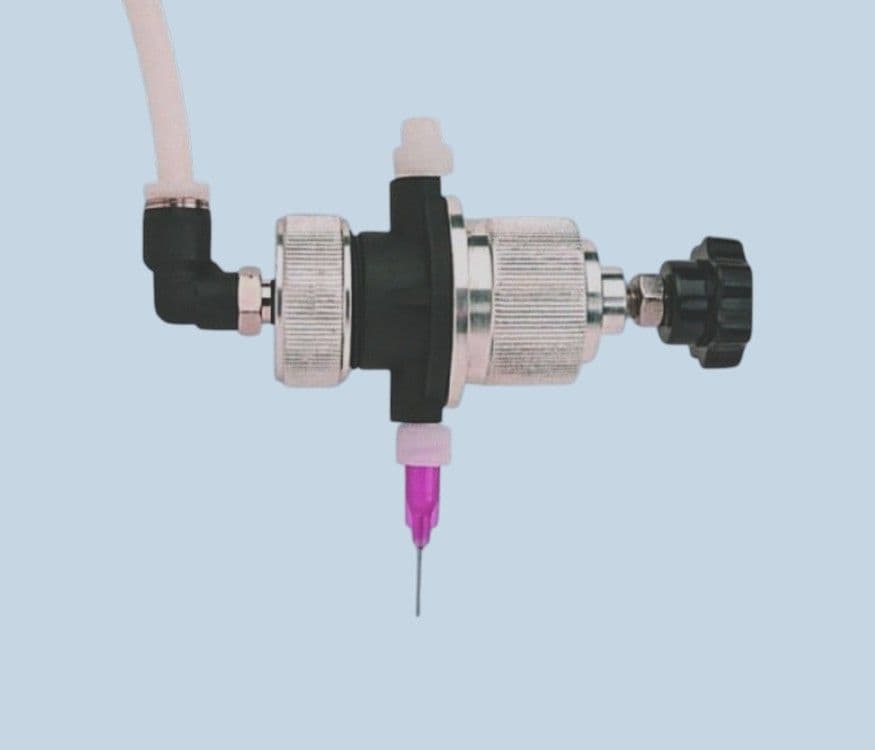

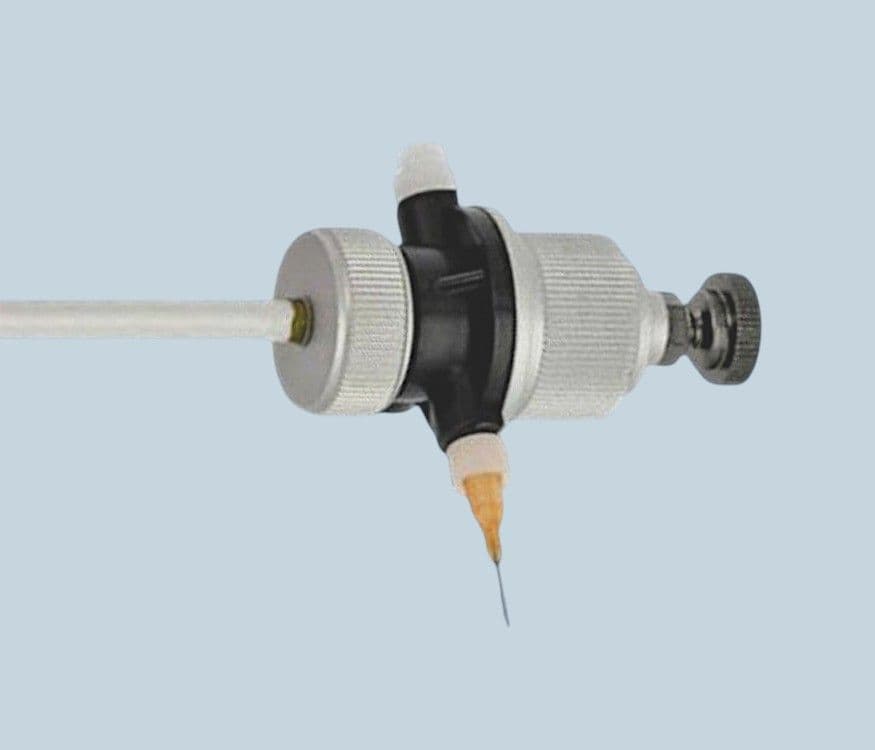

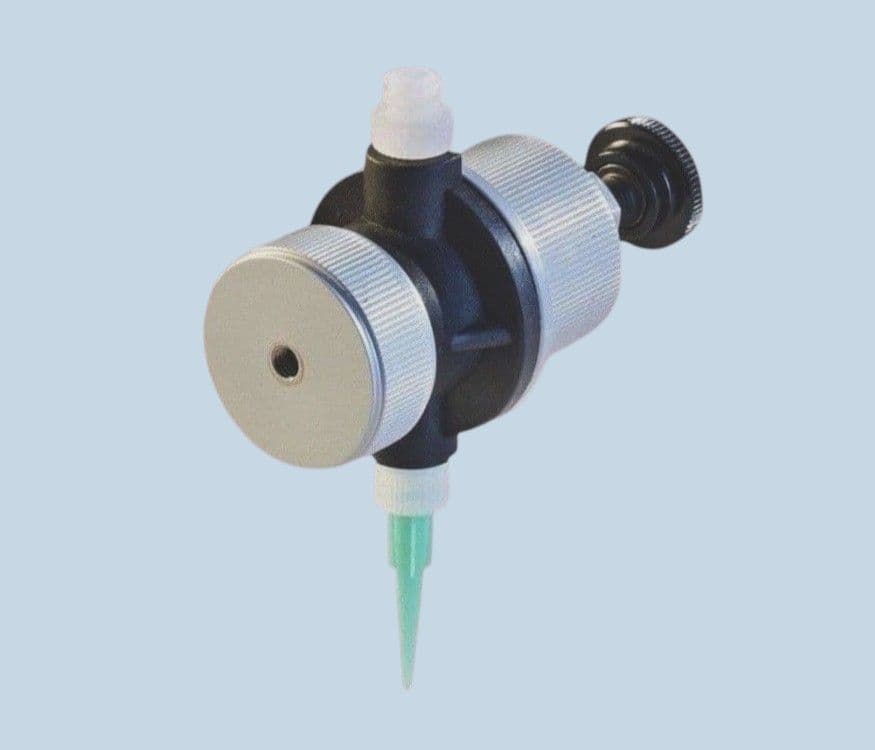

Air Operated Pinch Tube Valve F710PT-U

Product Code: F710PT-U

For low to medium viscosity adhesives, epoxies, inks, paints, solvents, primers and activators.

The pinch tube valve is a compact and cost effective device for dispensing very thin liquids, semi-viscous materials, cyanoacrylates, anaerobics, solvents, UV cure adhesives and two-component fluids. For repeat dots, beads or potting of liquids fed from a syringe, cartridge or pressure pot. The only part of the valve that makes contact with the liquid is the low cost replaceable pinch tube assembly. This makes the F710PT-U valve ideal for aggressive or curable liquids with no risk of the material setting and damaging expensive parts.

Compact and easy to set up, this valve is operated by any of our valve controllers. The controller provides a timed pulse of air pressure to open the F710PT-U pinch tube, allowing the adhesive or liquid to flow. A spring loaded shut-off provides the ability to make micro dots if required with no drips between shots. The shot size is determined by the time setting on the controller, the fluid pressure, the amount of opening set on the adjustable stroke control and the size of needle tip used.

For complete systems, we offer a range of options including F710PT-U valve, pressure pot and controller. The connecting link between reservoir and the F710PT-U is a fluid line that offers a safe luer lock connection and is suitable for use with most liquids and adhesives. Use Teflon lined or Teflon tips for cyanoacrylates, General Purpose tips for other fluids and Tapered tips for viscous liquids.

Part ID: F710PT-U
Size: 83mm L x 40mm Diameter
Weight: 114g
Wetted Parts: Polyethylene
Viscosity Range: 1 - 35,000 CPS
Min Shot Size: 0.007 cc/ ml
Repeatability: ±0.56%
Flow Rate: Up to 2 Litres/minute @ 60 psi (water)
Max Fluid Pressure: 60 psi ( 4 Bar)
Material Inlet: Female Luer Lock
Material Outlet: Male Luer Lock
Valve Mounting: 1/4" 20UNC-2B
On/Off Pressure: 60-70 PSI
Warranty: 1 Year
Commodity Code: 84671900

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £285.00 Exc VAT

Product Brand:Fisnar
MPN: F710PT-ULead Time: Ships 24 Hours - Stock ItemWarranty: 1 Year
