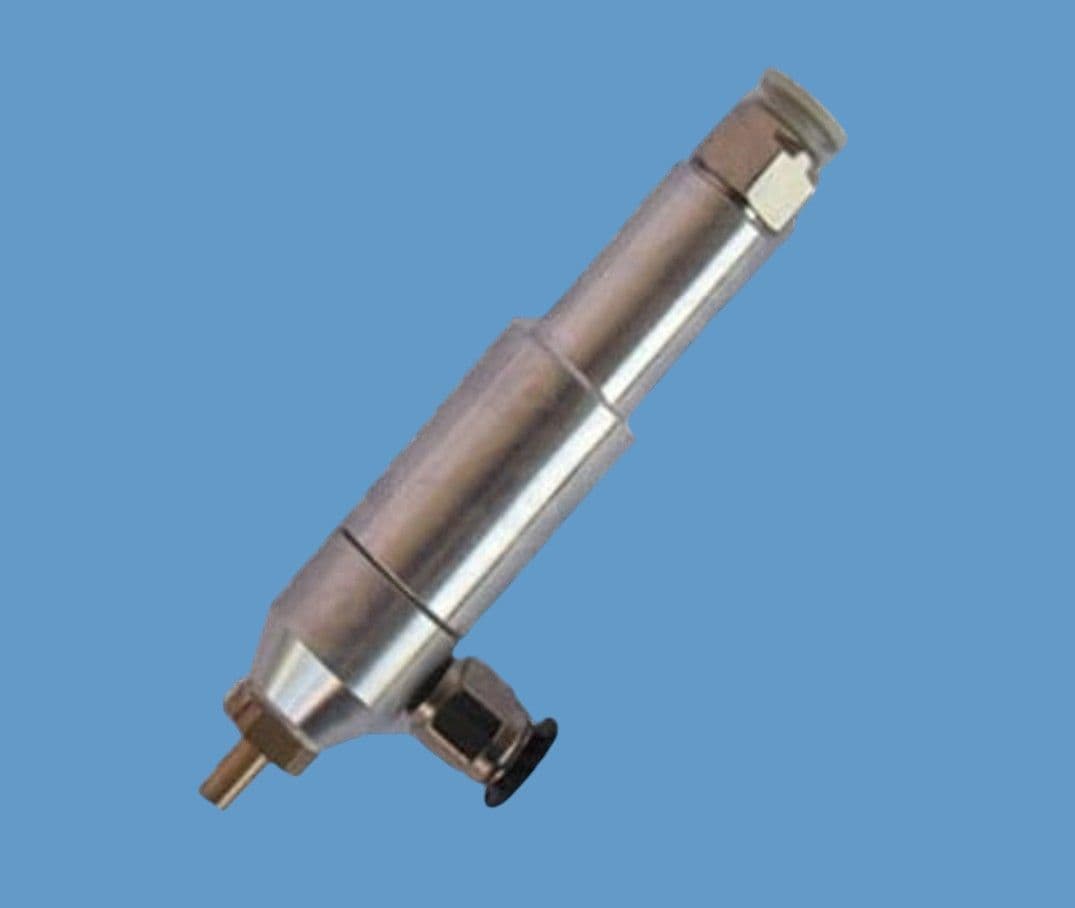

Air Operated Needle Dot Valve AD1021

Name: Air Operated Needle Dot Valve AD1021
Brand: Adhesive Dispensing Ltd
Price: 594.00 GBP
Availability: InStock

Air Operated Needle Valve AD1021 adhesive dispensing

Product Code: AD1021

Stainless & aluminium needle valve for repeat dots of low to medium viscosity fluids

A basic air operated dosing valve that uses a needle assembly to dispense dots or beads of low to medium viscosity adhesives and fluids such as anaerobics, activators, inks, gels, solvents, lubricants, chemicals and UV's. Needle seal at tip end prevents drips. Operated with any pneumatic timed dispenser in our range.

The valve design is vertical with fluid flow from the side either by syringe, cartridge or fluid line feed (from pressure pot). Always use black fluid lines or feed tubing with any UV cure adhesives. Stainless steel body. Supplied with quick fit fluid and air fittings as well as elbow fluid feed input. Easy to maintain.

Materials: Stainless Steel, Aluminium, Teflon, EPR
Size: 225mm) L x 21mm) Dia.
Weight: 227g (0.5lb)
Viscosity Range: 1 - 100,000 CPS
Repeatability: ±5%
Cycle Rate: Up to 200 cycles/ minute
Flow Rate (water):   900ml/min @ 100 psi
Min Shot Size: 0.01 cc/ ml
Max Fluid Pressure:    100 psi
Activation Pressure:   70 psi
Material Inlet:    1/8" NPT
Material Outlet:    Luer Lock
Commodity Code: 90289090

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £495.00 Exc VAT

Product Brand:Adhesive Dispensing Ltd
MPN: AD1021Lead Time: 1-2 WeeksWarranty: 1 Year
