Adapter Assembly Inline Fluid Filter Trap 1400-FTR

Adapter Assembly Inline Fluid Filter Trap 1400-FTR
Product Code: 1400-FTR

In-line liquid filter trap use with all air adapter assemblies. Protects against liquid suckback.

Our precision fittings offer safe and leak free connections from syringe barrels to cartridges and pressure pots. This filter is used on air adapter assemblies when dispensing low viscosity fluids such as solvent based liquids, primers, activators and Cyanoacrylates. Use as a safeguard to prevent fluid damage.

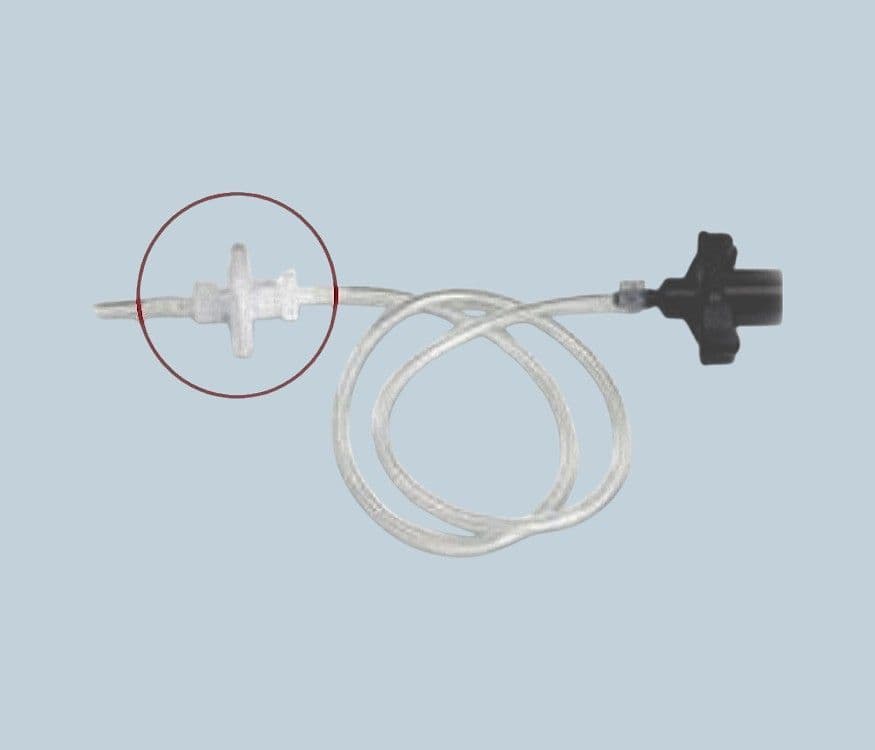

The 1400-FTR fluid filter is used in conjunction with pneumatic syringe dispensers. It is attached to the air line hose assembly of any size adapter receiver. It is used to reduce potential fluids and adhesives from entering into a pneumatic dispenser via the syringe adapter hose. The filter element will reduce the flow back and to help to prevent damage.

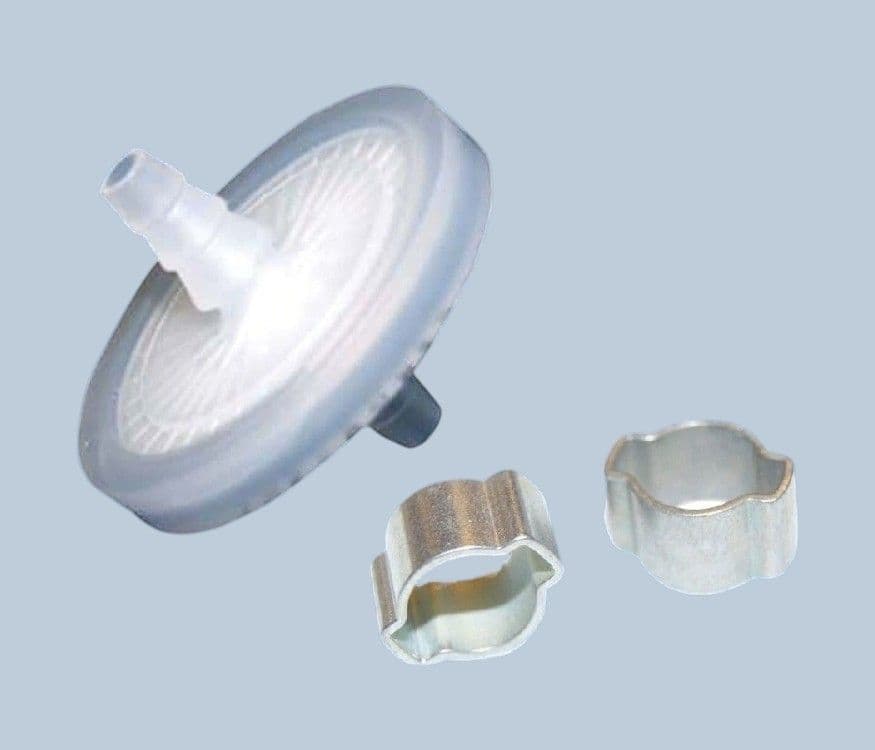

Use with low viscosity liquids up to a maximum pressure of 25 psi.  The adapter hose is cut and the filter is attached using the clamps and fittings included. When using 700 Series adapter heads, the ID of the clear tubing needs to be stretched to 0.013" before installing the barbed fitting.

Please note that this fitting does not guarantee liquids from entering a dispenser but is a safeguard. Please use care and attention when dispensing watery liquids with your syringe type fluid dispenser.

Part ID: 1400-FTR
Materials: Polyethylene/ Polycarb
Attachment: Barbed 1/4" OD
Adapter Size: Fits all adapter hoses
Colour: Natural
Brand: Adhesive Dispensing Ltd
Lead Time: Ex Stock

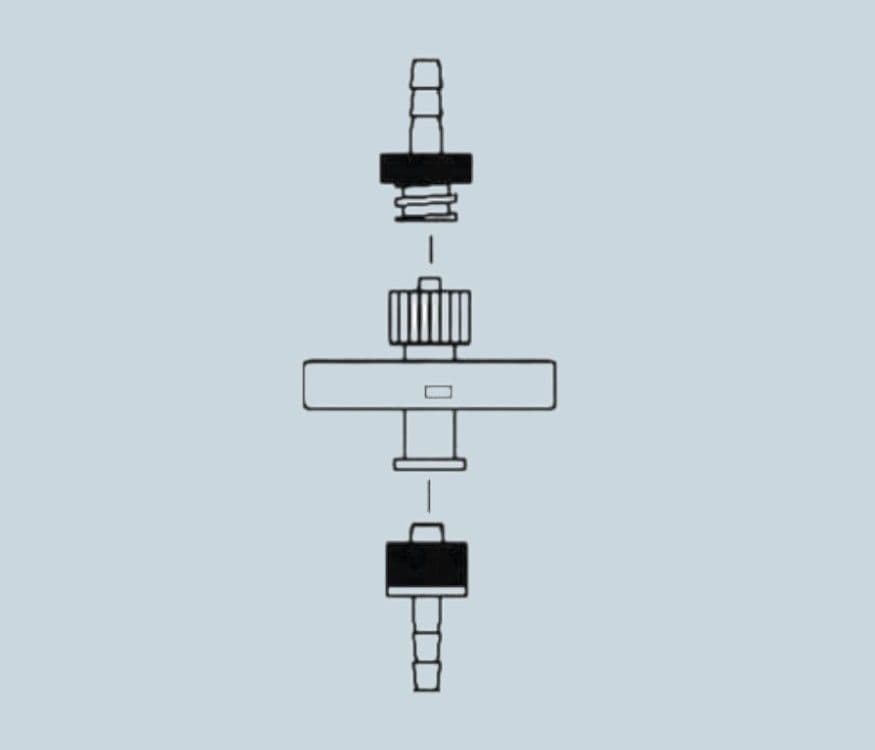

These fittings are designed to be disposable if they come into contact with a fluid. Designed to make a secure connection in the adapter assembly hose once it is cut. Cut the adapter assembly approximately half way up the tube and attach the hose to either end of this filter making sure it is setup in the right direction. Only use this filter with watery liquid applications because it limits the output air to 25 psi air pressure.

Price: £7.95   Exc VAT
  • Product Brand:ADL
  • MPN: 1400-FTRLead Time: Ships Within 24 HoursMax Pressure: 25 PSI
