AD9830X 3 Axis Benchtop Gantry Robot 800mm

AD9830X 3 Axis Benchtop Gantry Robot 800mm
Product Code: AD9830X

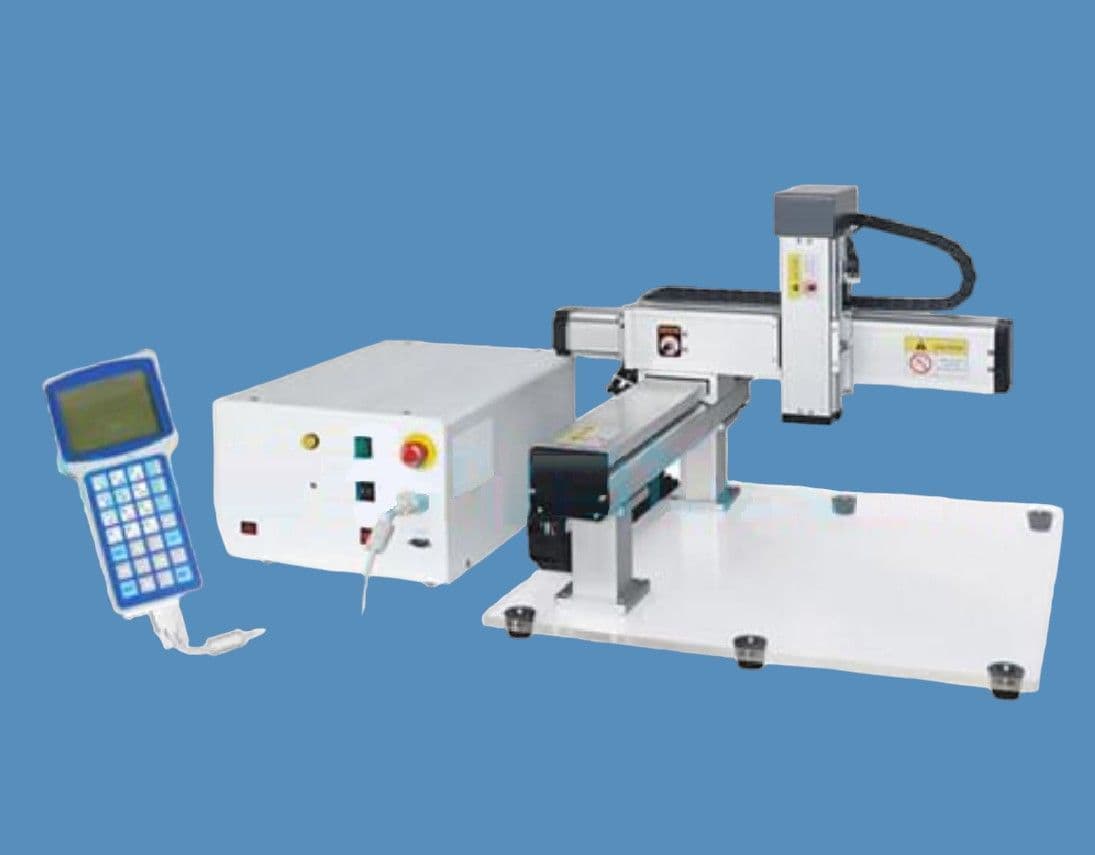

3 axis robot 800mm x 300mm x 150mm area. Teach pendant, dispenser, controller box.
Each robot is capable of interfacing with Adhesive Dispensing Ltd equipment. Systems will dispense virtually any assembly fluid and adhesive or liquid paste, from thin, watery liquids and solvents to thick gels, silicones and brazing pastes. All are applied quickly, accurately to reduce waste, mess and hand fatigue.

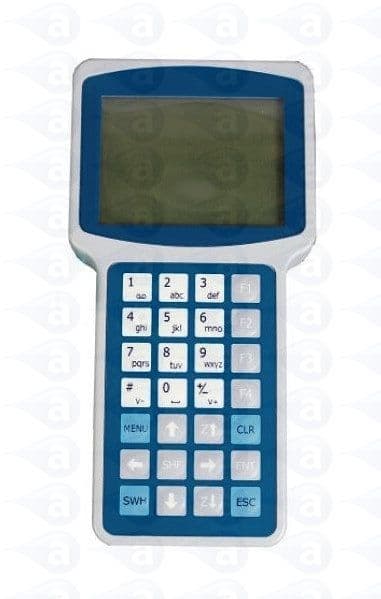

Programming is simple with easy to follow English language instructions. Commands are followed and responses entered by a Teach Pendant. A program can be created quickly and simply. All machines include 16 I/O signal interface for connection to tools and controllers. Supplied with a digital pneumatic dispenser and syringe barrel/ tip packs.

Data transfer and file import to robot teach pendant via USB - suppoers CAD, Corel Draw, etc. To generate formats such as DXF, JPG, BMP, NC, AI, scanner, etc. Software supports programming array pattern, graphic browsing, 3D arc, common graphic library and group editing. Mini SD file memory with high speed 2GB capacity. Automatic gel prevention mode to avoid curing glue setting in the nozzle or tip.

    XYZ Robot Working Area/ mm: 800 / 300 / 150
    Total load - Z axis: 10kg
    Max. Speed X&Y / Z (mm/sec): 400 / 300
    Repeatability: +/- 0.02mm/ Axis
    Resolution: 0.01mm/ Axis
    Data Memory: 999 programs
    Drive System/Stepping Motor: Micro stepping motor
    Motion Control: PTP & CP
    Teaching Method: Teach Pendant
    I/O Signals: 4 Inputs / 4 Outputs
    External Interface: USB / RS232
    Power Supply: 110/ 220V AC
    Weight: 65 kg

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Price: £12,988.56   Exc VAT
  • Product Brand:ADL
  • MPN: AD9830XLead Time: Ships in 2-3 WeeksVoltage: 220V AC
