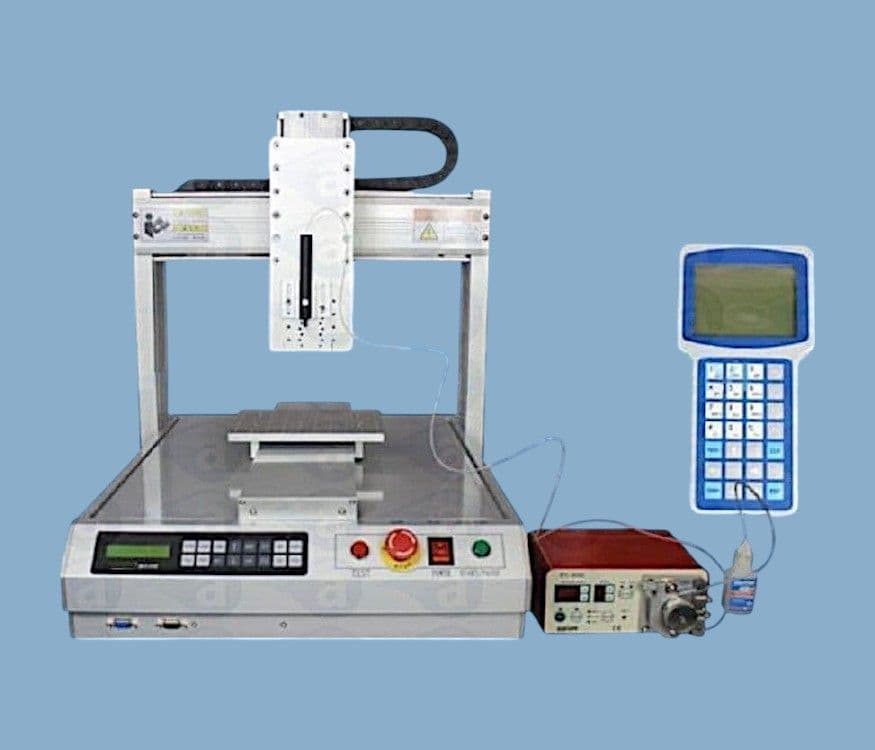

A powerful desktop robot with a working area of 400 x 400mm. Its reduced bench top footprint makes it an ideal robot for automating a dispensing application that may be currently performed manually. Programming is by teach-pendant, using the industry's leading dispensing software that walks the user through step-by-step instructions to create a sophisticated dispensing operation in minutes.
The AD series bench top dispensing robots are a cost effective solution combining high level programming technology with precision placement engineering. The AD series are a heavy duty design, which are easily programmed using simple step-by-step instructions. A robust cast construction provides additional stability when working to fine tolerances.

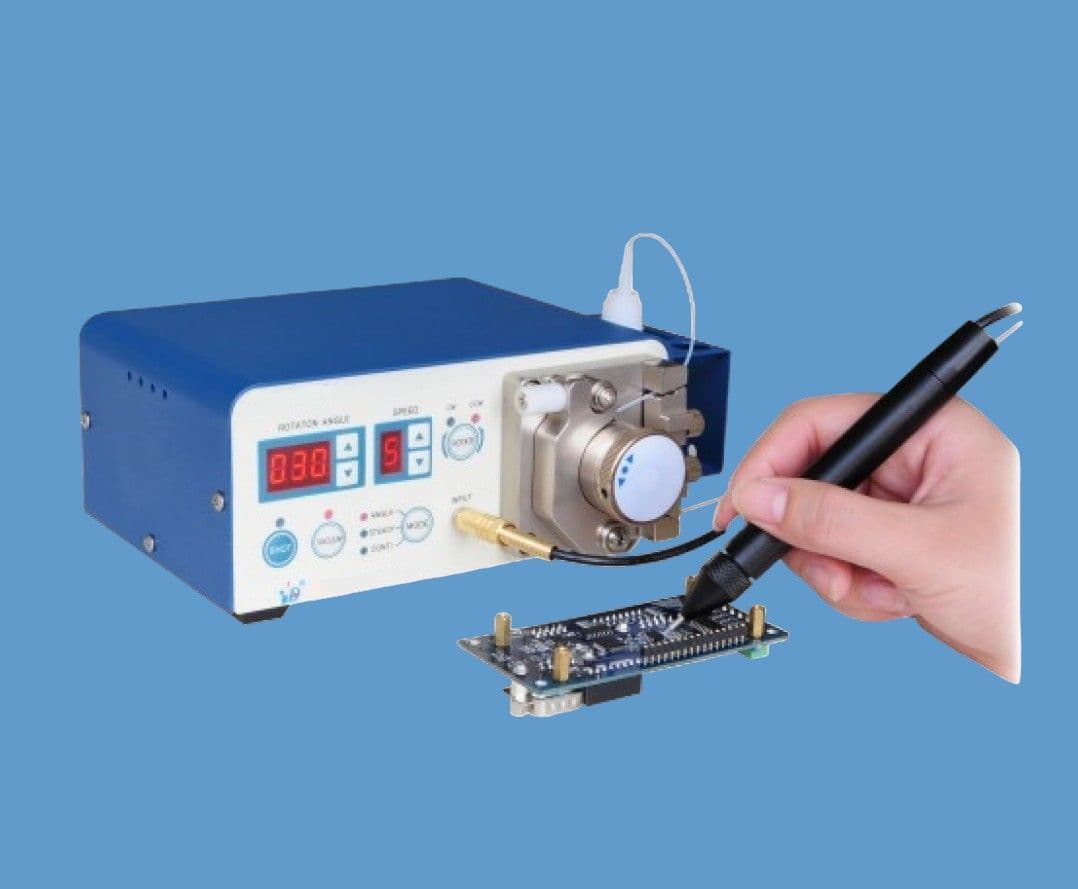

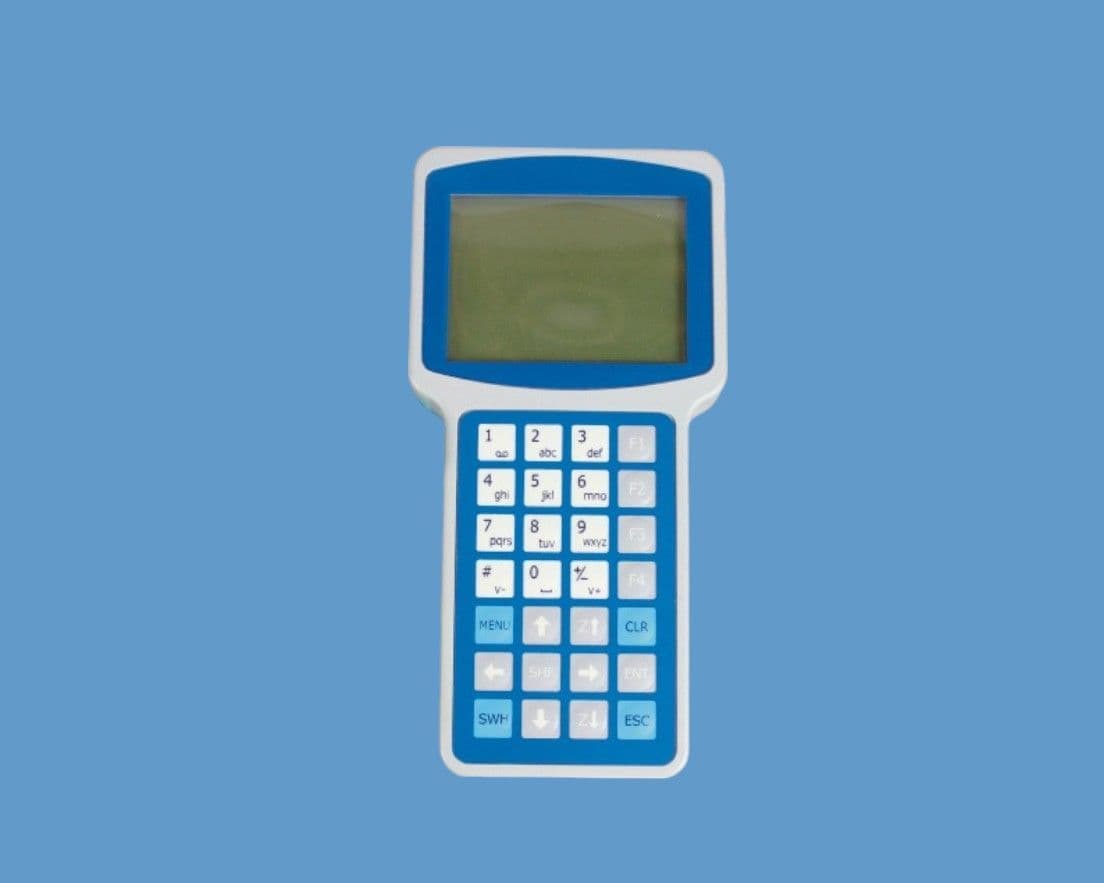

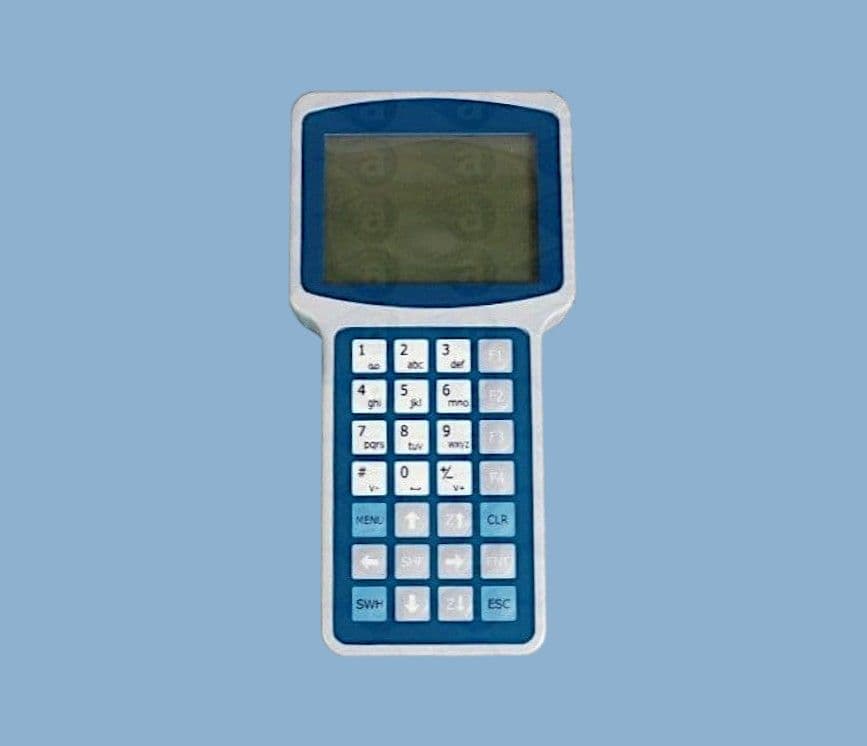

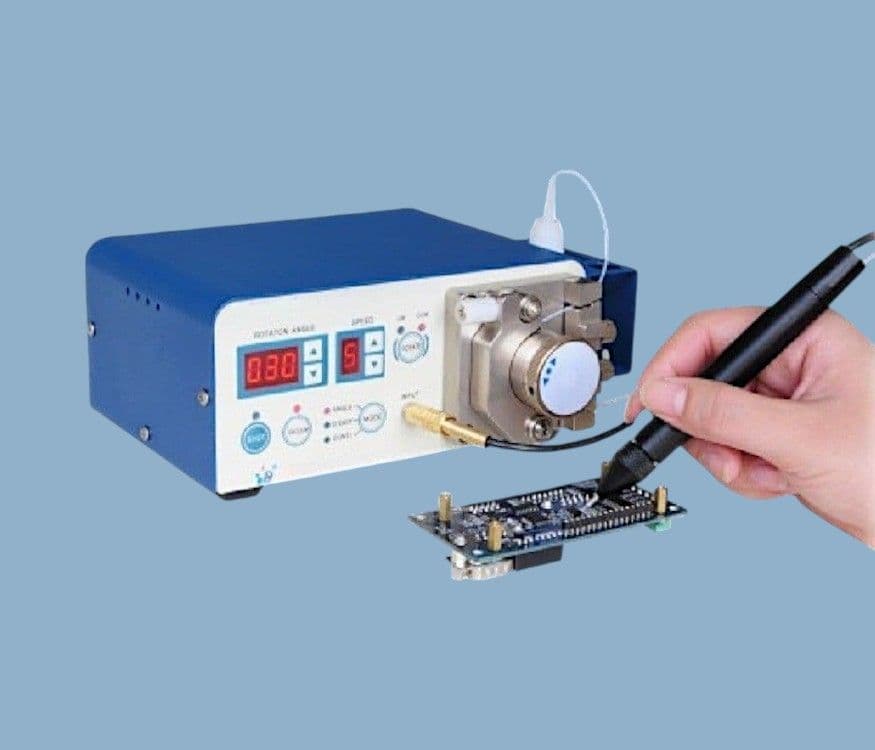

Programming is simple with easy to follow english language instructions. Commands are followed and responses entered by a Teach Pendant. An LCD display prompts the user for a data input and once confirmed, automatically displays the next instruction. By this method a program can be created quickly and simply. All machines include 4 I/O signal interface for connection to tools and controllers. Supplied with a digital electronic peristaltic pump Cyanoacrylate dispenser. This will draw Cyanoacrylate adhesive directly from the glue bottle to apply controlled deposits using Teflon tubing. Completely air-free system.
Data transfer and file import to robot teach pendant via USB - suppoers CAD, Corel Draw, etc. To generate formats such as DXF, JPG, BMP, NC, AI, scanner, etc. Software supports programming array pattern, graphic browsing, 3D arc, common graphic library and group editing. Mini SD file memory with high speed 2GB capacity. Automatic gel prevention mode to avoid curing glue setting in the nozzle or tip.
X/Y/Z Work area (mm): 400 / 400 / 100
Worktable load / Tool: 15 kg. / 6 kg.
Max. Speed X&Y / Z: 800 / 350 (mm/sec)
Repeatability: +/- 0.02mm/ Axis
Resolution: 0.01mm/ Axis
Data Memory: 999 Programs
Drive Sys. / Stepping motor: 3-phase
Motion Control: PTP & CP
Teaching Method: Teach Pendant
I/O signals: 4 inputs / 4 outputs
External Interface: RS232
Power Supply: AC 110-220V
Dimensions (WxDxH): 600 x 648 x 629
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
