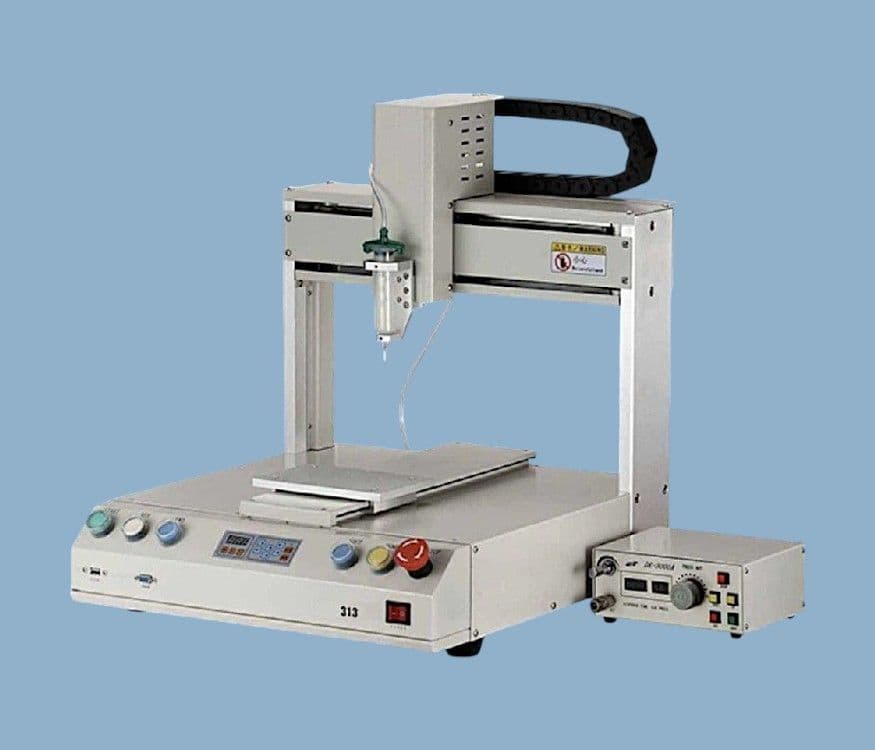

A compact desktop robot with a working area of 200 x 200mm. Its reduced bench top footprint makes it an ideal robot for automating a dispensing application that may be currently performed manually. Programming is by teach-pendant, using the industry's leading dispensing software that walks the user through step-by-step instructions to create a sophisticated dispensing operation in minutes.
The AD series bench top dispensing robots are a cost effective solution combining high level programming technology with precision placement engineering. The AD series are a compact, heavy duty design, which are easily programmed using simple step-by-step instructions. A robust cast construction provides additional stability when working to fine tolerances. Systems will dispense virtually any assembly fluid and adhesive or liquid paste, from thin, watery liquids and solvents to thick gels, silicones and brazing pastes. All are applied quickly, accurately to reduce waste, mess and hand fatigue.

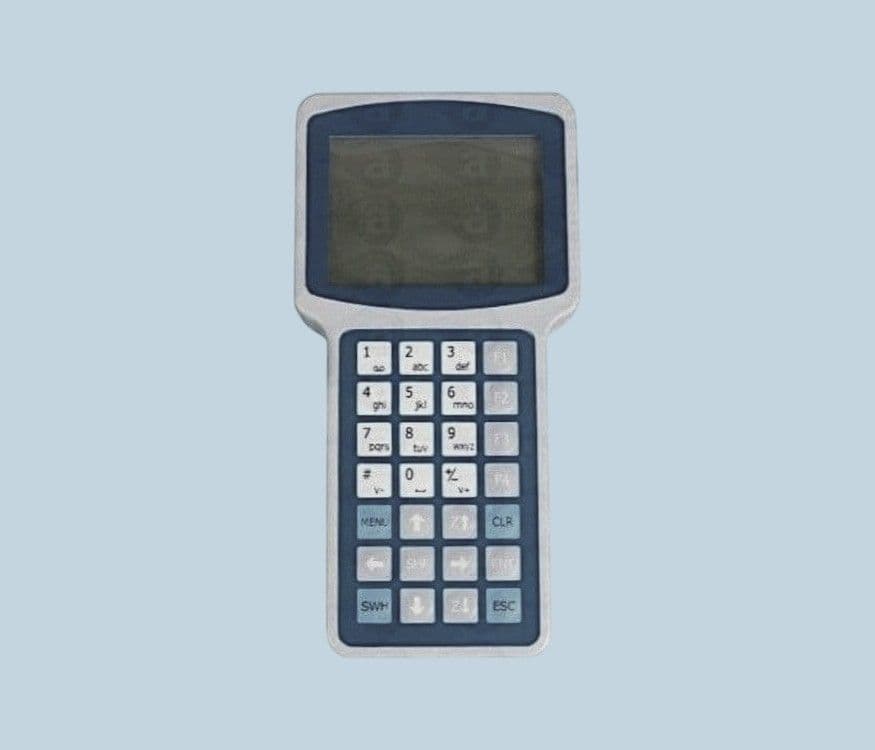

Programming is simple with easy to follow English language instructions. Commands are followed and responses entered by a Teach Pendant. An LCD display prompts the user for a data input and once confirmed, automatically displays the next instruction. By this method a program can be created quickly and simply. All machines include 4 I/O signal interface for connection to tools and controllers. Supplied with a digital display pneumatic dispenser, I/O cable, LCD teach pendant, power cables, airline hoses, syringe barrel mounting bracket, 30cc/55cc barrel and piston pack, precision tip pack, software and hardware user guides.
Mini SD file memory with high speed 2GB capacity. Automatic gel prevention mode to avoid curing glue setting in the nozzle or tip. CE approved. 1 Year Warranty. Supplied boxed with all accessories ready to use. CE approved. 1 Year warranty.
X/Y/Z Work area (mm): 200 / 200 / 50
Worktable load / Tool: 6 kg. / 4 kg.
Max. Speed X&Y / Z: 500 / 300 (mm/sec)
Repeatability: +/- 0.02mm/ Axis
Resolution: 0.01mm/ Axis
Data Memory: 999 Programs
4,000 points / program
Drive Sys. / Stepping motor: 3-phase
Motion Control: PTP & CP
Teaching Method: Teach Pendant
I/O signals: 4 inputs / 4 outputs
External Interface: RS232
Power Supply: AC 220V
Outer Dimensions (W x D x H): 400 x 380 x 529mm
Commodity Code: 90289090
