Recirculatory A2 size filter unit for aerosol adhesives, lacquers, solvents, paints, solders, particles and dust. Units can be used in two positions either reclined (on back stand) or upright on the work bench. Filtration of particles down to 5 micron. Carbon fibre filter assists in the reduction of solvent odours. Portable and easy to use system. Features fan with particle and carbon filters.

Description

Steel construction finished in dove grey - plastic replaceable spray/ fume shield - back stand/ carry handle - particulate filter - carbon impregnated fibre filter - axial fan (s) - external rotor motor type brushes - UL, VDE and CSA approved - sealed electrical wiring and switch, downstream of filters. Standard 220V system. A 110V 60Hz version is available if requested.

Operation

All filtration systems and extraction systems carry a 1 Year warranty, are quiet in operation and can be assembled in seconds. Place onto a desk, bench or trolley and then simply plug in and switch on. These units can be used in two positions.

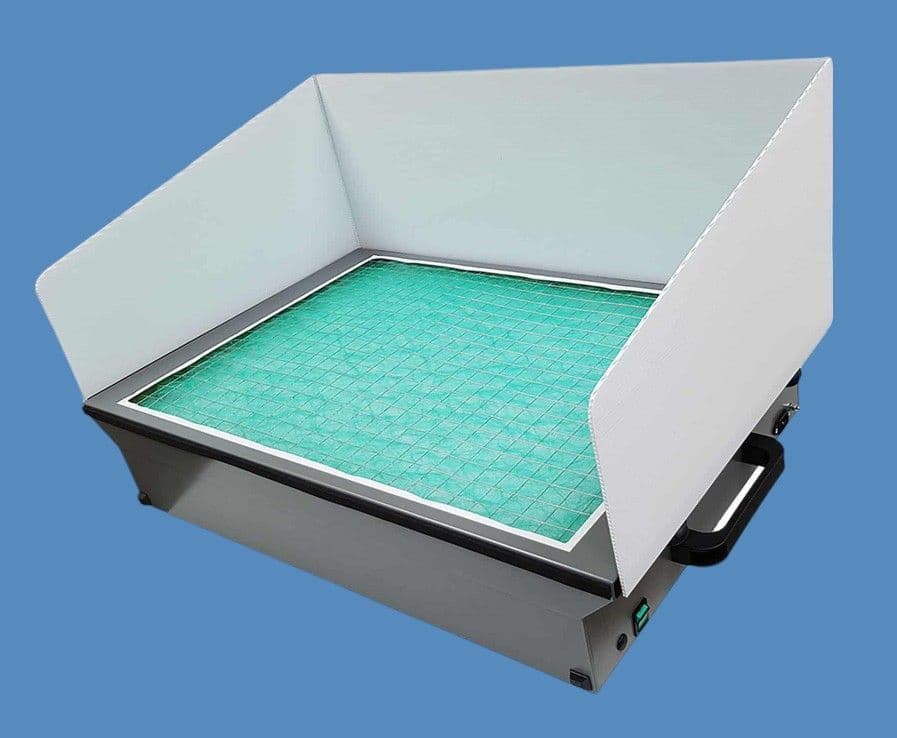

Reclining position (on back-stand) – For Spray Mount, aerosol lacquers and fixatives etc. applied to artwork placed onto the filter. A200S accommodates artwork up to A2.

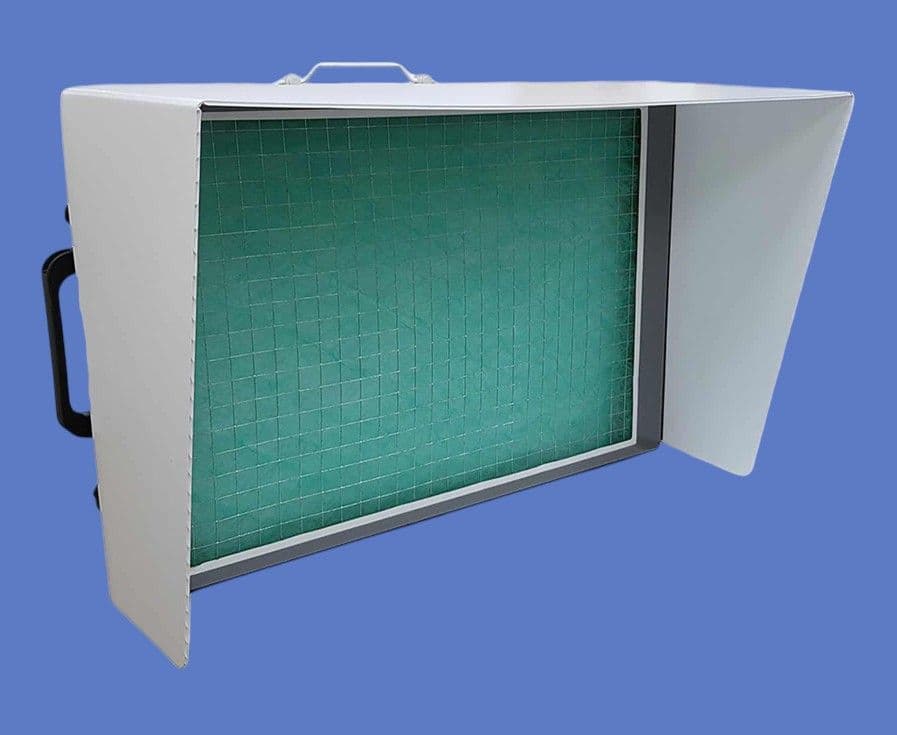

Upright position – For model sprays and airbrush use – light grinding particles – solder fume displacement – general solvent dilution etc.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
