Cartridge gun dispensers are designed for the controlled application of pastes, gels, adhesives and fluids. We offer our customers the most cost effective cartridge gun dispensing systems. All guns are covered by a one year warranty and supplied with a starter kit of dispensing components.

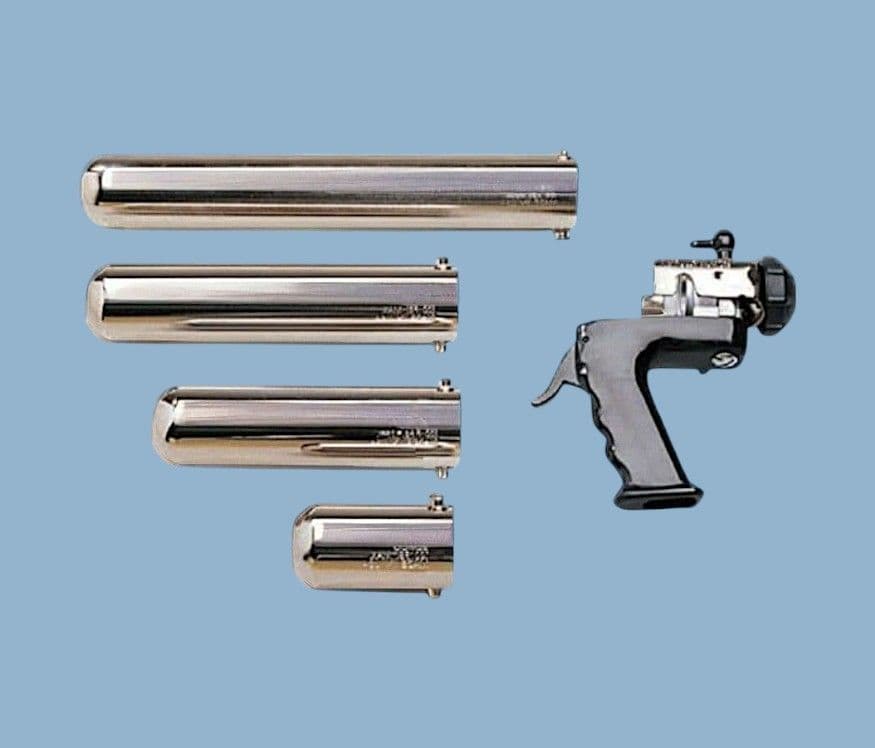

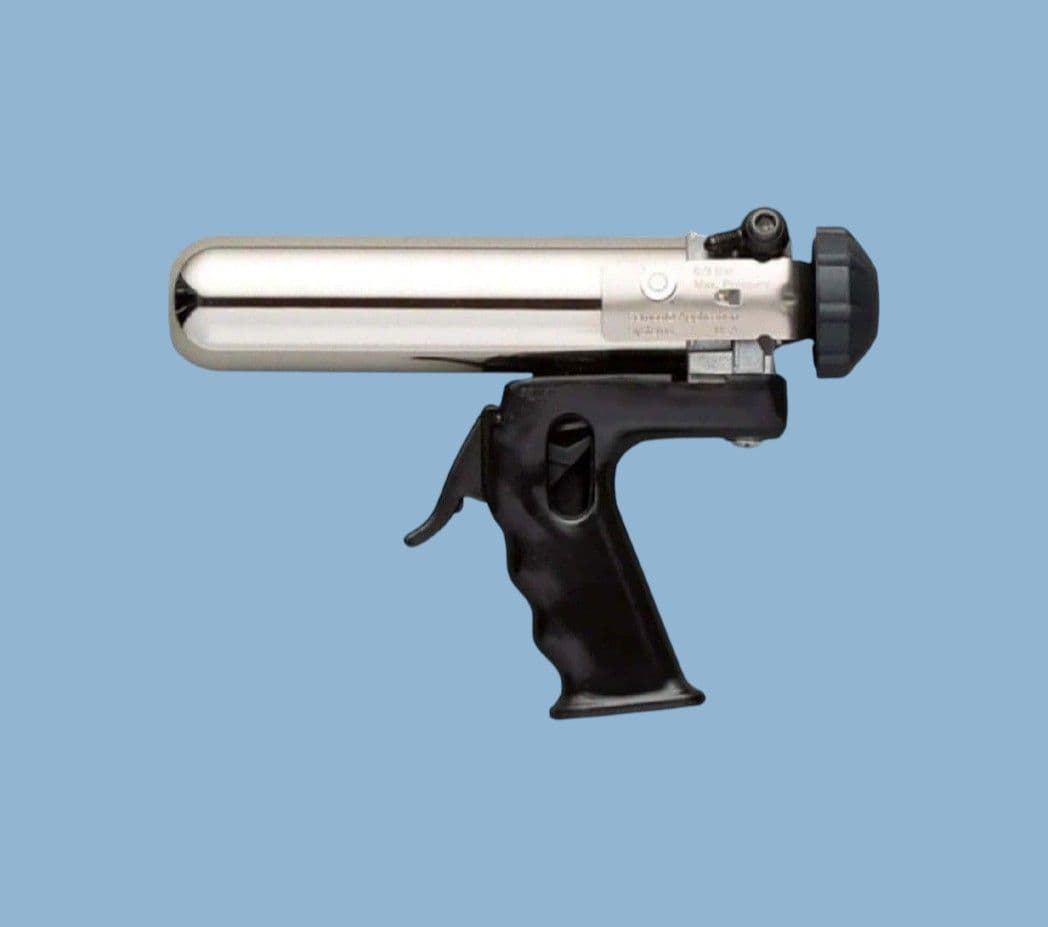

A pneumatic cartridge gun with quick attach bayonet head and pistol grip. Suited to controlled lines or potting of most adhesives, fluids, sealants, RTV, grease, gels, long cure or single part epoxies, mastics and potting compounds. 6oz size (177cc approx). Suited to controlled lines or potting of most adhesives, fluids, sealants, RTV, grease, gels, long cure or single part epoxies, mastics and potting compounds.
Operation
Connect an air line to the applicator or select an optional airline hose. Unscrew the end cap knob at the end of the gun and remove the retainer. Load in a 6oz (177ml) cartridge. Replace the retainer and screw tightly to secure the cartridge. Attach a threaded nozzle or use a male luer lock adapter with any standard needle tips. Squeeze pressure for flow and adjust regulator or mains air supply for control.
Part ID: 250065
Cartridge Size: 6oz (177ml)
Construction: Stainless steel/ aluminium/ nylon
Colour: Silver/ Black
Retainer Attachment: Bayonet Fitting
Maximum Air Pressure: 100 PSI
Warranty: 1 Year
Commodity Code: 84671900
Origin: USA
Brand: Semco PPG
Guns are robust and handle most liquids and pastes dispensed from them. The handle uses a low cost rubber gasket seal for the retainer that can be replaced after very long periods of use. Keep the trigger assembly clean and grease as required.
Guns are portable and can be used in a factory production or maintenance area, in an assembly department as well as for repair and re-work. Guns are commonly used in repair and maintenance of parts that are not so easy to reach such as aircraft maintenance.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
