CG600-3 Dual Cartridge Dispensing Gun - High-Power Applicator for Epoxies & Adhesives
Heavy-duty manual dispenser for high-viscosity, dual-component materials

Product Overview

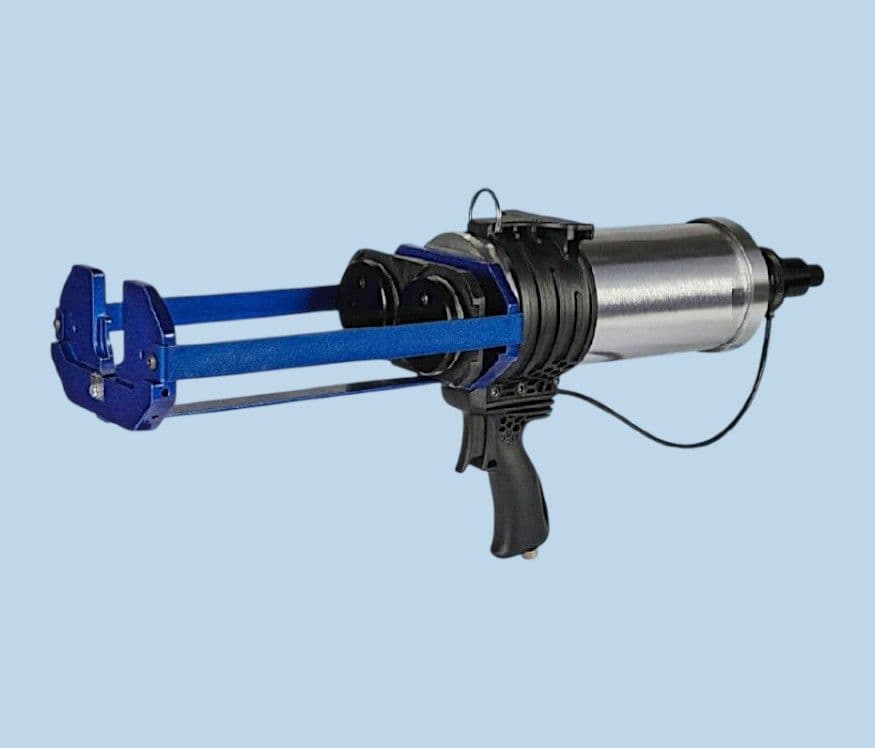

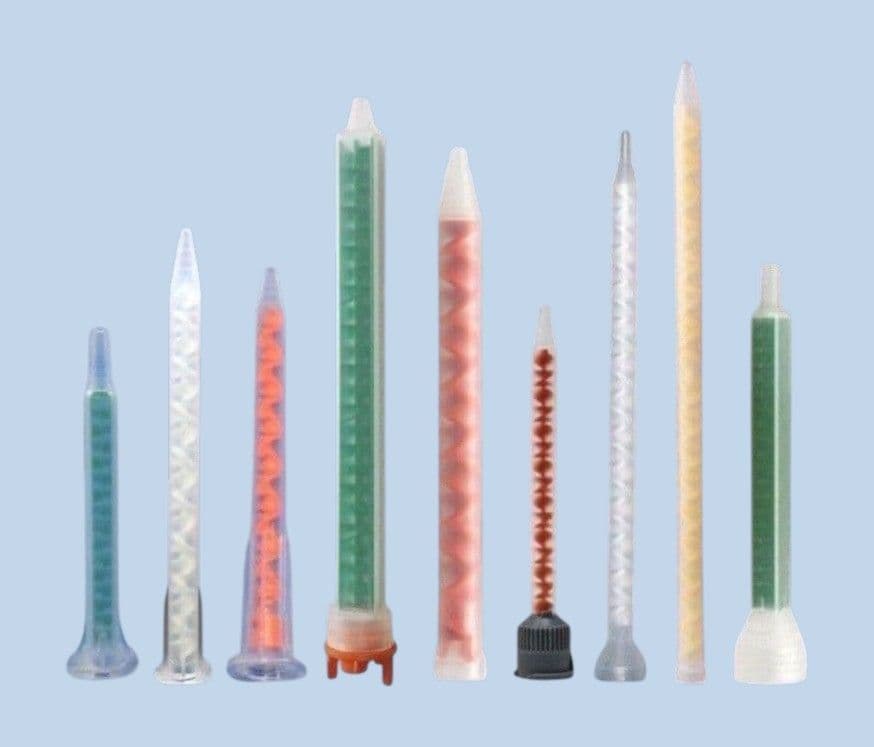

The CG600-3 dual cartridge dispensing gun is engineered for precise application of two-part adhesives and epoxies supplied in side-by-side cartridges ranging from 600ml to 1500ml total volume. Compatible with multiple mix ratios including 1:1, 2:1, 4:1, and 10:1, the tool works in conjunction with a static mixing nozzle for consistent and homogeneous output.

Designed for high-viscosity materials, this hand-operated applicator is ideal for industrial and commercial use across aerospace, automotive, construction, and electronics sectors.

Key Features and Advantages
- High Thrust Output: 1100 lbs. (4.89 kN) at 100 PSI for thick materials
- Multi-Ratio Compatibility: Handles cartridges in 750ml, 600ml, and 300ml combinations
- Lightweight Yet Durable: Constructed with Nylon, Aluminium, Steel, and Zinc for extended use
- Wear Compensation Device: Maintains dispensing accuracy and longevity
- Versatile Cartridge Setups: Supports 1:1, 2:1, 4:1, and 10:1 dual-ratio formats
- Manual Trigger Operation: Offers operator control in both bench and field environments
- Warranty Protection: Backed by a 1-year manufacturer warranty

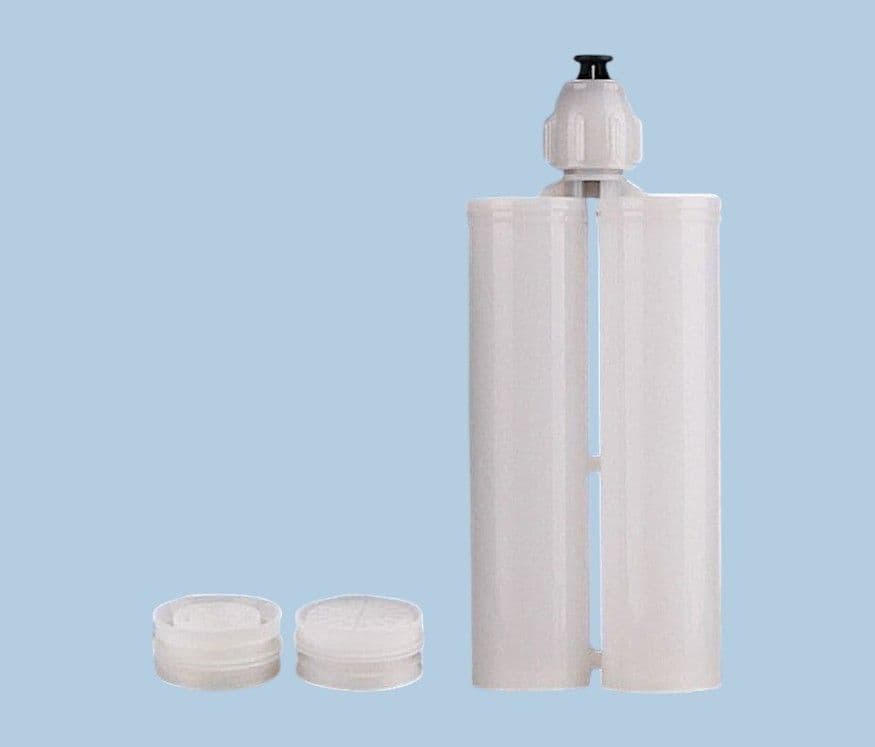

Compatible Push Disc Configurations - Select Version for your cartridge type
- Total Volume -  Ratio - Cartridge Sizes
- 1500ml - 1:1 - 750ml x 750ml
- 1500ml - 2:1 - 750ml x 300ml
- 1500ml - 10:1 - 750ml x 75ml
- 1200ml - 1:1 - 600ml x 600ml
- 600ml - 2:1 - 600ml x 300ml
- 600ml - 1:1 - 300ml x 300ml
- 600ml - 4:1 - 300ml x 75ml

Technical Specifications
- Part ID: CG600-3
- Materials: Nylon, Aluminium, Steel, Zinc
- Colour: Black / Blue
- Size: 1500ml / 1200ml / 600ml
- Weight: 5.44kg
- Thrust Force: 1100 lbs (4.89 kN)
- Cylinder Diameter: 4.0 inches
- Max Pressure: 100 PSI
- Warranty: 1 Year
- Commodity Code: 90289090
- Origin: Taiwan
- Approvals: CE Certified

Application Range
Efficient and precise dispensing of:
- Epoxies & Polyurethanes
- Acrylic Adhesives
- Silicones, Sealants, and Gels
- Primers, Activators, and Solvents

Why Choose Adhesive Dispensing Ltd?
Our product range supports fluid dispensing from low-viscosity liquids to thick compounds, backed by high-performance tools, batch traceability, and customised solutions for manufacturing workflows.
