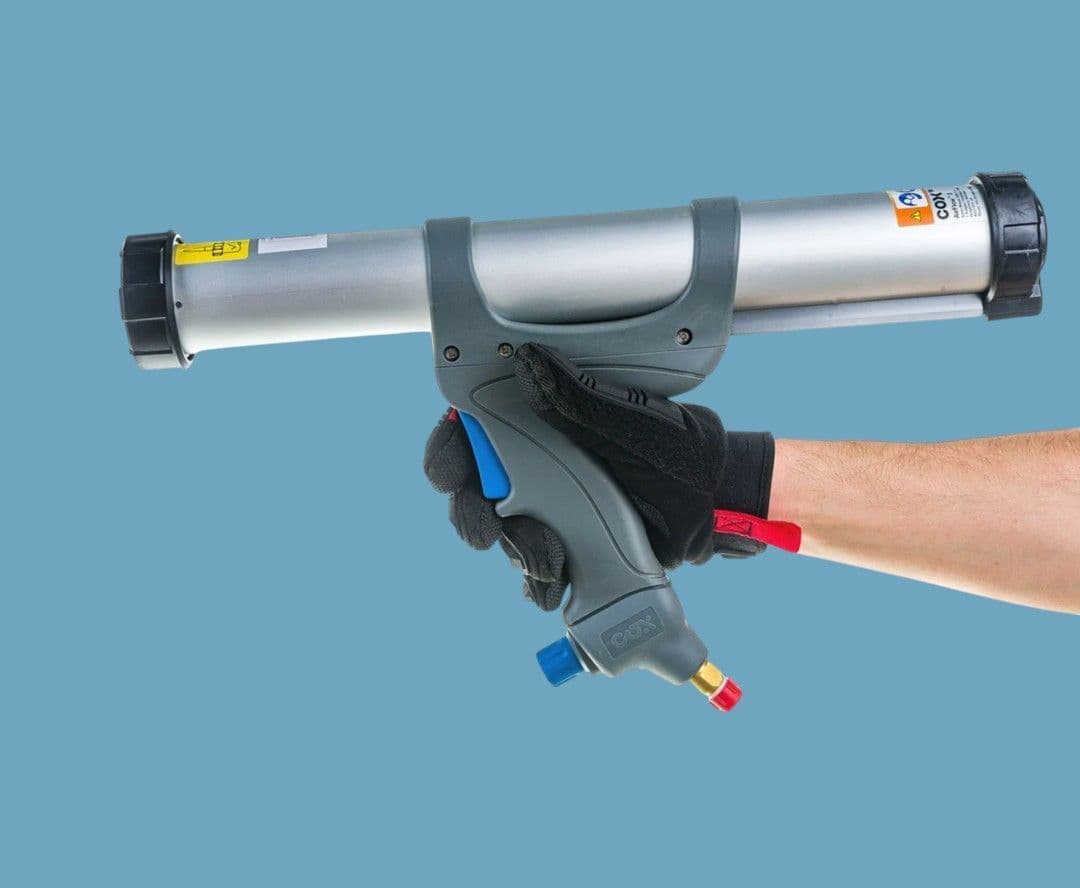

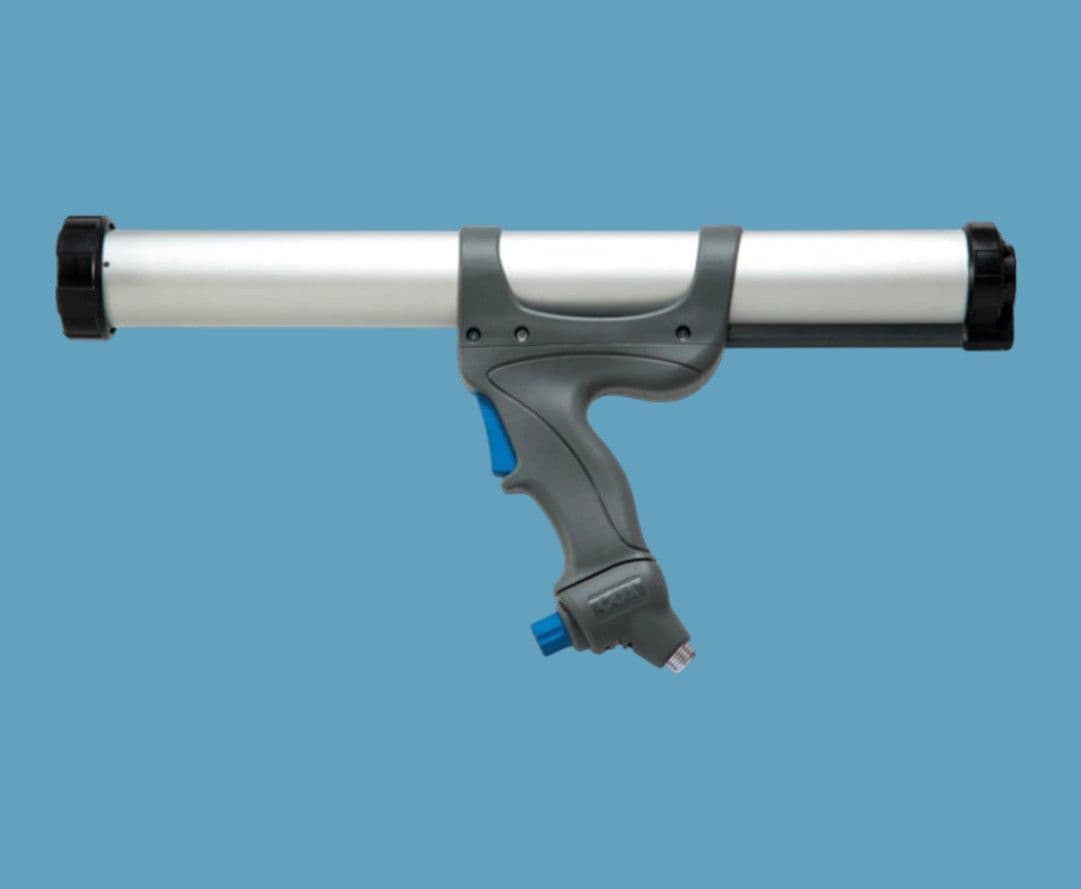

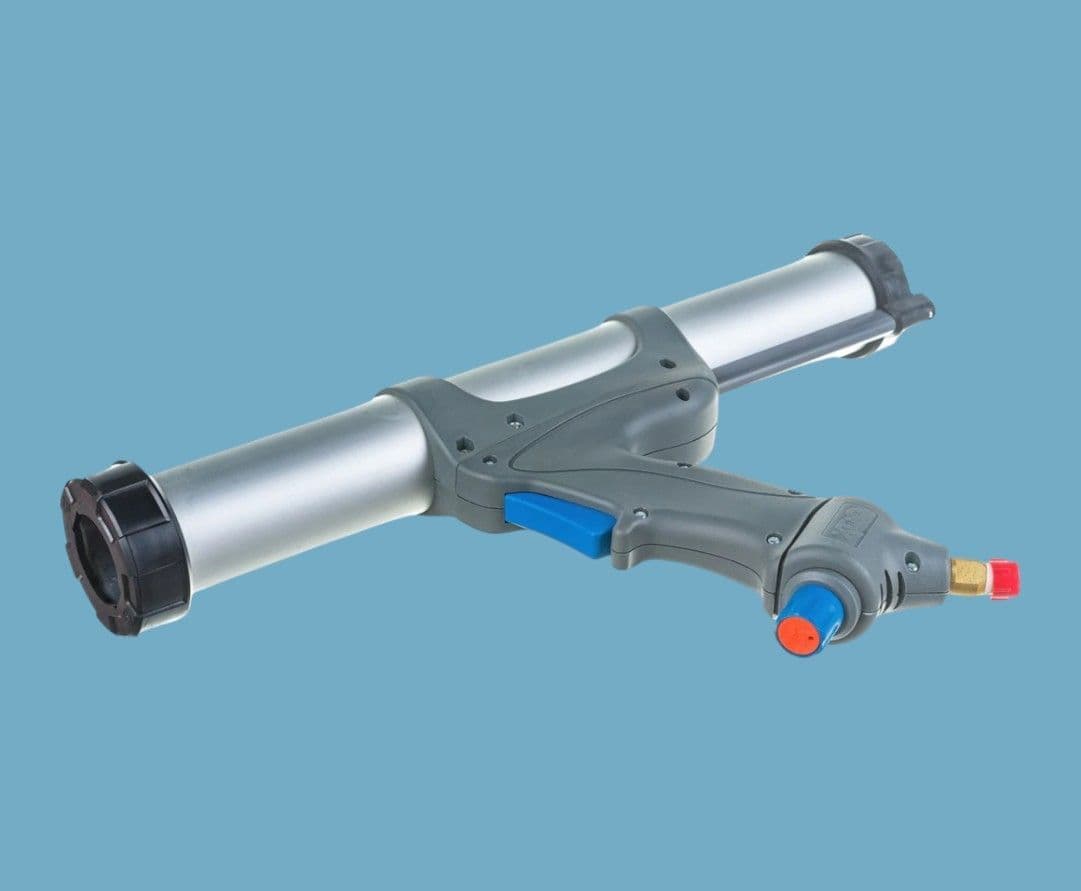

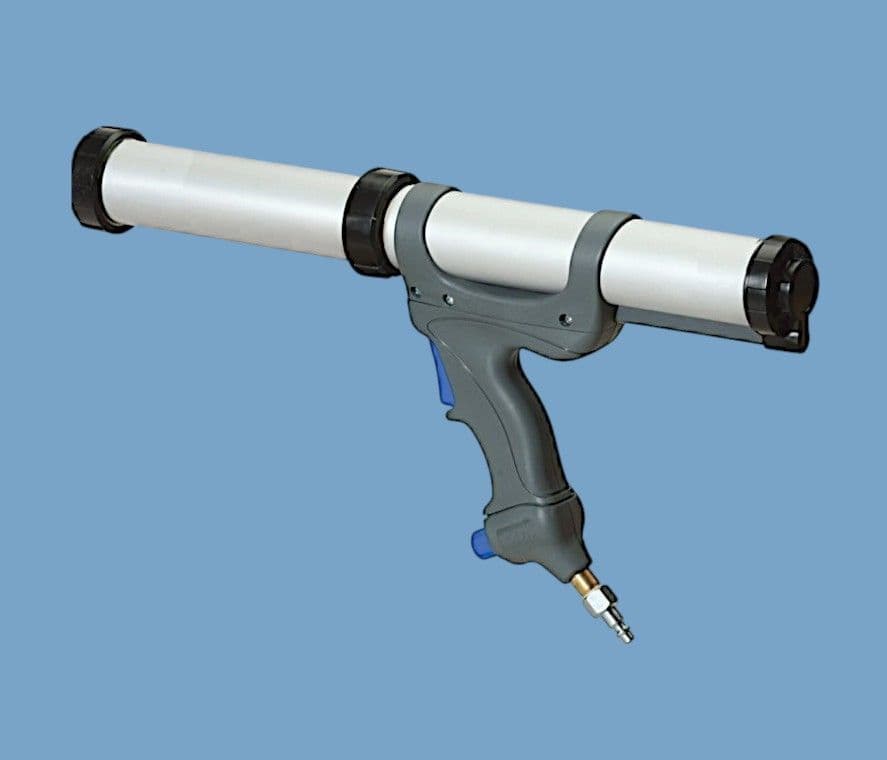

Part 181326 is a high quality pneumatic cartridge and sachet dispenser gun suited to the controlled deposits of materials such as silicones, sealants and pastes that are supplied in 310ml cartridges or 310ml, 400ml and 600ml size sachet or sausage packs.
Connect the dispenser to an airline hose using the 1/4" NPT threaded fitting. Optional airline hoses are available..
This dispenser gun features a built-in adjustable regulator to set the optimum flow rate to suit the material viscosity. The dispenser is supplied with a wiper piston that pushes against the sachet and is easily retracted when empty. Also supplied with a sachet type nozzle.
Part Code: 181326
Weight: 0.99kg / 2.2lbs
Barrel Length: 464mm / 18.27in
Maximum Thrust: 1.5kN
Maximum Pneumatic Pressure: 6.8bar (100psi)
Handle Material: Glass Filled Nylon
Barrel Material: Anodized Aluminium
Tool Component Approvals: CE, REACH
Sachet Capacity: 600mL (20.3oz)
Viscosity: Low/Medium
Standard Color: Black/Grey
Nozzle Dimension: ø38mm / 1.5in
Warranty: 1 Year
Commodity Code: 90289090
Origin: UK
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
