AD900 Series - Red Straight‑Wall Piston for 5cc Syringe Barrels (AD905-SWR)

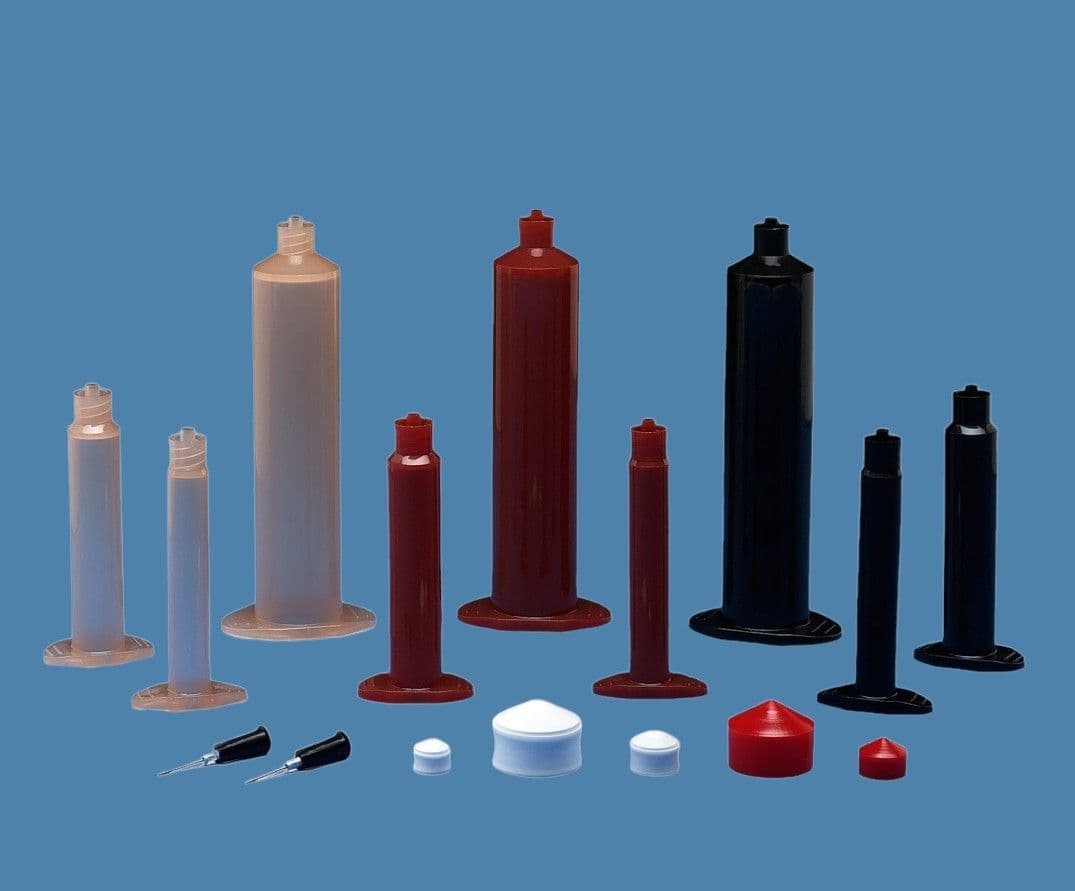

The ADL 900 Series is a premium range of dispensing syringe barrel components designed for use with both manual applicators and pneumatic dispensers. All components are silicone‑free and chloride‑free, ensuring compatibility with sensitive adhesives and delivering reliable accuracy, repeatability and productivity across industrial assembly processes. The range includes sizes 3cc, 5cc, 10cc, 30cc and 55cc.

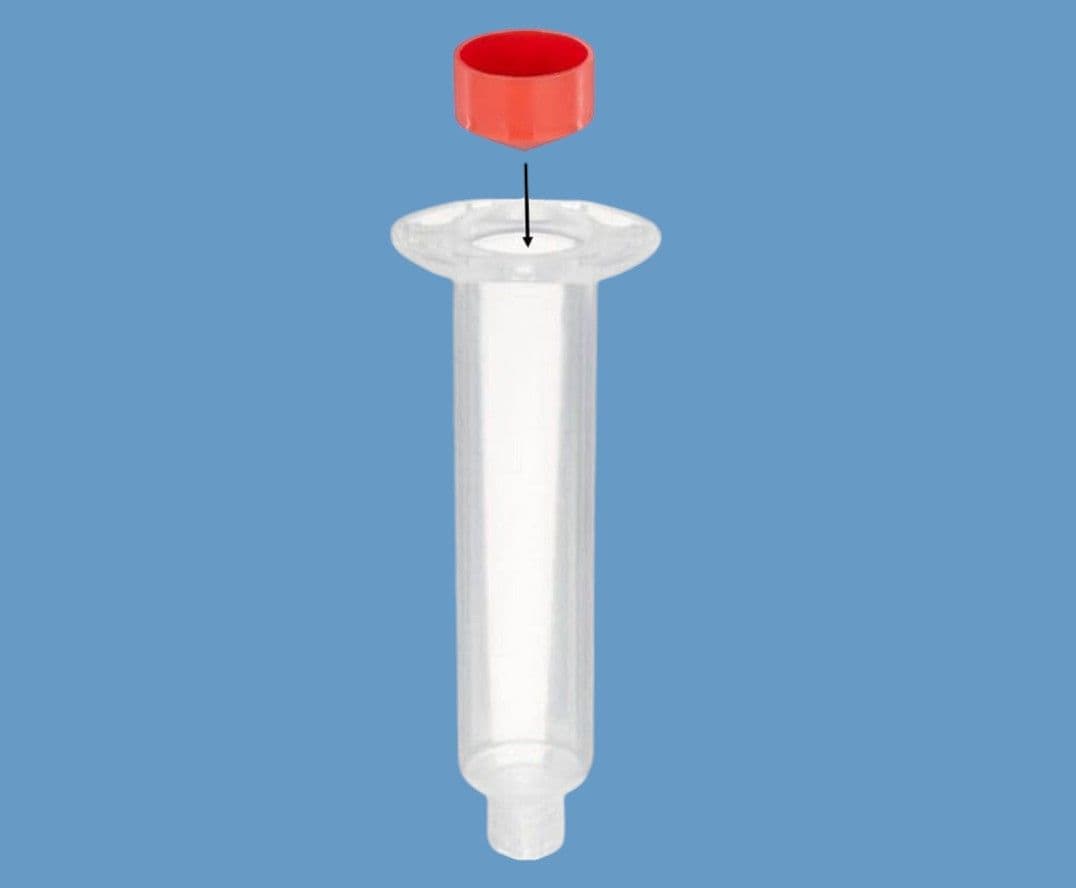

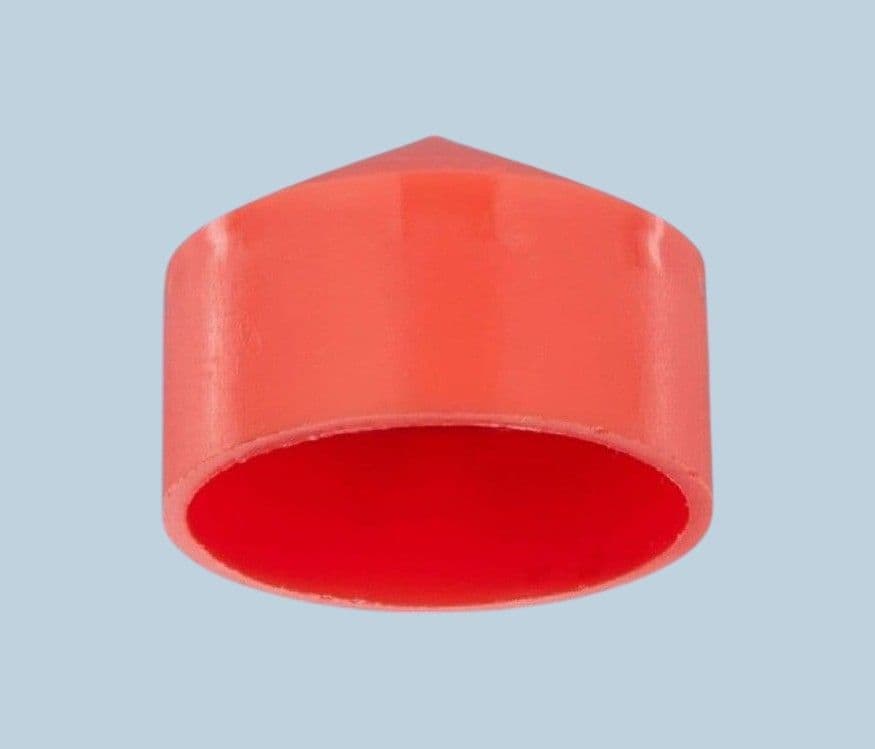

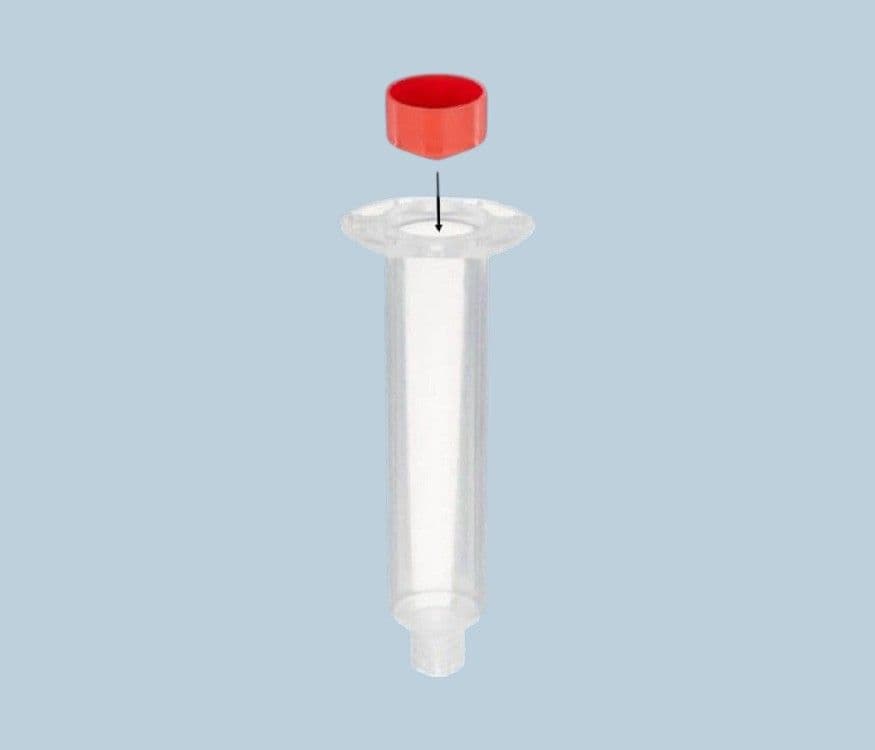

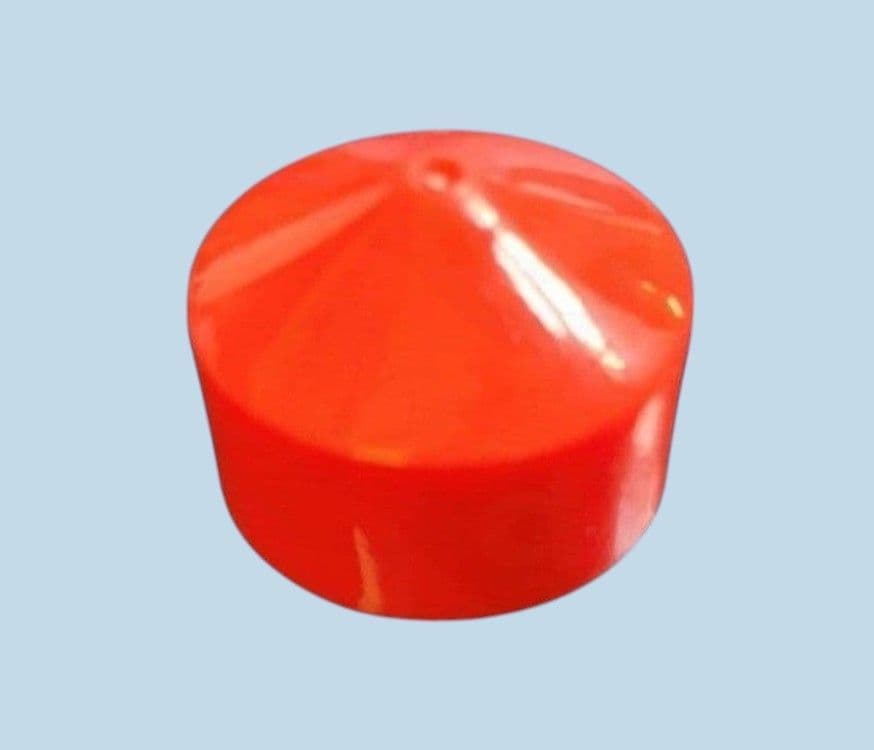

The red straight‑wall piston is engineered to provide smooth, controlled dispensing by distributing pressure evenly across the fluid surface. Its straight‑wall design is recommended for high‑viscosity materials, helping reduce stringing, bouncing, and inconsistent flow during dispensing. Dual wiping edges prevent dripping and minimise material waste by keeping the barrel wall clean as the piston travels.

Rated for up to 100 psi (6.9 bar), these pistons are suitable for demanding production environments and are supplied in sealed packs of 50, 500 or 1000.

Key Features

• Straight‑wall piston for 5cc syringe barrels

• Ideal for high‑viscosity adhesives, sealants and pastes

• Reduces stringing, bouncing, and inconsistent flow

• Dual wiping edges prevent drips and minimise waste

• Ensures even pressure distribution for controlled dispensing

• Compatible with ADL 900 Series barrels

• Rated safe to 100 psi

• Supplied in packs of 50, 500 or 1000

• Manufactured from polyethylene

• Silicone‑free and chloride‑free

Technical Specifications

• Part Code: AD905-SWR

• Material: Polyethylene

• Colour: Red

• Compatible Barrel Sizes: 5cc / 5 ml

• Height: 10.00 mm

• Outer Diameter: 12.70 mm

• Brand: Adhesive Dispensing Ltd

• Commodity Code: 39269097

Applications

Suitable for dispensing:

• High‑viscosity adhesives

• Sealants

• Epoxies

• Silicones

• Gels

• Thick pastes

• Industrial fluids requiring controlled flow

Ideal for electronics assembly, automotive manufacturing, aerospace, medical device production, laboratories, and precision adhesive packaging.

About Adhesive Dispensing Ltd

Adhesive Dispensing Ltd provides a wide range of precision dispensing equipment for almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies. All components ship directly from stock with full quality assurance.
