Adhesive Dispensing Ltd branded 900 series premier dispensing syringe barrels and pistons are silicone and chloride- free and designed to work with dispensing equipment - either manually or on a pneumatic dispenser. The syringe barrels are made from low friction polypropylene to ensure accuracy, repeatability and productivity. Features a double Helix Luer lock for secure dispense tip attachment. Our products are supplied with a no-quibble guarantee against fault or defect.

900 Series Syringe Barrel Kits

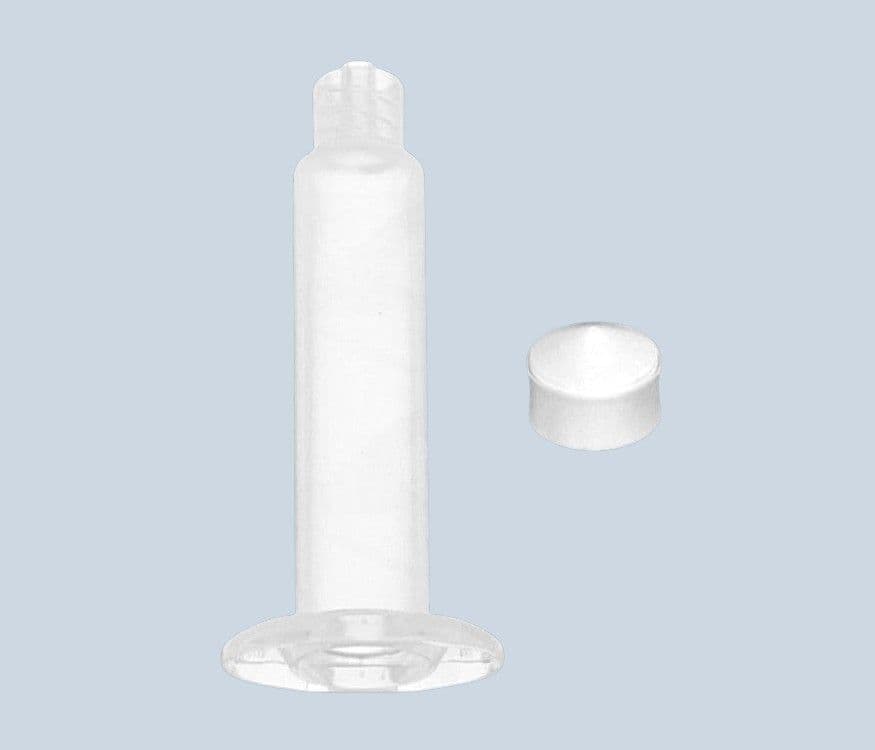

For your convenience these syringe barrels and white standard wiper pistons are packaged together without pistons inserted. Kits with red flat walled pistons or black rubber pistons are also available.

900 Series Syringe Barrels

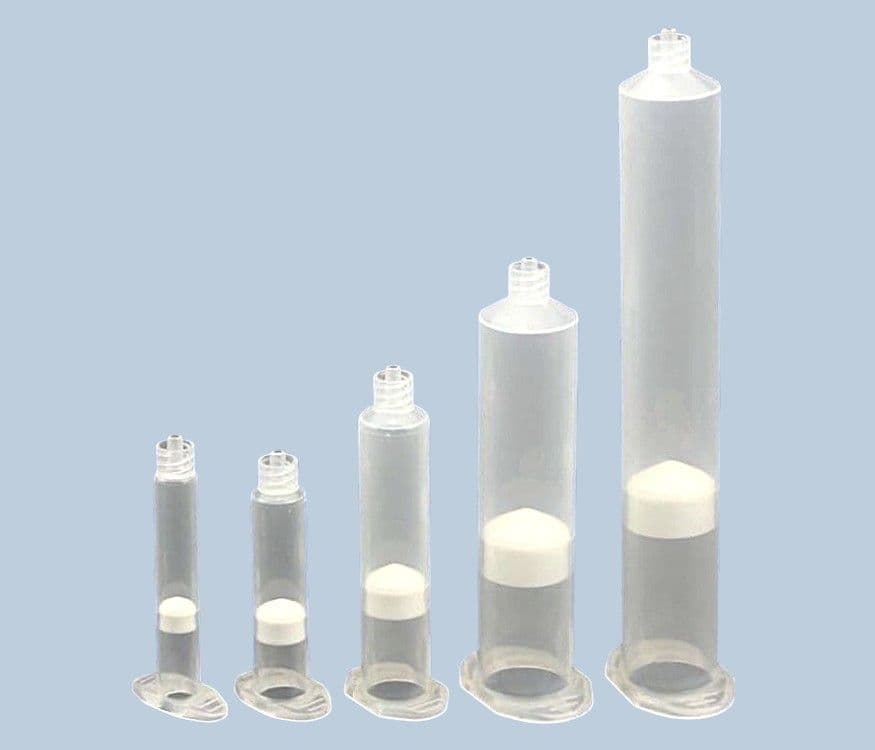

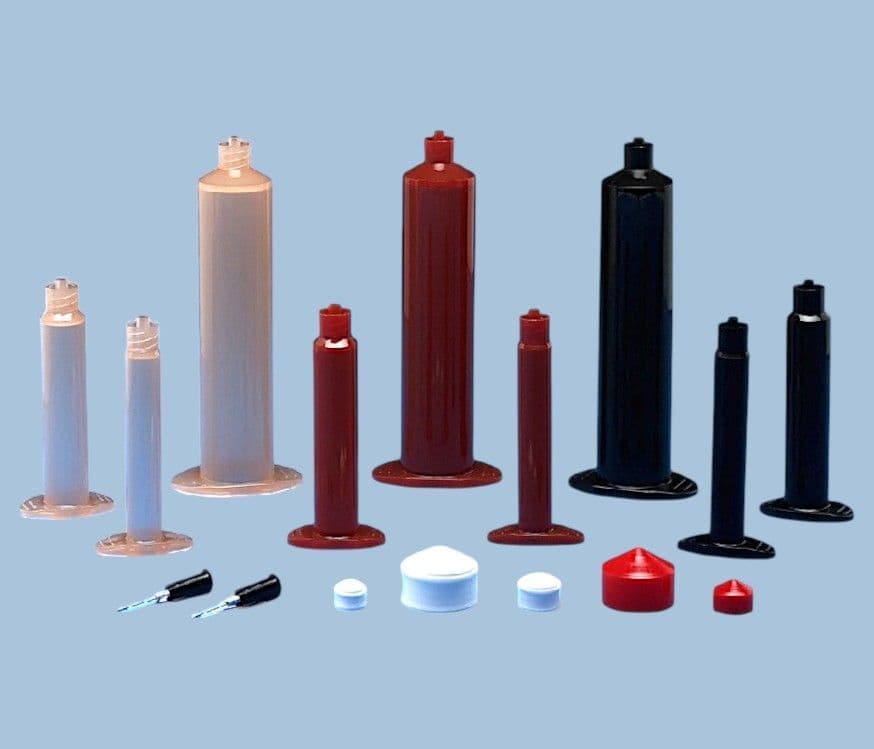

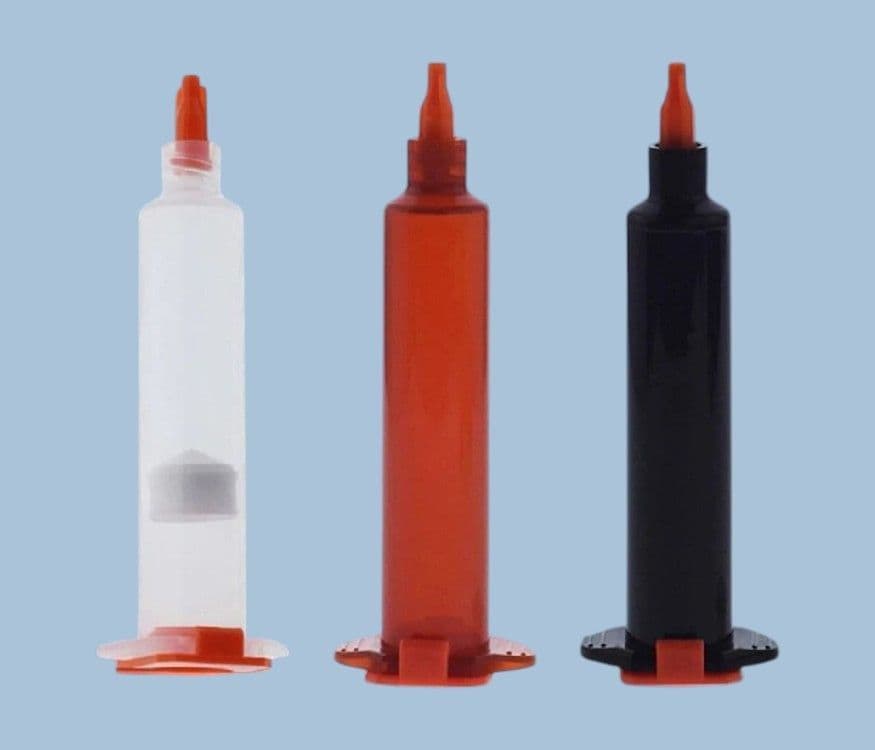

Unique ultra-low draft construction of inner diameter yields high accuracy and stability. They are comprised of industry compliant silicone and chloride free, low friction polypropylene. Available in three different colours: Natural for most generic applications, amber provides protection of UV/visible light block (up to 520nm), but with the ability to see material inside the barrel; and black for total light block. Supplied in bulk packs and packs of 50.

900 Series Air Powered Pistons
Spread the pressure evenly across, using a piston for consistent dispensing of even high viscosity material. Easy flow pistons (blue) require less pressure to dispense and prevent air from becoming entrapped during the dispense process. Tight fit wiper pistons (white) provide a complete seal for low viscosity fluid. Loose fit straight wall pistons (red) prevent stringing and bouncing when dispensing high viscosity material.  Rubber pistons (black) for dispensing high viscosity materials or braze pastes. Supplied in bulk packs and packs of 50. Made from polyethylene or neoprene (rubber version).

Maximum operating pressure is 100 psi (6.9bar). These parts ship direct from stock in a kit of (50) barrels and (50) pistons.

Specifications:
Barrel Material: High Density Polypropylene (HDPP)
Barrel Volume Capacity: 5cc (5ml)
Barrel Overall Length: 3.05" – 77.47mm
Barrel Outer Diameter 0.58" - 14.73mm
Barrel Inner Diameter 0.50" – 12.70mm
Barrel Flange Width 1.23" (31.24mm)
Barrel Hole Outlet Size 0.118" (3.00mm)
Barrel Colour Natural (Clear)
Piston Colour: White
Mfg. Part AD905-NW
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
