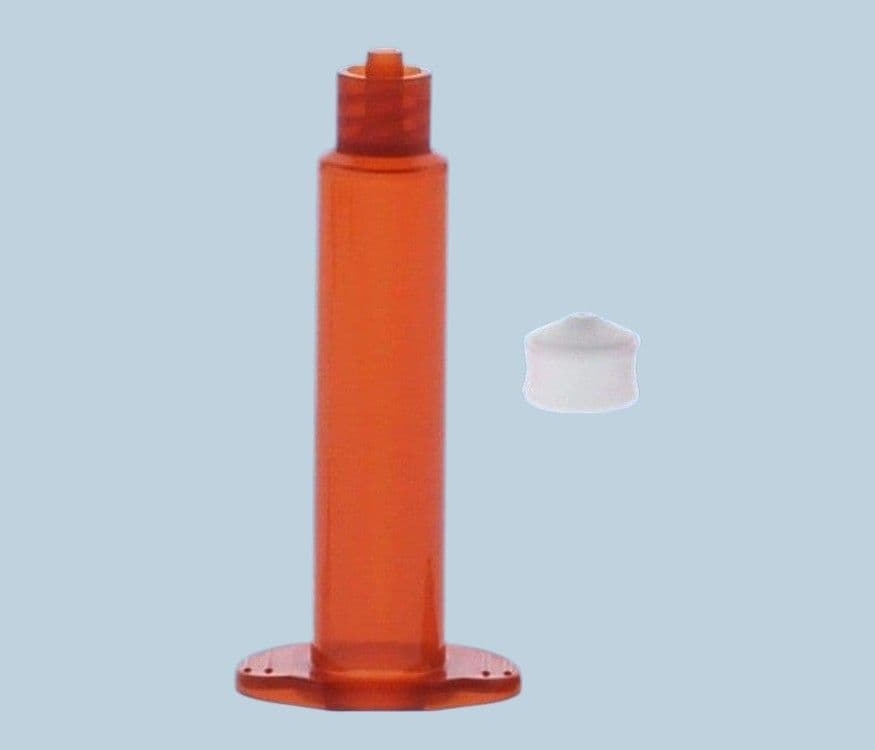

5cc Amber Barrel White Piston Kit AD905-DW

5cc Amber Syringe Barrel White Piston Stopper 905-DW 7050LL1DWPK Adhesive Dispensing Techcon
5cc Amber Barrel White Piston Kit AD905-DW
Product Code: AD905-DW

Polypro. Length: 3.05" – 77.47mm. OD: 0.58" - 14.73mm. ID: 0.50" – 12.70mm

Adhesive Dispensing branded AD900 series dispensing syringe barrels and pistons are silicone and chloride- free and designed to work with dispensing equipment - either manually or on a pneumatic dispenser. The syringe barrels are made from low friction polypropylene to ensure accuracy, repeatability and productivity. Features a double Helix Luer lock for secure dispense tip attachment. Our products are supplied with a no-quibble guarantee against fault or defect.

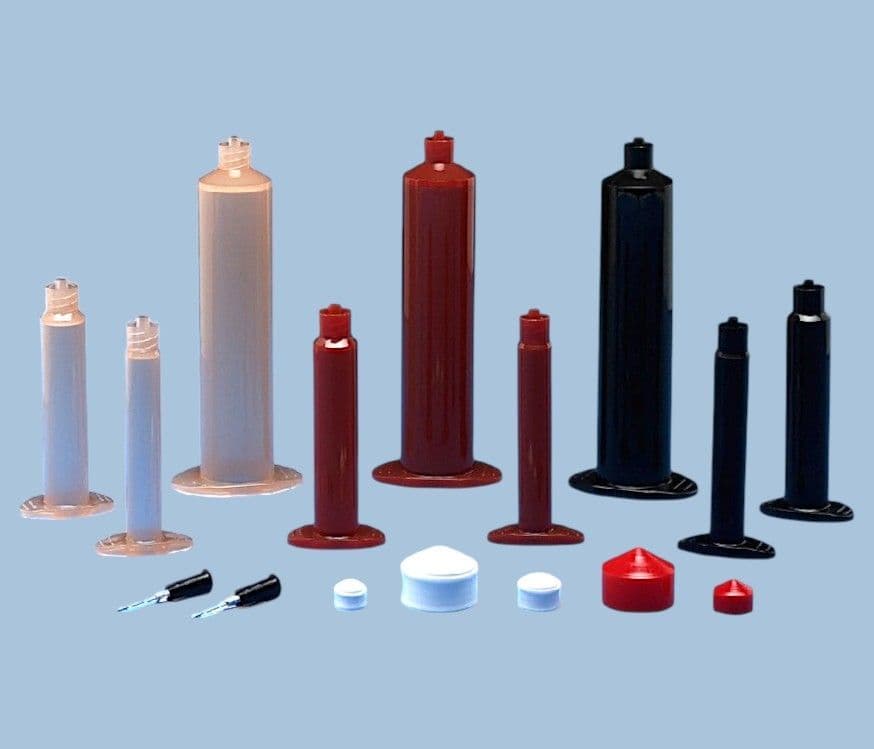

AD900 Series Syringe Barrel Kits
For your convenience syringe barrels are packed with either white standard wiper pistons, red flat walled pistons, blue easy flow pistons or black rubber pistons. They are packaged together without the pistons inserted.

AD900 Series Syringe Barrels
Unique ultra-low draft construction of inner diameter yields high accuracy and stability. They are comprised of industry compliant silicone and chloride free, low friction polypropylene. Available in three different colours: Natural for most generic applications, amber provides protection of UV/visible light block (up to 520nm), but with the ability to see material inside the barrel; and black for total light block. Supplied in bulk packs and packs of 50.

AD900 Series Air Powered Pistons
Spread the pressure evenly across, using a piston for consistent dispensing of even high viscosity material. Easy flow pistons (blue) require less pressure to dispense and prevent air from becoming entrapped during the dispense process. Tight fit wiper pistons (white) provide a complete seal for low viscosity fluid. Loose fit straight wall pistons (red) prevent stringing and bouncing when dispensing high viscosity material.  Supplied in bulk packs and packs of 50. Made from polyethylene.

Barrel Material: High Density Polypropylene (HDPP)
Barrel Volume Capacity: 5cc (5ml)
Barrel Overall Length: 3.05" (77.47mm)
Barrel Outer Diameter 0.50" (12.70mm)
Barrel Inner Diameter 0.45" (11.41mm)
Barrel Flange Width 1.23" (31.24mm)
Barrel Hole Outlet Size 0.118" (3.00mm)
Barrel Colour Amber (Tinted)
Piston Colour: White (Opaque)
Mfg. Part AD905-DW
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £21.87   Exc VAT
  • Product Brand:Adhesive Dispensing Ltd
  • MPN: AD905-DWLead Time: Ships Within 24 HoursPack Size: 50
