55cc Manual Syringe Gun with Full Kit TS755SG-KIT

55cc Manual Syringe Gun with Full Kit TS755SG-KIT
Product Code: TS755SG-KIT

Manual 55cc syringe gun full kit for hand application of pastes, gels and adhesives

A syringe gun is a hand operated manual dispenser that uses industrial syringe barrels and precision tips to apply controlled beads and dots of pastes, gels, glues, adhesives, silicones, greases and other assembly fluids. You load the syringe barrel with your material, insert a wiper piston, attach and tip and hold the gun one-handed. When you squeeze the trigger, the rod moves down against the piston forcing out the material. The luer lock tip controls the deposit without oozing or drooling.

Manual syringe gun dispensers are simple and cost-effective devices for use with standard industrial syringe barrels. Perfect for lower volume product assembly, product re-work, repair work and remote field work.

Syringe guns offer a dispensing solution for applying most low, medium and high viscosity pastes. Including flux, PVA, solder, grease, gels, silicones, greases and other liquids. A portable and lightweight manual dispenser adding control and consistency. With a 7:1 ratio mechanical leverage on the rod for effortless trigger movement. The rod moves 3mm (1/8 Inch) once pressed to provide controlled deposits.

Push the top button to release the plunger rod and pull it back ready for barrel attachment. Simple bayonet twist on/ twist off barrel secure connection. Barrels are held to the syringe gun by the flange. This ensures the barrel does not break or move under constant use of hand pressure. This 55cc sized barrel dispenser is also available conveniently supplied complete with our full component kit (order part TS755SG-KIT).

This basic syringe gun dispenser is shipped with the following parts:

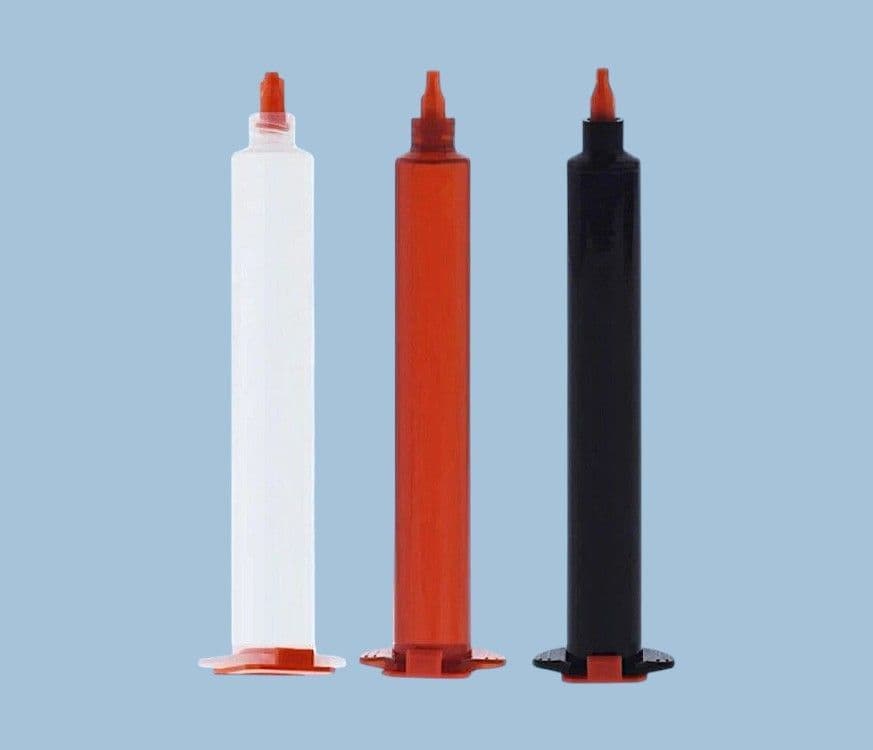

1 x 55cc Barrel (Choose Clear, Black or Amber Tint Colour)
1 x 30cc/55cc White PE Wiper Piston
1 x 30cc/55cc Orange Snap-on End Cap Seal
1 x Orange Twist-On Tip Cap Seal
5 x 18 Gauge Green Smooth Flow Tapered Tip

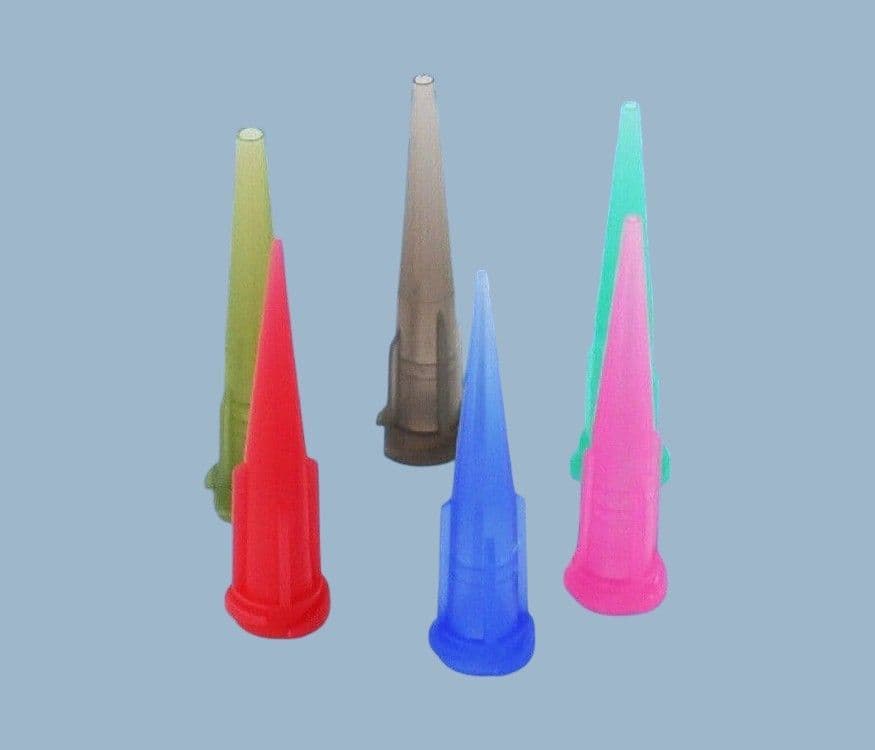

If ordering the full kit, TS755SG-KIT, a full component kit is included with the gun. This includes (20) barrels, (20) pistons, (20) end caps, (20) tip caps and (50) assorted tapered dispensing tips.

Do not use this product with Cyanoacrylate adhesives, rapid curing pre-mixed 2K epoxies or very high viscosity pastes. Contact us for more suitable solutions for handling these materials.

Specifications:
Weight: 0.1kg/0.2lbs
Gun Length: 215.0mm
Maximum Thrust: 1.5kN
Handle Material: Glass Filled Nylon
Frame Material: Glass Filled Nylon
Tool Component Approvals: REACH
Cartridge Capacity: 55mL (55cc)
Mechanical Advantage Ratio: 7:1
Viscosity: Low/Medium
Standard Body Colour: Red
Commodity Code: 73269098
Materials: Polypropylene/ Reinforced Nylon
Warranty: 1 Year
Brand: Adhesive Dispensing Ltd

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £51.50   Exc VAT
  • Product Brand:Adhesive Dispensing Ltd
  • MPN: TS755SG-KITLead Time: Ships within 24 HoursSize: 55cc
Write a Review

Write an online review and share your thoughts with other shoppers!

Be the first to review this product

Guns are portable and can be used in a factory production or assembly department as well as for repair and re-work. Guns are commonly used in the field for repair or maintenance applications. Common applications include:-

  • Deposits of solder paste
  • Deposits of solder flux
  • Grease to lubricate bearings
  • PVA glue to small furniture joints
  • RTV to seal cases
  • Silicone deposits and beads
  • Gasket sealant and silicone repair
  • Shots of roach insecticides
  • General adhesive applications
