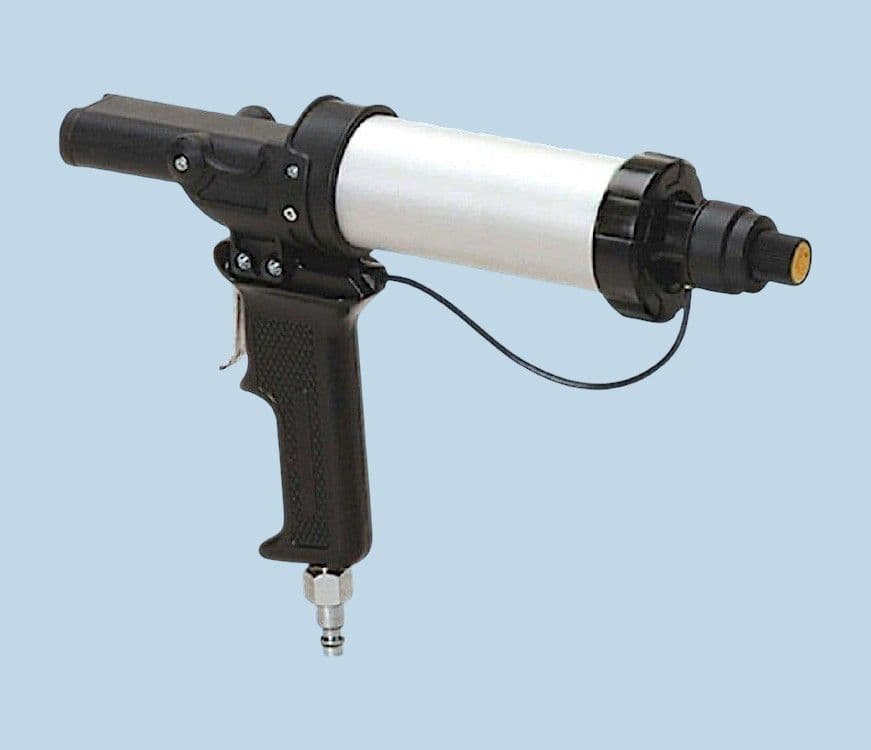

ADCBA-25D Pneumatic Adhesive Dispenser - Precision for 50ml 1:1 Cartridge Systems
Boost your assembly efficiency with the ADCBA-25D adhesive dispenser, engineered for use with 50ml dual-component cartridges in a 1:1 ratio. Designed to deliver precise material control across aerospace, electronics, construction, and automotive sectors, this compact and durable pneumatic dispensing gun is the go-to choice for professionals demanding reliability and performance.
Key Features

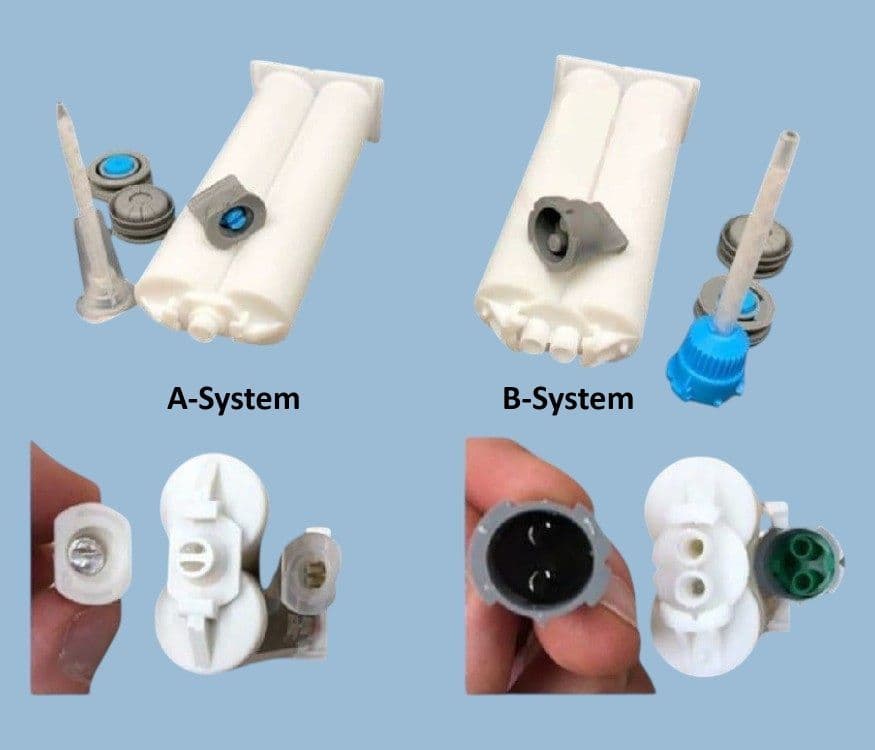

- Optimized for 50ml 1:1 Cartridges
Compatible with both pre-filled adhesive cartridges and empty refillable sets.
- Pneumatic Precision Control
Adjustable flow control knob allows fine-tuning based on material viscosity for consistent output through the static mixing nozzle.
- Durable Construction & Ergonomic Design
Lightweight build with high-strength nylon, polypropylene, and steel components for long-term industrial use.
- Dual Metal Drive Rods
Ensure even, continuous pressure for smooth dispensing into the mixing chamber.
- Traceability & Assurance
Supplied boxed with user guide, batch-coded label, and 1-Year Warranty included.
Technical Specifications
- ✅ Part Code - ADCBA-25D
- ✅ Cartridge Size - 50ml – 1:1 Ratio
- ✅ Maximum Pressure – 75 PSI
- ✅ Thrust Force - 1.0 kN @ 75 psi (235kgf)
- ✅ Materials - Nylon, Polypropylene, Steel
- ✅ Colour - Silver / Black
- ✅ Weight - 0.7 kg
- ✅ Length - 328mm
- ✅ Height - 194 mm (incl. trigger/handle)
- ✅ Brand - Cox Medmix
- ✅ Approvals - CE, REACH
- ✅ Origin - UK
- ✅ Commodity Code - 90289090
- ✅ Warranty - 1-Year Manufacturer Coverage
Compatible Adhesives & Fluids
Use the ADCBA-25D to dispense a wide range of assembly fluids, including:
- Epoxies
- Silicones
- Doming resins
- Polyurethanes
- Other two-component materials
Why Choose Adhesive Dispensing Ltd?
With a vast portfolio of industrial dispensing systems and cartridge accessories, Adhesive Dispensing Ltd supports industries worldwide with solutions tailored to high-performance adhesive applications. Whether you're in precision electronics, aerospace, automotive, medical device, engineering or renewable energy, we provide tools to optimise your workflow.
