50ml dual cartridge sets 4:1 ratio 454000-01

50ml dual cartridge 4:1 ratio 116676 AA 050-04-10-03 Sulzer Mixpac MedMix

50ml dual cartridge sets 4:1 ratio 454000-01

Product Code: 454000-50

50ml, 4:1, PP white, air vented plug seal pistons, tip cap, bayonet nozzle attachment.

Cartridge Sets for Two-Component Adhesives

The dual system is available in 50ml, 200ml and 400ml sizes. All 3 systems - 50ml, 200ml and 400ml, are available in 1:1, 2:1, 4:1 and 10:1 mix ratios and take a variety of mixer nozzles. Both components are stored in the two chambers of the dual cartridge system and are then dispensed simultaneously through the static mixer, where thorough mixing takes place.

The static mixer nozzles are available in different sizes with different volumes and a variety of mixing elements. One of the main benefits of the system is that not all of the contents of the cartridge have to be mixed at a time. The cartridge can be easily closed and stored for further use if not fully used, without the material curing. Packs include the cartridge, wiper pistons and cap seals. Compatible with industry standard applicator guns.

Dual cartridges are supplied in packs of 50 or 500 and include tip cap seal pre-attached and the correct ratio pistons. The piston type with this kit are the air vented type with inner cap seal plug. This is a 4:1 ratio cartridge set only.

Part ID: 454000-01 - 116676 - AA 050-04-10-03
Material: Polypropylene
Colour: White Cartridge/ Grey Pistons/ White Dust Cap
Size: 50ml
Maximum Pressure: 100 PSI
Ratio: 4:1 (by volume)
Outlet: Bayonet Nozzle Attachment
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Brand: Medmix

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Pack Size Options

Price: £57.50 Exc VAT

Product Brand:Sulzer Mixpac Medmix Statomix
MPN: 454000-50Lead Time: Ships 24 Hours - Stock ItemPack Size: 50

Write a Review

Write an online review and share your thoughts with other shoppers!

Be the first to review this product

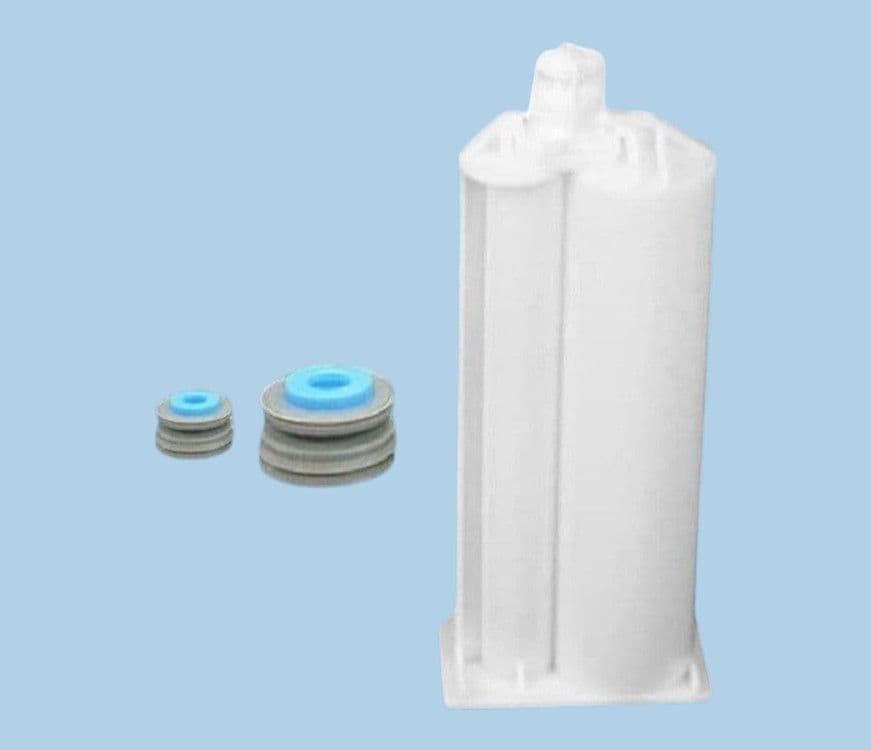

Cartridge sets are supplied unassembled. Pistons are easily inserted into the cartridge once adhesive is poured in. Each piston features a vent hole with push-in cap. This allows air to escape once the piston is pushed down onto the level of the adhesive. Once the piston is in, the push cap is pressed down to seal the hole. These cartridges are the bayonet type "A" System. Use mixer nozzles "MA" with these parts.
