50ml dual cartridge sets 1:1 ratio AD451000-3

50ml Dual Cartridge 1:1 Ratio 451000 -3 Adhesive Dispensing Ltd Sulzer Mixpac
50ml Dual Cartridge 1:1 Ratio 451000 -3 Adhesive Dispensing Ltd Sulzer Mixpac 50ml Dual Cartridge 1:1 Ratio 451000 -3 Adhesive Dispensing Ltd Sulzer Mixpac 50ml Dual Cartridge 1:1 Ratio 451000 -3 Adhesive Dispensing Ltd Sulzer Mixpac
50ml dual cartridge sets 1:1 ratio AD451000-3
Product Code: AD451000-3-50

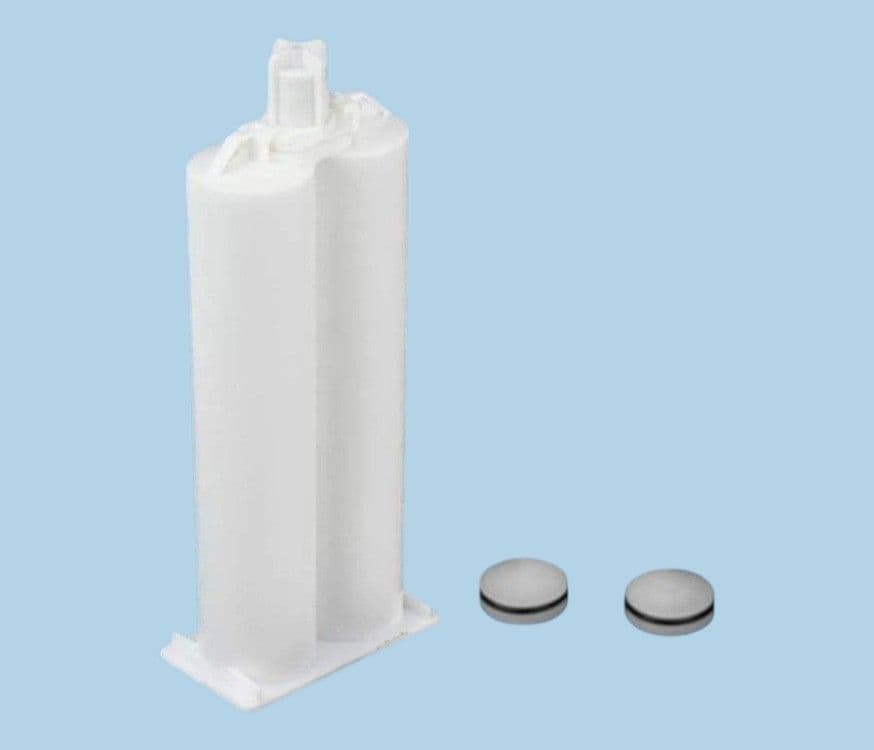

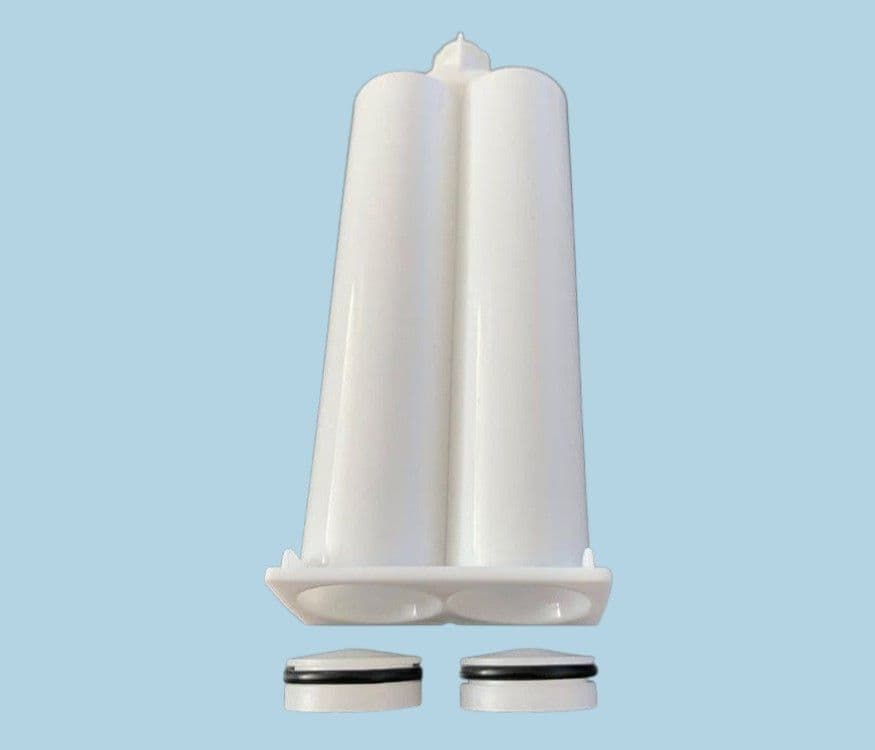

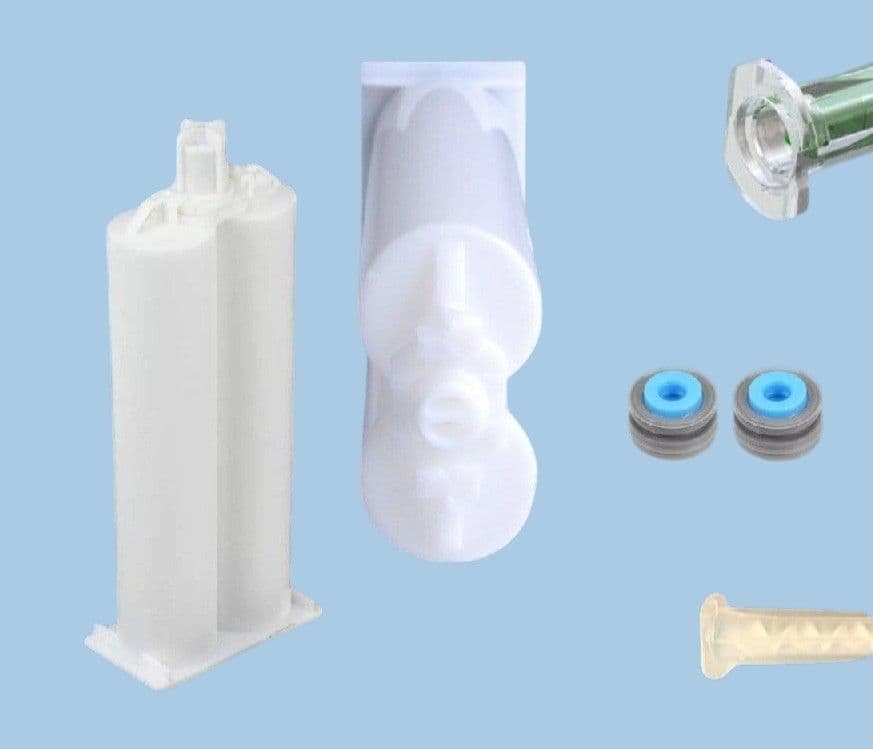

50ml, 1:1, PP white, rubber O-ring lip seal pistons, tip cap, bayonet nozzle attachment.
Cartridge Sets for Two-Component Adhesives

The dual system is available in 50ml, 200ml and 400ml sizes. All 3 systems - 50ml, 200ml and 400ml, are available in 1:1, 2:1, 4:1 and 10:1 mix ratios and take a variety of mixer nozzles. Both components are stored in the two chambers of the dual cartridge system and are then dispensed simultaneously through the static mixer, where thorough mixing takes place.

The static mixer nozzles are available in different sizes with different volumes and a variety of mixing elements. One of the main benefits of the system is that not all of the contents of the cartridge have to be mixed at a time. The cartridge can be easily closed and stored for further use, without the material curing. Packs include the cartridge, wiper pistons and cap seals. Compatible with industry standard guns.

Dual cartridges are supplied in packs of 50 or 500 and include tip cap seals pre-attached with the correct number and ratio pistons. The pistons in this kit are the non-vented type. Flatter with a rubber O-ring. Ideal for doming resins.
Part ID: 451000-3
Material: Polypropylene
Colour: White Cartridge/ Grey Piston/ White Cap
Size: 50ml (25ml + 25ml)
Ratio: 1:1 (by volume)
Outlet: Bayonet nozzle attachment
Maximum Pressure: 100 PSI
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Pack Size
Price: £47.50   Exc VAT
  • Product Brand:Adhesive Dispensing Ltd
  • MPN: AD451000-3-50Lead Time: Ships 24 Hours - Stock ItemPack Size: 50
