50ml dual cartridge sets 10:1 ratio 116373

50ml dual manual syringe cartridge syringe 10:1 ratio AB S50-10-20-01 Adhesive Dispensing Ltd

Product Code: 116373-10

50ml, 10:1, PBT natural, self-bleed vented pistons,tip cap, B system nozzle attachment.

Syringe Sets for Two-Component Adhesives

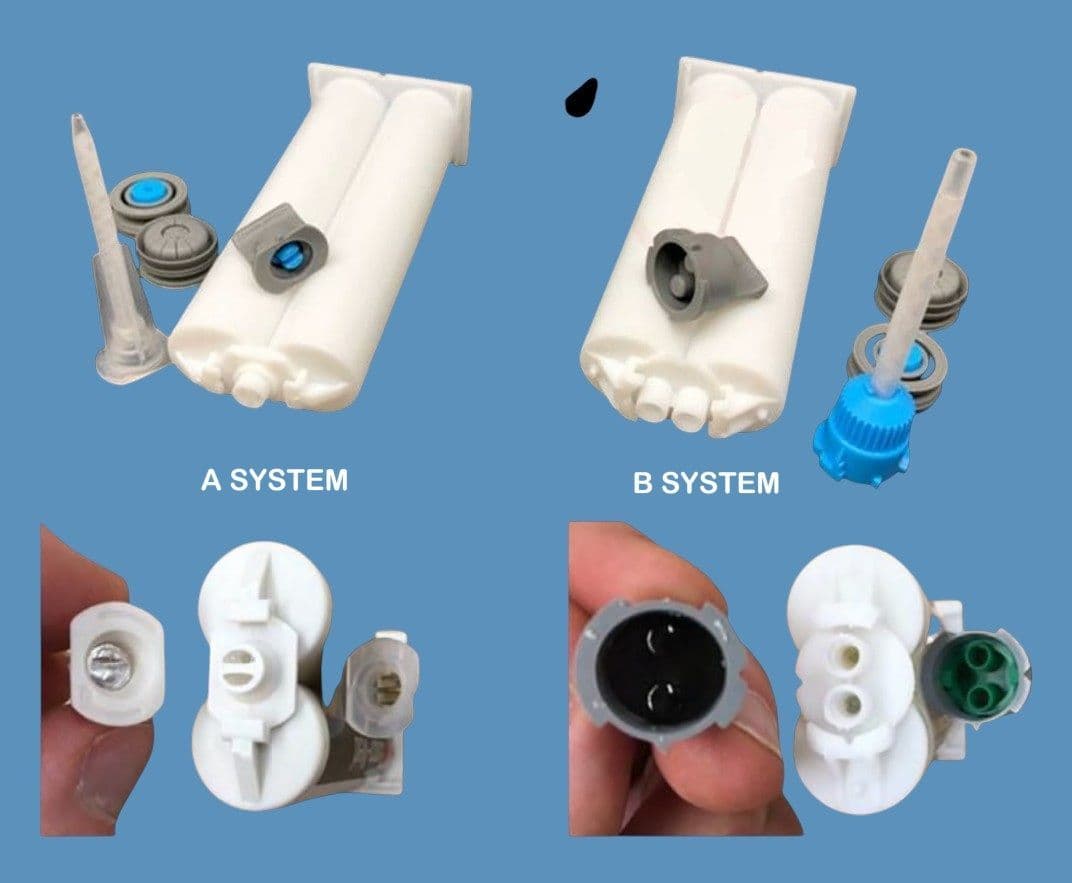

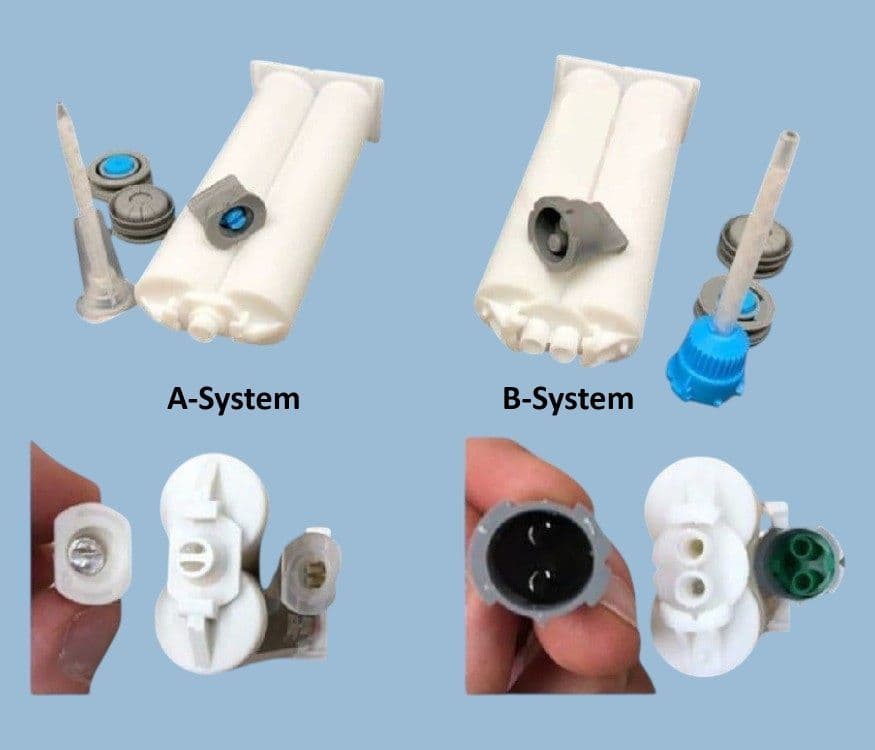

The B system dual system is available in 25ml and 50ml sizes. All sizes are available in 1:1, 2:1, 4:1 and 10:1 mix ratios and take a variety of mixer nozzles. Resin and catalyst are stored in the two chambers of the dual cartridge system and are then dispensed simultaneously through the static mixer, where thorough mixing takes place.

The static mixer nozzles are available in different sizes with different volumes and a variety of mixing elements. One of the main benefits of the system is that not all of the contents of the cartridge have to be mixed at a time. The cartridge can be easily closed and stored for further use, without the material curing. Packs include the cartridge, wiper pistons and cap seals. Compatible with industry standard guns. This version is the 50ml Oval (rounded) end shape 10:1 ratio mix.

Dual cartridges are supplied in different pack sizes and include tip cap seals pre-attached with the correct number and ratio pistons. Sets are supplied ready to use. This part code is for the dual syringes, pistons and caps in the same box.

Part ID: AB S50-10-20-01
Material: PBT
Colour: White Syringe/ Pistons/ Natural Plunger Rod
Size: 50ml
Ratio: 10:1 (by volume)
Outlet: B system nozzle attachment
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Pack Size

Price: £21.00 Exc VAT
