50ml 1:1 Dual Cartridge Retainer ADV-50-11B

50ml Pneumatic Dual Retainer 1:1 Ratio ADV-50-11B Adhesive Dispensing Ltd

50ml 1:1 Dual Cartridge Retainer ADV-50-11B

Product Code: ADV-50-11B

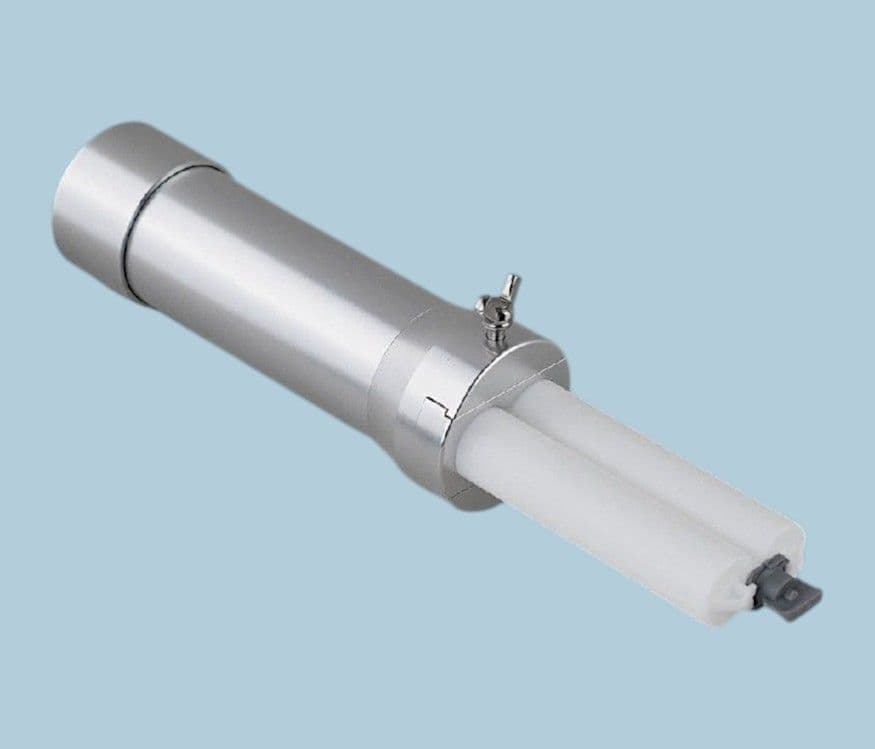

Pneumatic twin cartridge retainer. 50ml. For 1:1 ratio B-System style. Use with pneumatic dispenser

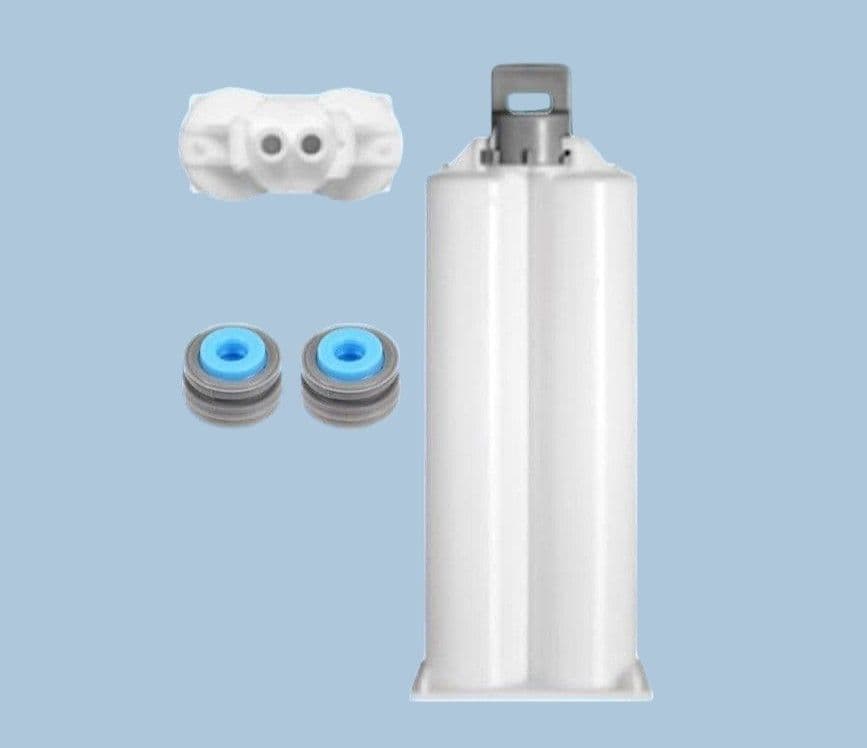

For adhesives which are supplied in 50ml two part, side-by-side syringe cartridges and that push the adhesive through a static mixing nozzle. The lightweight portability and durable construction of the pneumatic retainer feed system make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive.

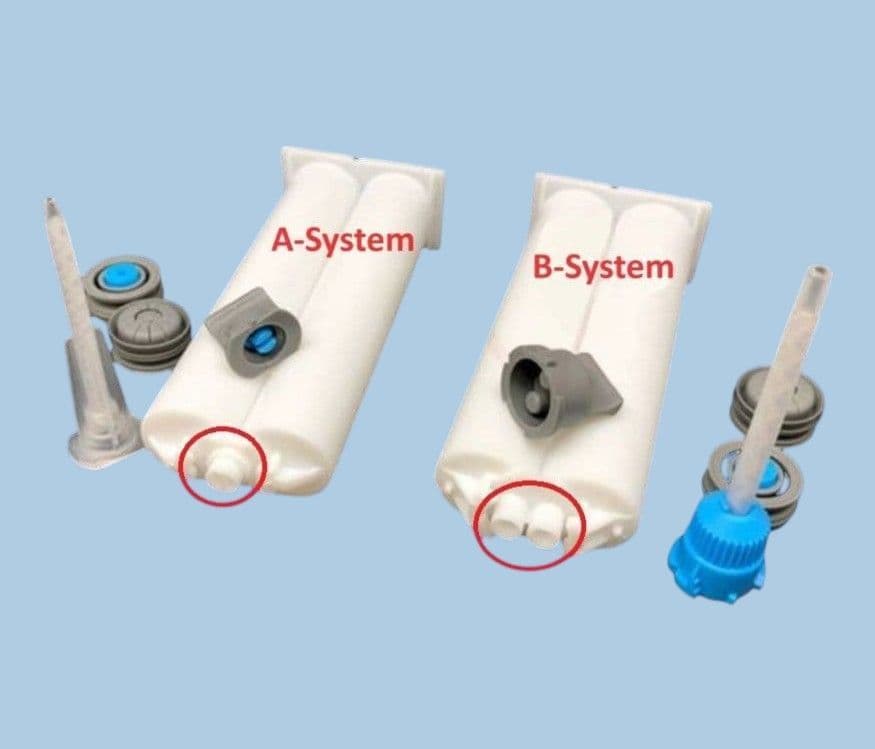

This version is for the 50ml 1:1 Ratio in the B-System style square cartridge design. If you use the A-System 50ml 1:1 cartridge version, order that ADV-50-11A version instead. See image.

The system is supplied with an airline hose connector that attaches directly to our timed pneumatic dispensers with vacuum suck-back such as the 1000T or TS9150. When the cartridge is empty, use the vacuum suck-back on your dispenser to draw the plungers back. Ideal for use with prefilled adhesive cartridges. This product can be hand held of fixed onto a benchtop stand or XYZ dispensing robot. Air pressure is fed from the dispenser to the 50ml cartridge to allow controlled application of epoxies, polyurethanes, silicones, potting compounds and other 1:1 materials.

Warranty: 1 Year

Max Pressure: 100 PSI
Weight: 417g
Length: 160mm
Cartridge Size: 50ml 1:1 ratio
Colour: Silver
Materials: Aluminium, Polypropylene, Steel
Commodity Code: 90289090
Brand: ADL

Price: £145.00 Exc VAT
