5 Litre Tank Filling Station 1000-1212-5

5 Litre Tank Filling Station 1000-1212-5
Product Code: 1000-1212-5

Size: 5 Litre. Max Pressure: 75 PSI. Pressure Pot: Stainless Steel. Type: Dispenser Activation.
An efficient method of transferring low viscosity liquids and adhesives into disposable syringe barrels or bottles. This barrel loader is supplied with a pneumatic adjustable timed benchtop dispenser to control the operation.

The model 1000-1212-5 barrel loader contains a 5 litre pressure stainless steel pressure pot for handling liquids up to 40,000 cps. Fluid is pressurised from the tank, along a fluid line to the TS1212 valve. This valve is fixed into a bench stand and allows the syringe to be twisted on for controlled bottom filling or the valve to fill into a bottle. A 1000T digital timed dispenser controls the TS1212 valve so it can be set to make repeat deposits into each barrel. This valve will handle most fluids including Cyanoacrylates, UV cure, epoxies, inks, paints, vaping fluids, gels, solvents and lubricants.

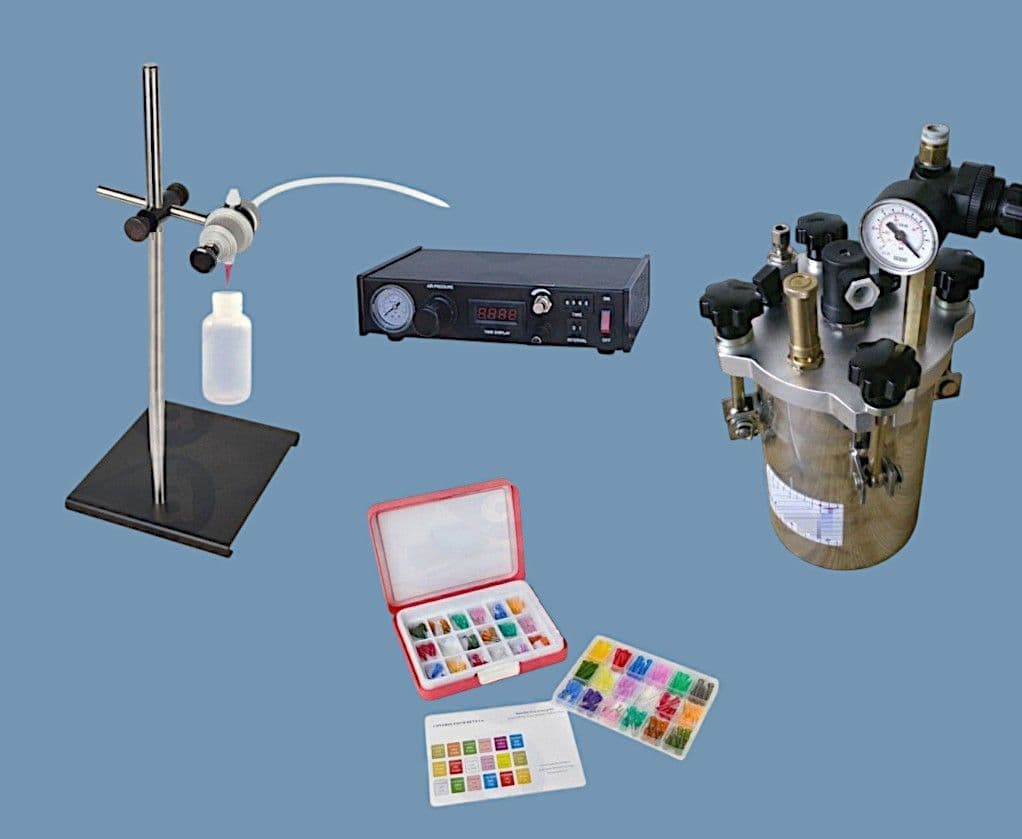

The system is operated by an electric foot switch. It is simple to set and very easy to get consistent results. The 1000-1212-5 includes pneumatic bench mounted dispenser, pinch tube dosing valve, adjustable benchtop valve stand, fluid lines in clear and black, airline hoses for connection to air supply, cap seals and fittings. The tank can be filled with material of choice.

The digital dispenser controlling this system allows timed filling to each syringe barrel to eliminate guesswork and improve repeatibility. This system is operated by electric foot switch (supplied). Barrel filling (from the bottom tip end) can reduce air entrapment and eliminate mess and is the method professional repackers use.


Part ID: 1000-1212-5
Materials: Polyethylene/ S Steel/ Nylon/ PP
Capacity: 5 Litre
Weight: 8kg
Max Pressure: 75 PSI


Warranty: 12 Months Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £1,090.06   Exc VAT
  • Product Brand:ADL
  • MPN: 1000-1212-5Max Pressure: 75 PSILead Time: 24-72 Hours
