5 Litre Pressure Pot 0-75 psi regulator TS2250

Name: 5 Litre Pressure Pot 0-75 psi regulator TS2250 - B. Pressure Pot with Low Level Sensor
Brand: Adhesive Dispensing Ltd
SKU: TS2250LS
Price: 1188.00 GBP
Availability: InStock

TS2250 Pressure Pot Reservoir Tank 5 litre tank Adhesive Dispensing Ltd

Product Code: TS2250

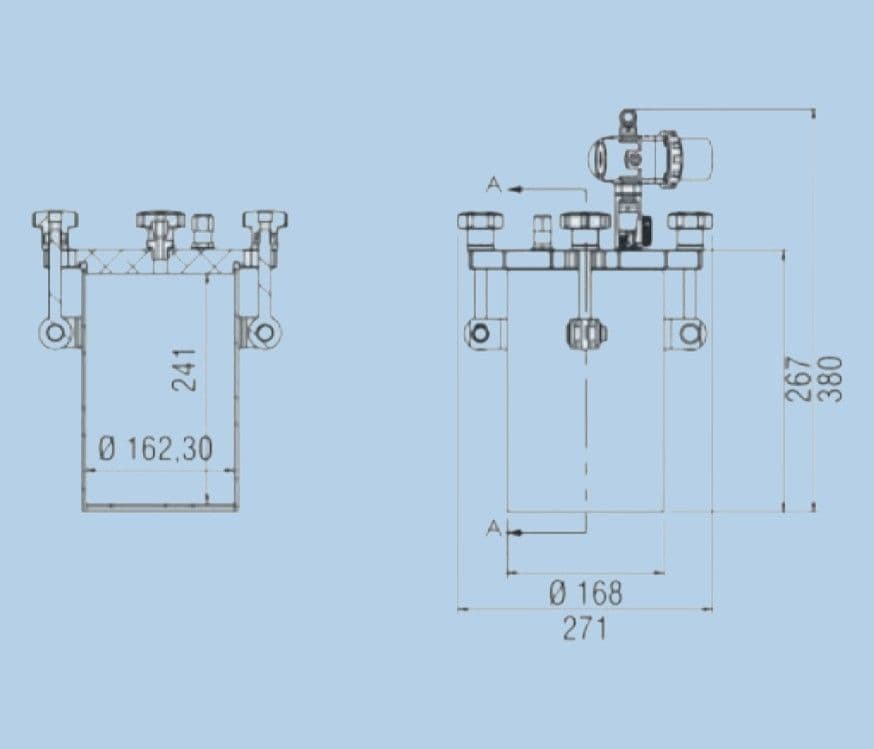

Stainless. 180mm W x 271mm H. Chamber: 162mm W x 242mm H. 4.7kg. Max Pressure: 100 psi.

The TS2250LS pressure pot is designed to accommodate many solvents and assembly fluids, as well as cyanoacrylate adhesives and UV cure adhesives straight out of the manufacturers glue bottles or with liquids poured into the chamber and using an optional tank liner. It has a stainless steel compression fitting for a continuous fluid tube path from inside the pot to the point of use (often a dispensing valve) but other tubing fittings are available. Airtight seals ensure no leakage or air entrapment problems. 75 psi operating air pressure easily handles fluid with viscosity up to 35,000 CPS.

The pressure gauge and pressure regulator are located on top for easy reading and access. When dispensing adhesives, a container or bottle or liner should be placed inside the tank chamber. Do not pour adhesives directly into the pot unless using a polyethylene or aluminium replaceable tank. Main tank body is stainless steel and the lid is aluminium. The low level sensor makes it possible to receive an electric signal when the fluid level in the tank reaches 20-30% allowing the user to refill before empty.

Material: Stainless Steel Body/ Aluminium Cap
O-Ring Material: EPR Rubber
Colour: Silver and Blue
Outer Diameter Width: 180mm
Overall Height: 3801mm
Inner Chamber Width: 162.3mm
Inner Chamber Height: 241.2mm
Tank Thickness: 3mm
Lid Thickness: 15mm
Air Inlet: 6mm Air Pipe Push-Fit or 1/4" NPT Thread
Fluid Outlet: 6x8mm or 6x4mm Tube Diameters (located centre of tank lid)
Weight: 5.0 kg
Max Pressure: 75 psi (5 BAR) - safety valve set at 5 bar
Warranty: 1 Year
Details: CE certified and Rohs compliant

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Type

Price: £795.00 Exc VAT
