400ml Pneumatic Gun 10:1 Ratio DP2X 400-10-50-01

Name: 400ml Pneumatic Gun 10:1 Ratio DP2X 400-10-50-01
Brand: Sulzer
SKU: DP2X 400-10-50-01
Price: 380.54 GBP
Availability: InStock

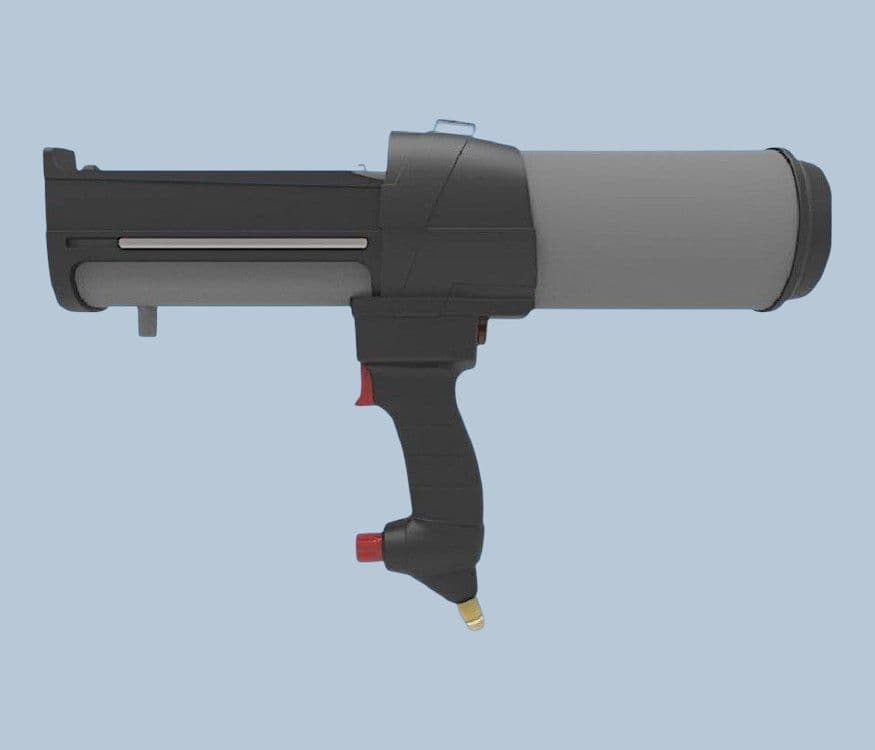

400ml Pneumatic Dual Dispenser Gun 10:1 Ratio DP2X 400-10-50-01 Sulzer Mixpac adhesive dispensing

Product Code: DP2X 400-10-50-01

Air powered twin cartridge gun 400ml. For 10:1 ratio cartridges only. Actuator Ø 85mm.

For epoxies, adhesives and other materials that are supplied in 400ml two part, side-by-side 10:1 ratio cartridges with the use of a static mixing nozzle. The lightweight and durable construction of our dual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive. These new DP2X dispenser guns are replacing the old DP200 series. Stocks are being completed and orders will be shipped as soon as possible.

Specifications
Part ID: DP2X-400-10-50-01
Weight 2.66kg / 5.87lbs
Length: 486mm / 19.1n
Maximum Thrust: 5.0kN
Cylinder Diameter. 85.0mm
Tool Material: Cast Aluminium and Reinforced Nylon
Cartridge Capacity: 400mL
Cartridge Ratio: 10:1
Air Inlet: 1/4in NPT
Max Operating Pressure: 6.8 Bar/ 100PSI
Warranty: 1 Year
Commodity Code: 90289090

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £317.12 Exc VAT
