Product Description

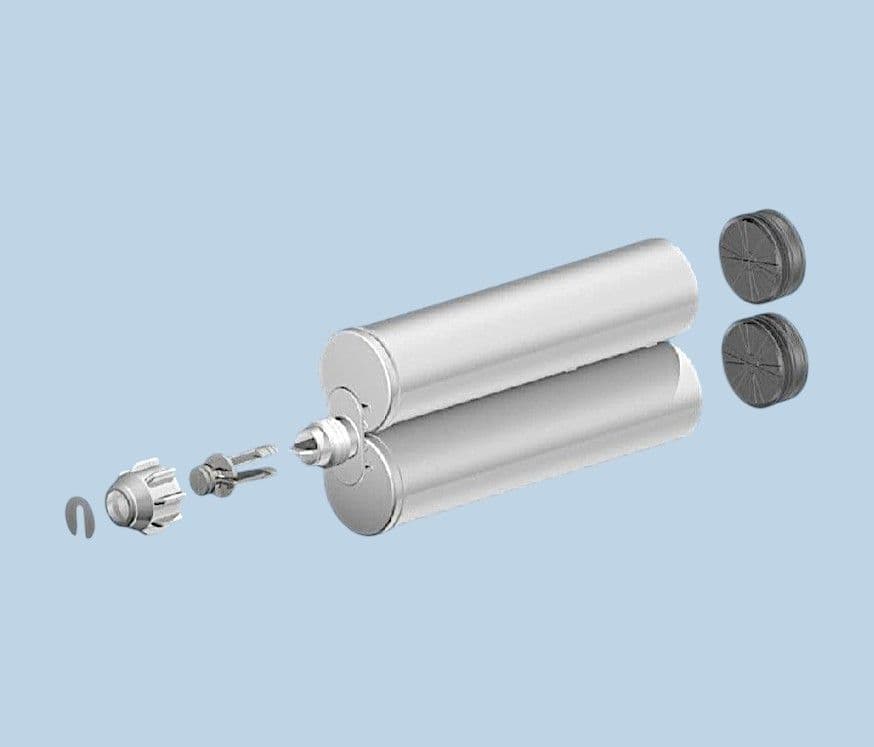

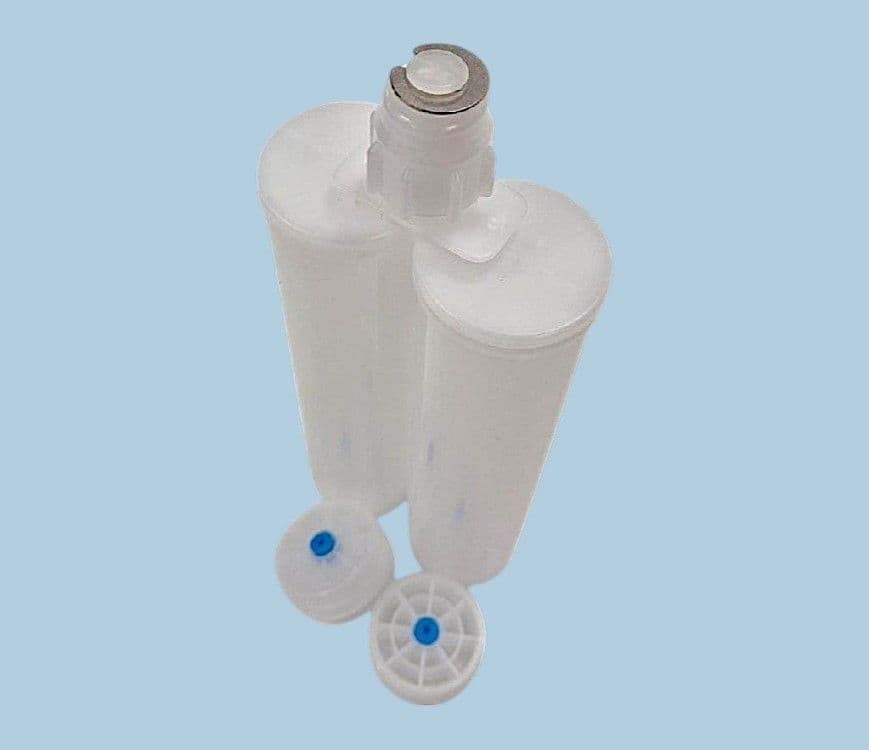

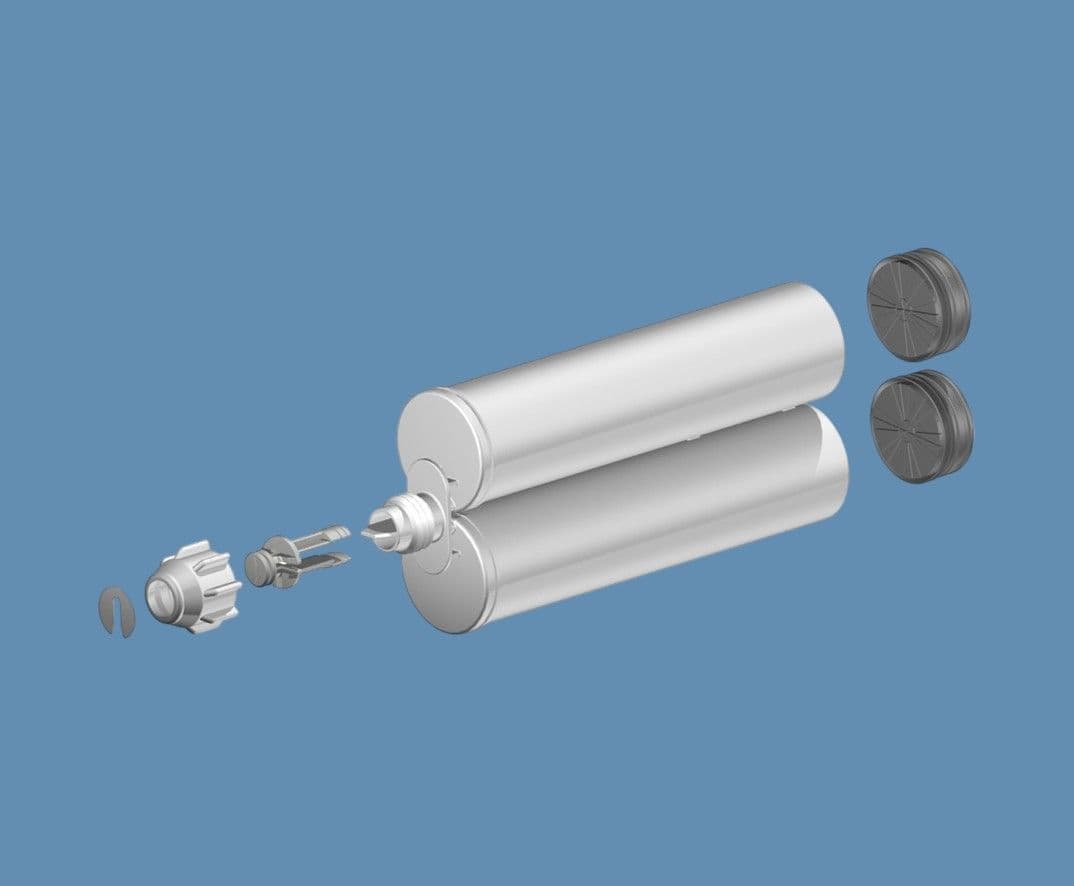

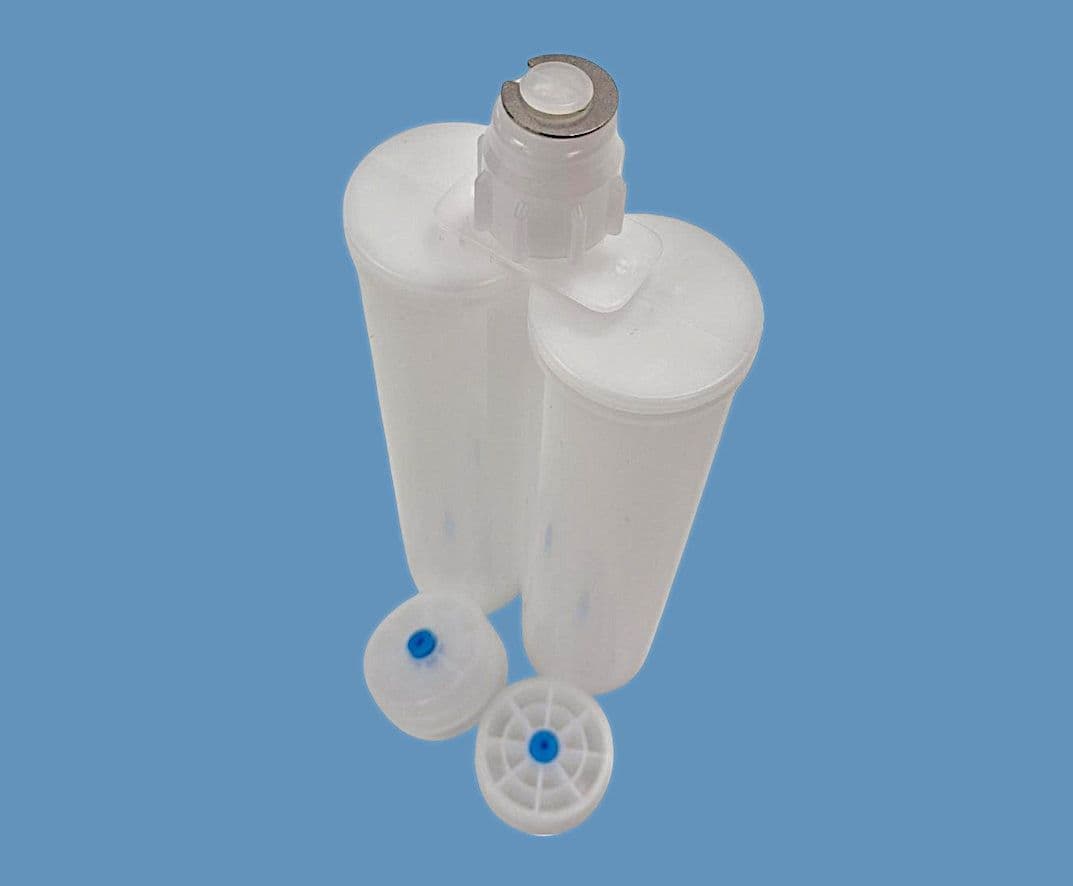

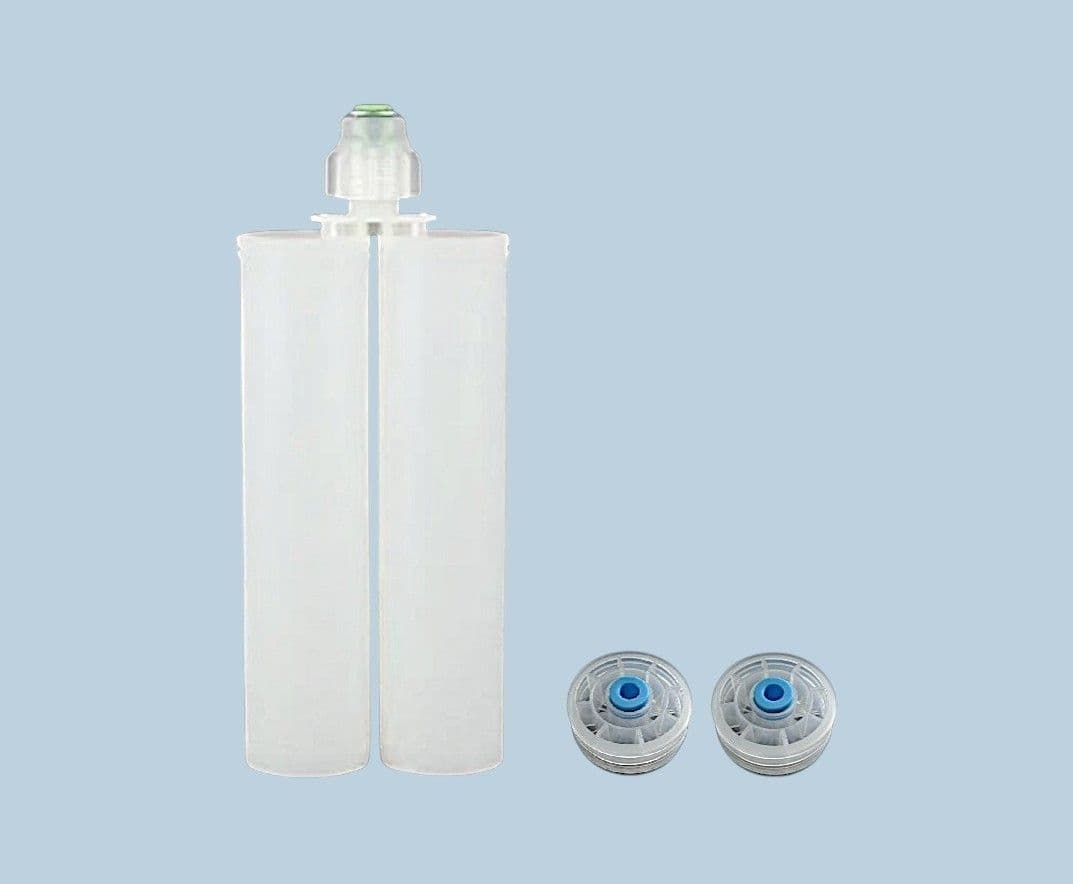

400011 is a dual cartridge dispensing system in a 400ml volume size with a 1:1 mix ratio by volume for 2K materials. The main resin and hardener are stored in the two chambers, they are kept apart and fed into the top of the mixer nozzle. Material is fed simultaneously into the nozzle where dynamic mixing takes place. Polypropylene self-venting wiper pistons are included in the kit. Used with bell mouth static mixer nozzles or screw type threaded mixer nozzles.
Benefits of the system is guaranteed mixing at the correct ratio every time. Controlled mixing and dispensing without added air entrapment. Cleaner than manual mixing and higher levels of dispensing control. And less waste as the cartridge contents do not need to be used in one go and material left inside can be used at a later date with a new mixer nozzle. This cartridge is known as the C-System.
Packaging

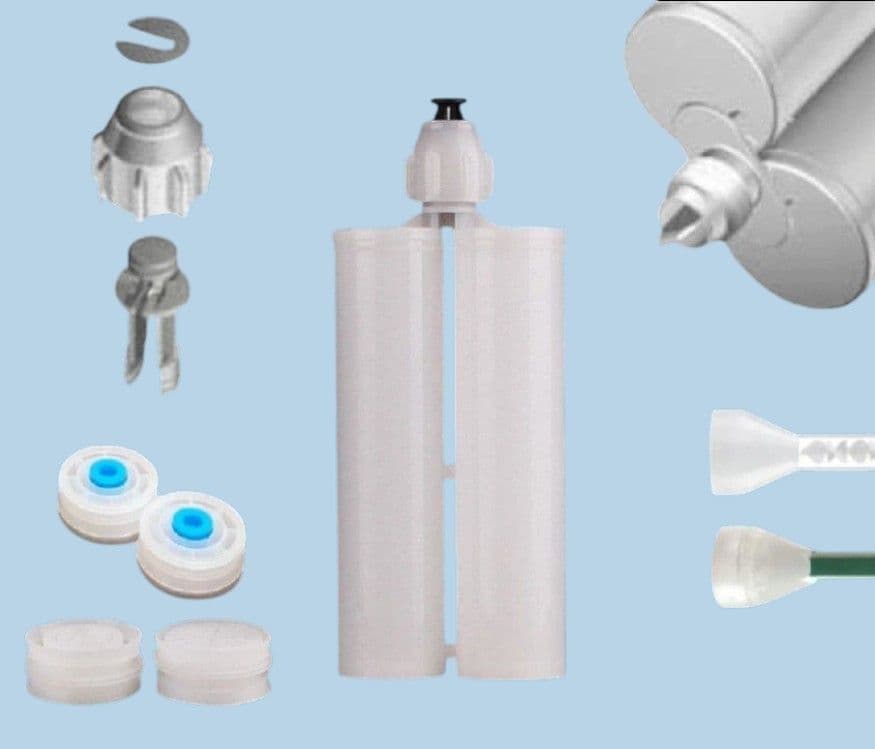

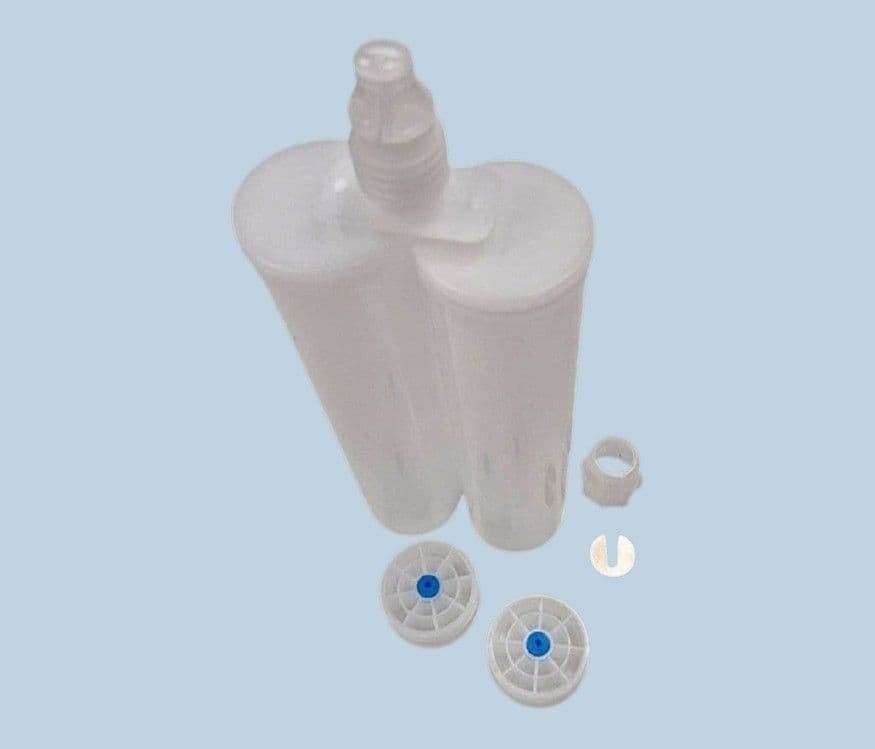

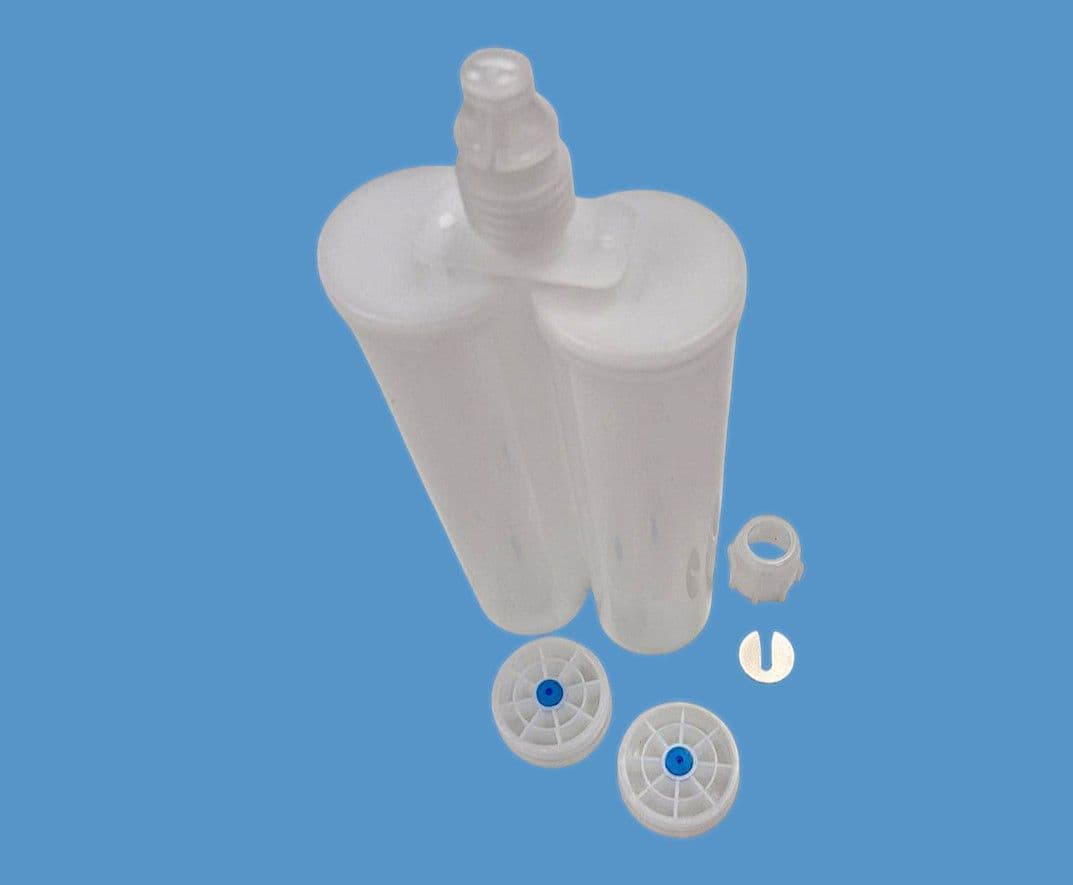

Dual cartridges are priced and supplied in packs of 50 and include a nozzle seal, threaded collar as well as 100 of the pistons.

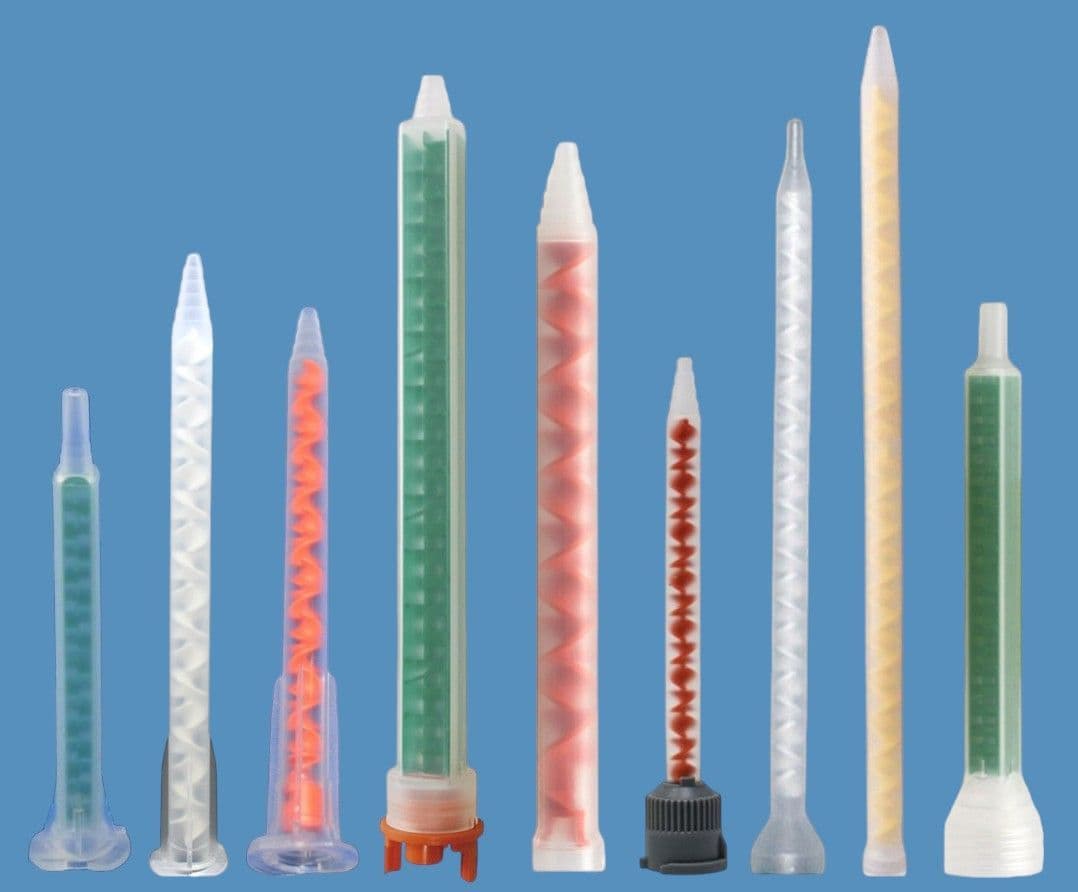

Static Mixer Nozzles
Nozzles are available in a wide range of different lengths and mix elements. 400011 dual cartridges can be used with all mixer nozzles designed for 1:1 ratio. This includes the MCH, MCQ, MGH and MGQ Series. Bell mouth mixers push on and the threaded cartridge nut secures. MG series mixer nozzles screw-onto the cartridge housing without requiring the nut.
Dispenser Guns
Cartridges are compatible with 1:1 ratio manual, pneumatic and battery rechargeable dual dispenser guns.
Key Features:
• Silicone-Free Materials
• Industrial Grade Safe to 100 PSI
• Dynamic Mixing of 2-Part Materials
• Supplied in sealed packs with labels and batch codes
• Self-venting wiper pistons
• High-density natural polypropylene body
• Compatible with industry mixers and dispensers
Specification
Part ID: 400011
Material: High Density Polypropylene (HDPP)
Piston Material: Polypropylene
Piston Type: Self-Venting Wiper Pistons
Colour: White Natural
Size: 400ml (200ml + 200ml) (Total Actual Filled Volume 395ml)
Mix Ratio: 1:1 by Volume
Outlet: Bell Mouth 16.7mm Push-On Housing
Nozzle Attachment: 13mm Retaining Nut Supplied
Nozzle Type: Use with MCH, MCQ, MGH and MGQ Series
Details: Silicone Free Materials, Industrial Grade Safe
Maximum Pressure: 100 PSI
Commodity Code: 39269097
Origin: Asia
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
