2-Part Dual-Component 1:1 Ratio 400ml Cartridge, Static Mixers, Accessories and Dispenser Gun Starter Kit
The kit includes cartridges with air-vented pistons, nozzle nut and re-sealable cap. They are ready for filling with material, storing and dispensing. All cartridges and mixers are industrial grade safe and certified silicone free. The cartridge design fit using the C-System which is push on and secure with nut or threaded using MG series mixers. All parts are manufactured by Medmix Sulzer Micpac in the UK, the industry leader in 2-part fluid packaging and dispensing.
Cartridges and mixers are rated up to 100 PSI maximum pressure should pneumatic equipment be used. The 2-part design keeps the two adhesive parts separate (resin & catalyst), which only meet as they enter the mixing nozzle. The two parts then dynamically mix to produce a blended material. These cartridges are ideal for storing and applying 2-part adhesives that use a 1:1 mix ratio by volume, where precise metering and mixing is needed.
Mixer nozzles offer a variety of diameters and elements. Suitable for low to medium viscosity materials, fast and slow curing.
The dispenser gun in this kit is the Cox VBM400MR. This is a metal frame and trigger providing an 18:1 mechanical force ratio which is ideal for low to medium viscosity materials.

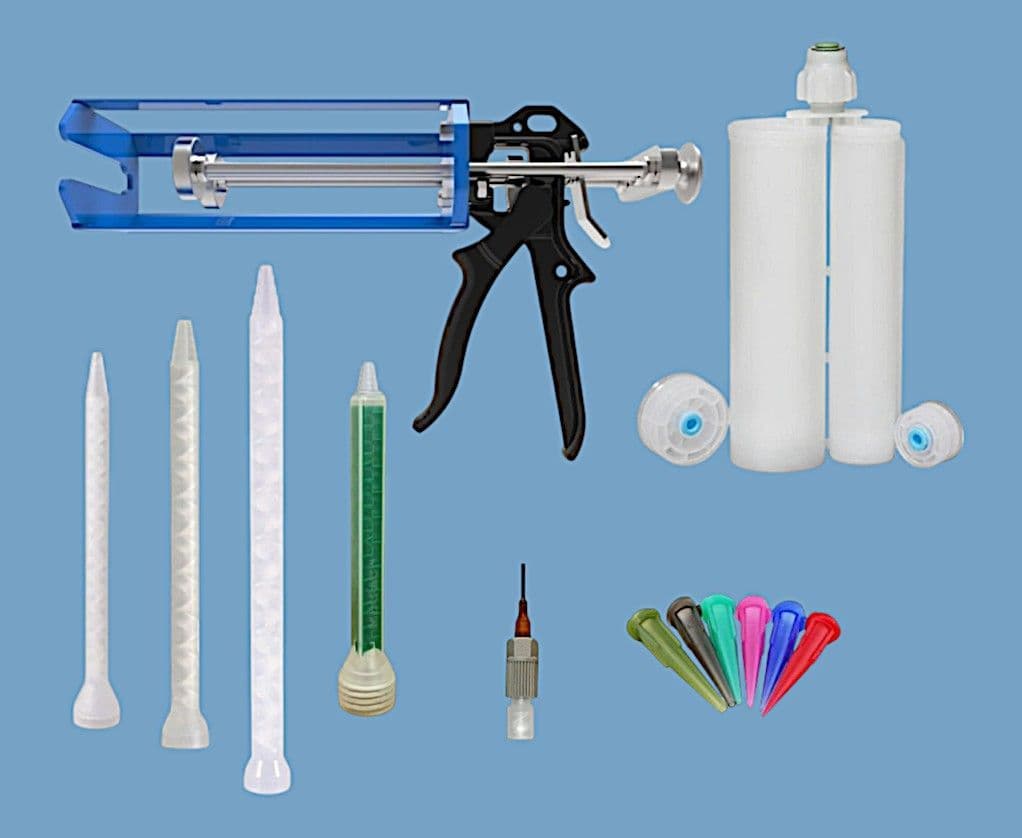

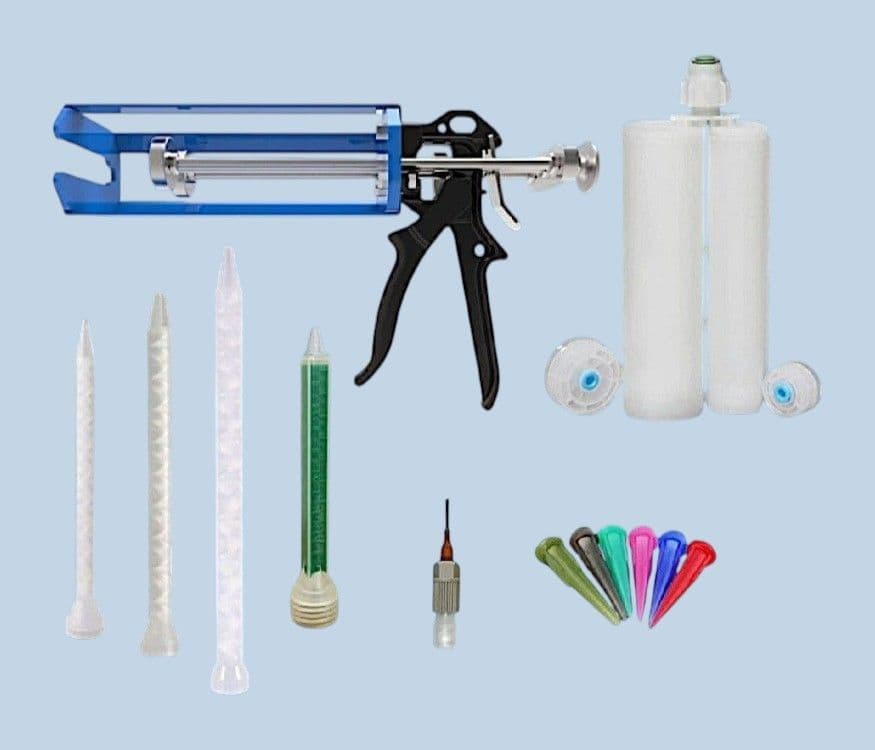

The kit includes:
Manual 400ml 1:1 Ratio Manual Dual Dispensing Gun - Model VBM400MR (Quantity 1)
Empty 400ml 1:1 Ratio Dual Cartridges and Air Vented Pistons - Part AD400011 (Quantity 5 Sets)
Static Mixer Nozzles - Part MC05-24, MC06-18, MC06-24, MC08-18, MGQ08-18 (Quantity 1 of each)
Mix Nozzle Luer Tip Adapter Fitting - Part LA06-08 (Quantity 1)
Assortment of Tapered Tips - Part AD13TT, AD14TT, AD15TT, AD16TT, AD18TT (Quantity 1 of each)
Part ID: VBM400-1K
Wetted Materials: Polypropylene/ Polyethylene
Dispenser Gun Weight: 1.7kg
Gun Maximum Thrust: 3.5kN (350kg), 2.1mm stroke
Gun Force Ratio: 18:1
Commodity Code: 90289090
Origin: UK
Brand: Medmix
