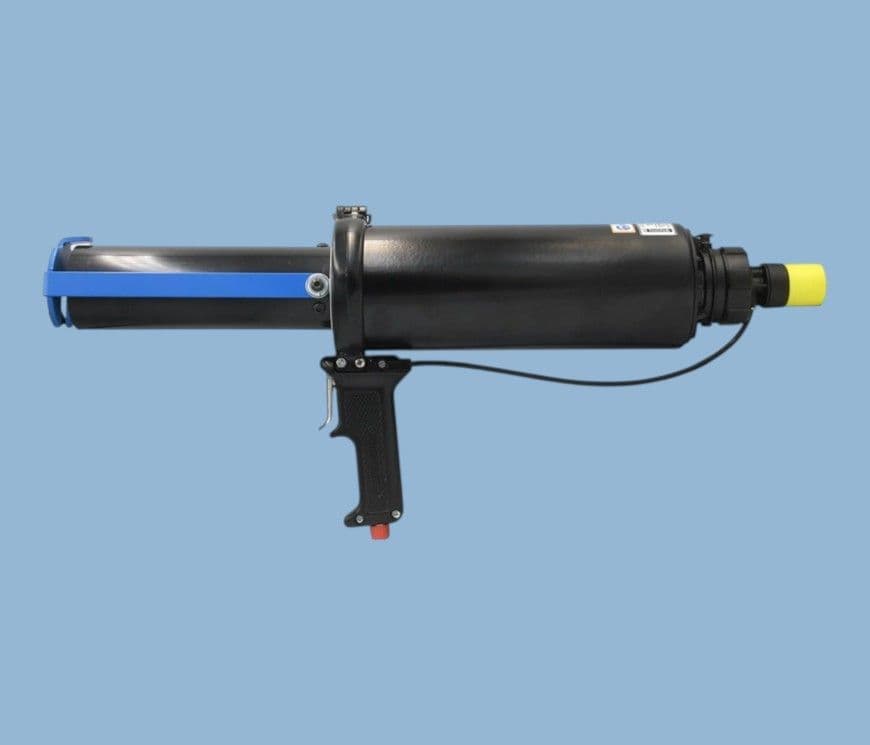

380ml Pneumatic Coaxial Gun 10:1 Ratio CCA-380A

380ml Pneumatic Coaxial Dispenser Gun 10:1 Ratio CCA-380A Sulzer Mixpac Adhesive Dispensing

Product Code: CCA-380A

Air powered co-axial 2K cartridge gun 380ml. 10:1 ratio cartridges. 5kN Max. Thrust

For epoxies, adhesives and other materials that are supplied in 380ml two part, coaxial 10:1 ratio cartridges with the use of a static mixing nozzle. The lightweight and durable construction of our dual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive.

Specifications
Part ID: CCA-380A
Weight 2,50kg / 5.5lbs
Frame Length: 178mm / 7in
Maximum Thrust: 5kN
Air Consumption: 40 Litres/min
Tool Material: Steel Frame/ Glass Filled Nylon Handle
Cartridge Capacity: 380mL
Cartridge Ratio: 10:1
Air Inlet: 1/4in NPT
Max Operating Pressure: 6.8 Bar/ 100PSI
Warranty: 1 Year
Commodity Code: 90289090
Approvals: CE/ REACH

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £320.00 Exc VAT
