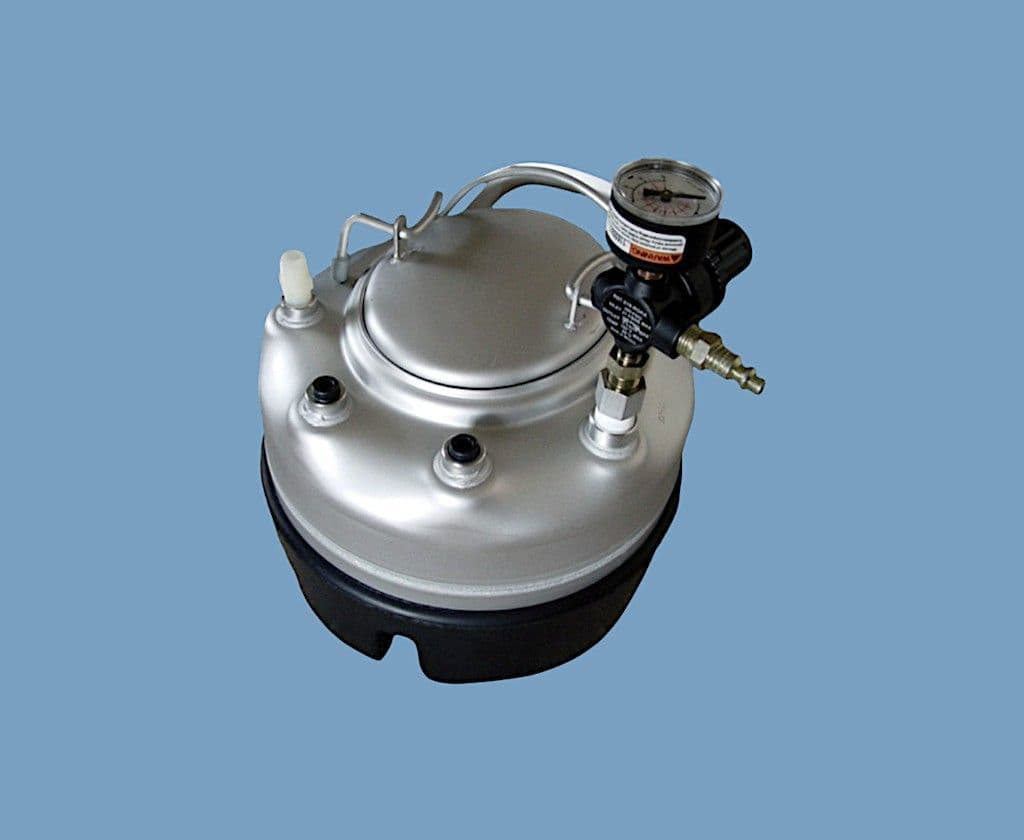

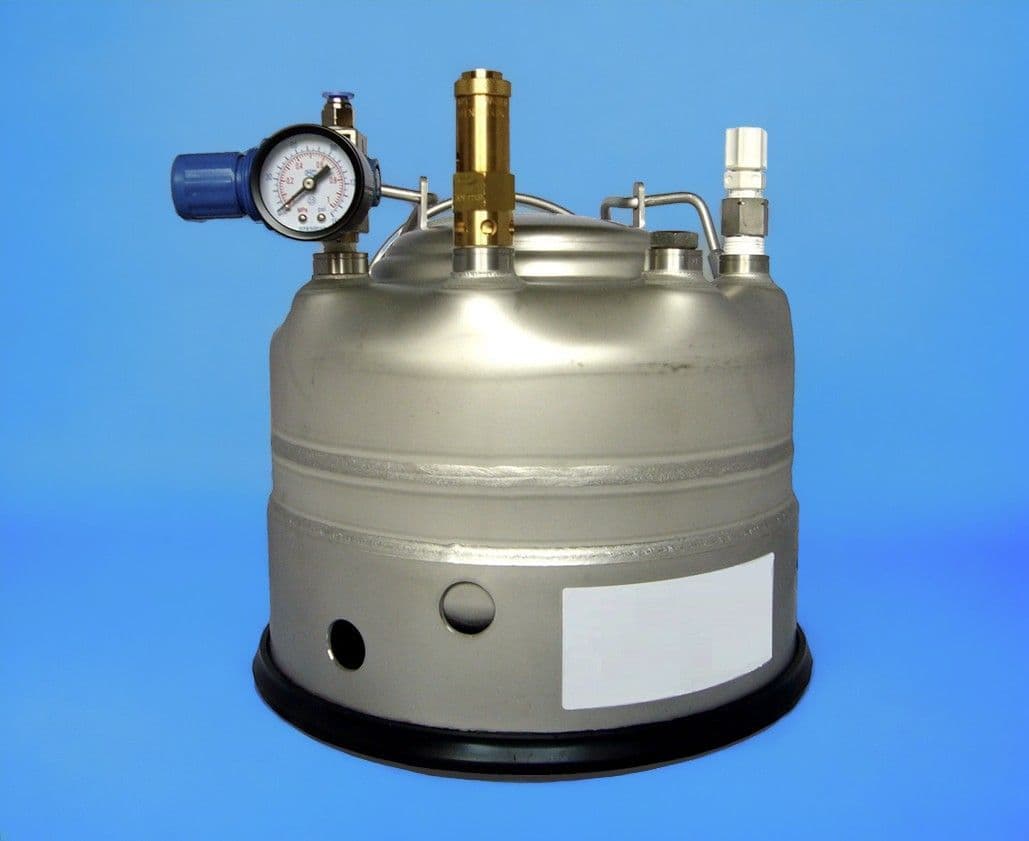

The AD-LT pressure pot 3.8 litre size is designed to accommodate most low to medium fluids, adhesives, solvents and UV's. Pot accommodates 1/4" OD feed tubing with stainless steel compression fittings for a continuous fluid path from the reservoir inside the pot to the metering valve. Airtight seals ensure no leakage problems. Built in adjustable 100 psi air regulator and gauge. Wide open mouth for easy access. Handles fluid viscosity up to 35,000 cps. Air port quick connect fitting and top ported outlet. Type 304 stainless steel. Capacity - 5 US gallons. With adjustable air regulator and gauge.
Part ID: AD3800CL-LT
Weight: 4.5 kg
Dimensions: 233mm Inside Diameter. 257mm Height.
Chamber: 229mm Inside Diameter. 216mm Height
Lid Opening Size: 149.4mm x 127.4mm
Viscosity Range: Liquids up to 35,000 CPS
Max Fluid Pressure: 100 psi ( 6.9 Bar)
Air Inlet: 1/4" Thread Inlet
Material Outlet: 1/4" OD or 3/8" OD Tube Connection
Materials: Type 304 Stainless Steel/ Rubber Skit to Boot
Closure Oval: Pressure Closure
Closure Seal: EPDM Rubber O-ring
Certification: ASME Section VIII-01, Div. 1. PED - Module A - Category I - CE marked For group 1 and 2 liquids and group 2 gases
Commodity Code: 90289090
Origin: United States
