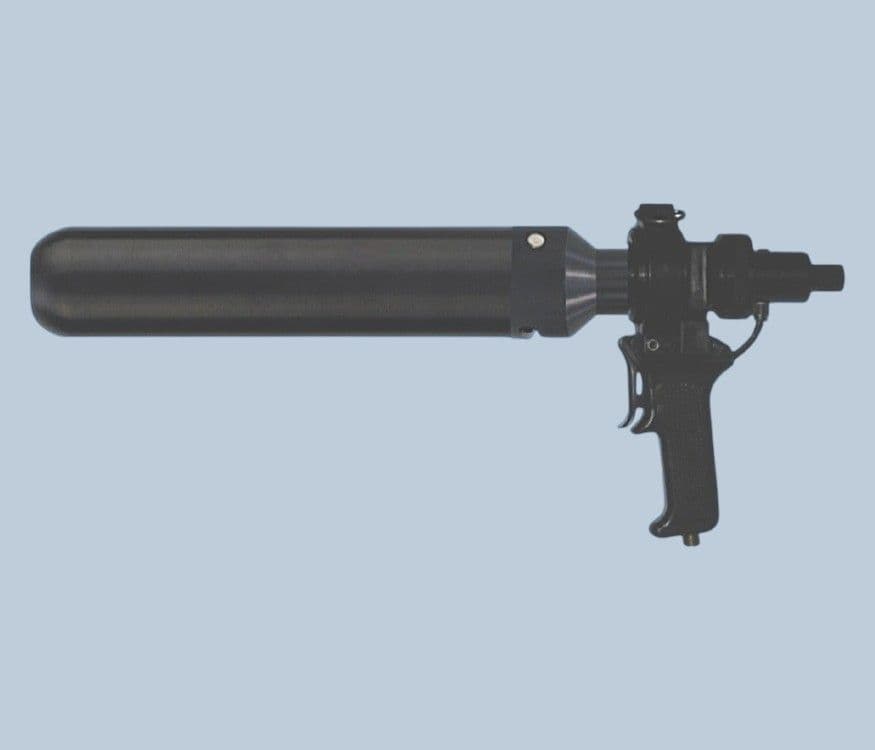

Pneumatic 32oz Cartridge Dispenser Gun - Industrial Adhesive & Sealant Applicator

This professional‑grade pneumatic 32oz (960cc) cartridge dispenser gun is engineered for precise, repeatable application of high‑viscosity adhesives, sealants, gels and potting materials. Built for demanding production environments, it features a quick‑attach bayonet retainer, threaded adapter, and adjustable air regulator, delivering smooth, controlled flow with reduced operator fatigue.

Compatible with 32oz Techcon, Nordson EFD, Semco PPG cartridges, Semkits and Techkits, this applicator is ideal for manufacturers requiring accuracy, reliability and long‑term durability.

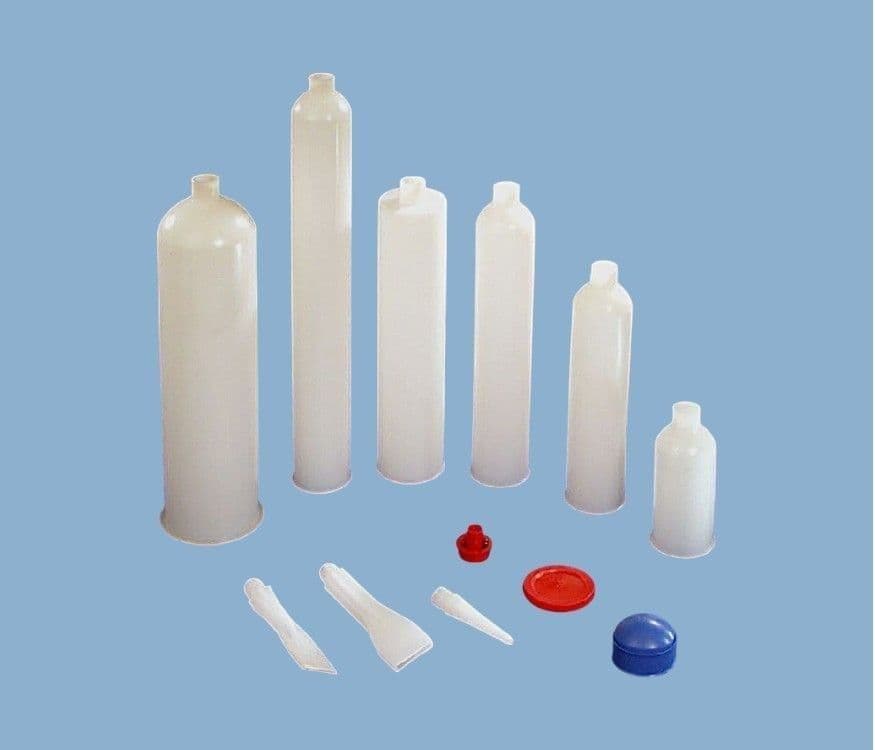

The kit version includes the dispenser gun supplied with the following: (10) 32oz natural cartridges, (10) white wiper plungers, (10) red tip cap seals, (10) red flange cap seals, (10) 4" long nozzles.

Key Features

• Quick‑attach bayonet retainer for fast cartridge loading

• Adjustable air regulator knob for precise flow control

• Quick‑exhaust air release to minimise drips, stringing and oozing

• Ergonomic trigger‑handle design for comfortable operation

• Top hook ring for counter‑balance systems and hands‑free support

• Compatible with all major 32oz cartridge brands

• Suitable for epoxies, RTV silicones, gels, mastics, pastes and potting compounds

Suitable for Dispensing

Provides consistent beads, shots, fills and potting of:

• Adhesives & sealants

• RTV silicones

• Greases & gels

• Long‑cure epoxies

• Mastics & potting compounds

• Thick pastes and pre‑mixed materials

Ideal for aerospace, electronics, automotive, general manufacturing, maintenance, and assembly applications.

How It Works

1. Insert a filled 32oz cartridge into the anodised aluminium retainer.

2. Twist the bayonet retainer to lock securely.

3. Attach a threaded nozzle or male luer‑lock adapter with tip.

4. Set the required pressure (up to 100 psi) using the adjustable regulator.

5. Press the trigger to dispense with smooth, controlled pneumatic power.

Cartridges, plungers, nozzles, caps and accessories are available separately.

Technical Specifications

• Maximum Thrust: 2.5 kN

• Barrel Length: 349.25 mm

• Operating Pressure: Up to 100 psi

• Air Inlet: ¼" BSP male thread

• Colour: Black

• Tool Weight: 2.25 kg

• Barrel Material: Anodised aluminium

• Handle Material: PC / ABS moulded base

• Approvals: CE, REACH, RoHS

• Commodity Code: 90289090

• Origin: GB

• Brand: Adhesive Dispensing Ltd

• Warranty: 1 year

Why Choose Adhesive Dispensing Ltd

Adhesive Dispensing Ltd supplies a complete range of precision dispensing equipment for almost all assembly fluids - from thin solvents and primers to thick pastes, silicones, gels and epoxies. Our products are engineered for accuracy, repeatability and long‑term reliability, supporting production lines worldwide.
