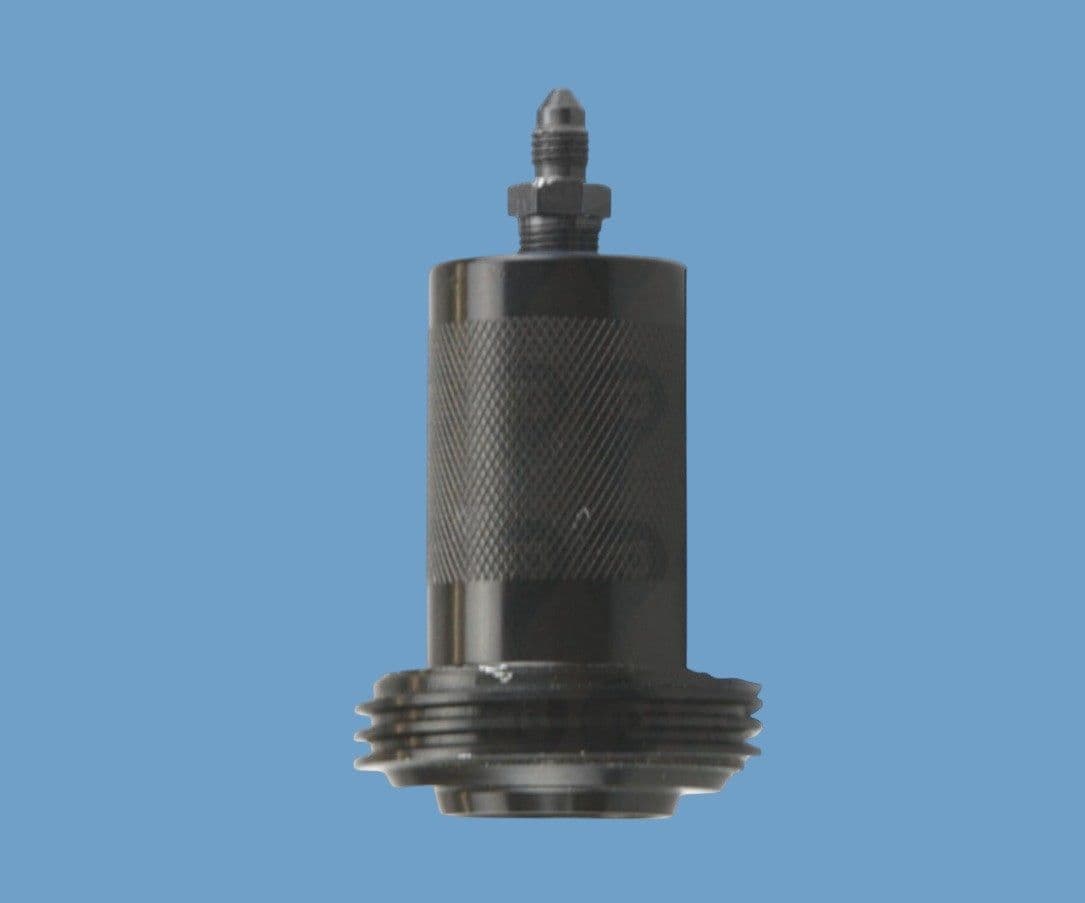

32oz Metal Cartridge Body Adapter Assembly 231361

Name: 32oz Metal Cartridge Body Adapter Assembly 231361
Brand: ASC
SKU: 231361
Price: 390.00 GBP
Availability: InStock

32oz Cartridge Retainer System TS918-32CS Adhesive Dispensing Ltd

Product Code: 231361

32oz (591ml). 11.75" (349.2mm) Long. OD: 2.67" (67.82mm). Max. Pressure 100 PSI.

960cc size metal cartridge body adapter. Fits with Part # 233873 32oz retainer assembly to make a full feed system. Includes air hose (not shown) for connection to mains supply or a pneumatic dispenser. So used with the 233873, this part makes up a reservoir for 32 ounce size cartridges.

Can withstand pressures up to 100psi (6.9bar) for the metal retainer. ** Please note these specialist items are custom made.

Part ID: 231361

For: 20oz/ 32oz Metal Retainers
Materials: Aluminium/ Steel
Colour: Black
Max Pressure: 100 PSI
Warranty: 1 Year
Commodity Code: 84679200

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £325.00 Exc VAT
