32oz Digital Timed Syringe Filling Station 1000-32D

32oz Digital Timed Syringe Filling Station 1000-32D
Product Code: 1000-32D

Size: 32oz/ 960ml. Max Pressure: 100 PSI. Retainer: Metal. Type: Dispenser Activation.

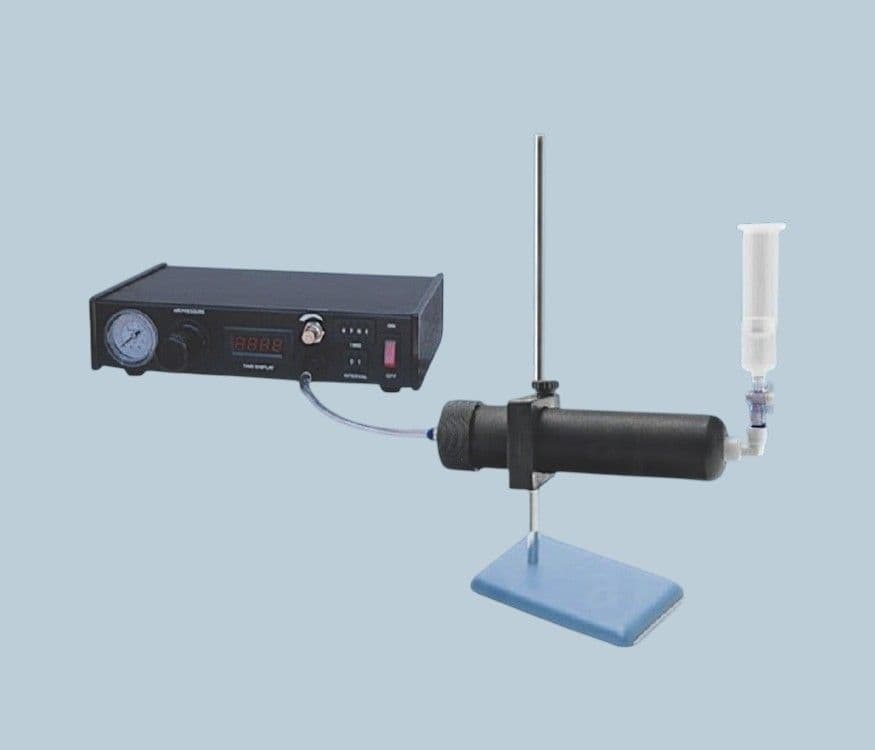

An efficient method of transferring greases, epoxies, silicones, solder pastes and other thixotropic materials into a disposable syringe barrel. This barrel loader is supplied with a pneumatic adjustable timed bench top dispenser to control the operation.

The model 1000-32D barrel loader is for pre-filled 32oz cartridges, which are placed inside a vertical container mounted on the stand. The barrel attachment assembly is threaded to accept luer lock barrels. Activating the pneumatic dispenser once connected to the air line causes the material to rise inside the barrel. This method simplifies loading and reduces the possibility of entrapped air in the fluid.

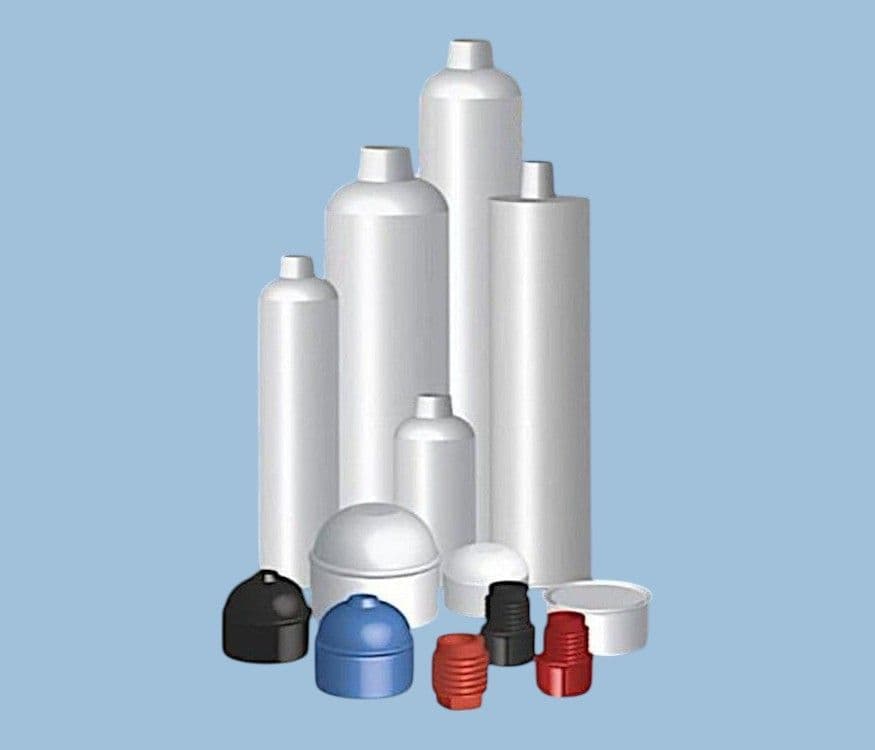

The 1000-32D includes pneumatic bench mounted digital timed dispenser with 0-100 psi adjustable regulator/ gauge, bench top cartridge base stand, retainer bracket support, 32oz retainer and air cap, five (5) empty 32oz cartridge and plungers, an outlet cap and special barrel attachment assembly. The 32oz (960cc/ml) cartridges are filled with material of choice.

The digital dispenser controlling this system allows timed filling to each syringe barrel to eliminate guesswork and improve repeatibility. A teach function allows the amount to be filled to each syringe to be setup rapidly.


Part ID: 1000-32D
Materials: Polyethylene/ Steel/ Nylon
Capacity: 32oz/ 960cc or 960ml
Weight: 4kg
Max Pressure: 100 PSI
Warranty: 12 Months


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies
Price: £888.59   Exc VAT
  • Product Brand:ADL
  • MPN: 1000-32DMax Pressure: 100 PSILead Time: 5-7 Days
