310ml Cartridge Retainer Cap & Hose ADL-1211M

Name: 310ml Cartridge Retainer Cap & Hose ADL-1211M
Brand: Adhesive Dispensing Ltd
Price: 222.00 GBP
Availability: InStock

10oz Cartridge Retainer Cap & Hose ADL-1211M Adhesive Dispensing Ltd

310ml Cartridge Retainer Cap & Hose ADL-1211M

Product Code: ADL-1211M

10oz (310ml). 9.33" (237.10mm) Long. OD: 2.18" (55.49mm). Threaded Attachment.

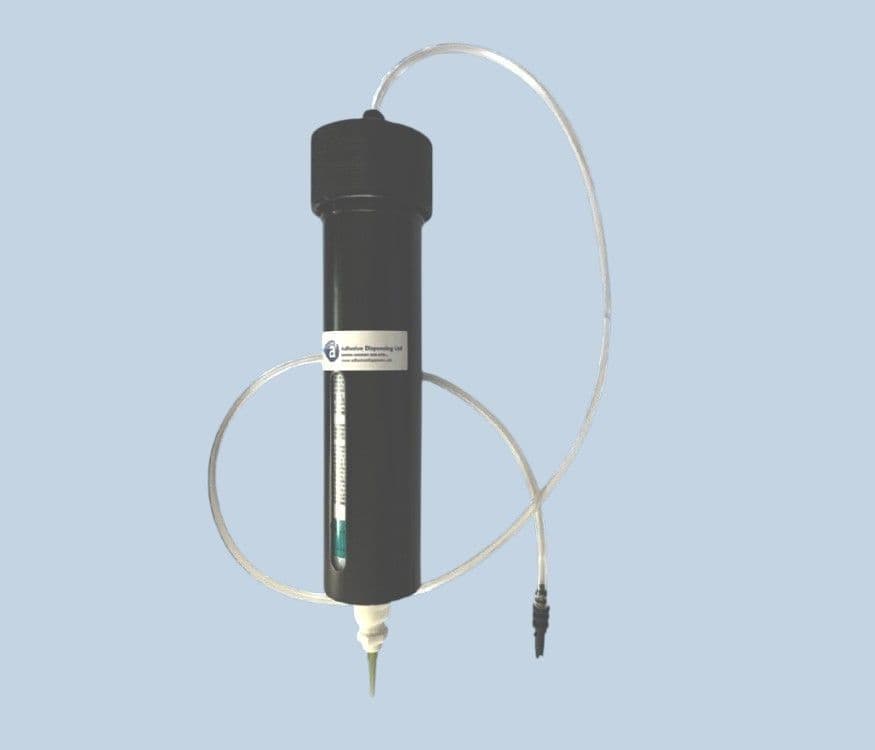

10oz cartridge retainer and cap for use with our 310ml cartridges. Supplied with threaded air cap and 6ft long airline hose with quick connect fitting. Safe for use to 100 psi air pressure.

Accepts our 310ml cartridges - part TS110CKIT. The cap is unscrewed and the cartridge placed inside the metal retainer body. Allows materials to be fed under pressure up to 100 psi. Can be used as a pneumatic cartridge feed reservoir to our Spool Valves or other dispensing devices.

Materials: Aluminium/ Steel/ Nylon
Colour: Black
Max Pressure: 100 PSI
Air Inlet: 6mm OD Quick Connect
Inner Diameter: 50.85mm
Outer Diameter: 55.49mm
Length: 237.10mm
Accepts Silicone Cartridges of 205mm to 215mm
Warranty: 1 Year
Commodity Code: 84679200
Origin: GB
Brand: Adhesive Dispensing Ltd

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £185.00 Exc VAT
