30cc Manual Syringe Gun with Full Kit TS730SG-KIT

30cc Manual Syringe Gun with Full Barrel Tip Kit TS730SG-KIT Adhesive Dispensing Techcon
30cc Manual Syringe Gun with Full Barrel Tip Kit TS730SG-KIT Adhesive Dispensing Techcon 30cc Manual Syringe Gun with Full Barrel Tip Kit TS730SG-KIT Adhesive Dispensing Techcon 30cc Manual Syringe Gun with Full Barrel Tip Kit TS730SG-KIT Adhesive Dispensing Techcon 30cc Manual Syringe Gun with Full Barrel Tip Kit TS730SG-KIT Adhesive Dispensing Techcon
Dispensing tips adhesive catalog luer lok
30cc Manual Syringe Gun with Full Kit TS730SG-KIT
Product Code: TS730SG-AD-KIT

Manual 30cc syringe gun full kit for hand application of pastes, gels and adhesives. Red Colour.

Our Syringe Gun dispensers are designed for the controlled application of pastes, gels, adhesives and fluids. A cost effective quality made syringe dispensing gun for use with standard 30cc/ 30ml size syringe barrels. Ideal for low volume production, re-work or repair work.

Syringeguns offer a low cost dispensing solution for most medium to high viscosity pastes, gels, silicones, greases and other liquids. A portable and lightweight manual dispenser for applying most fluids. A 7:1 ratio leverage for effortless trigger movement. The rod moves 3mm (1/8") once pressed to provide repeat deposits without drips or ooze.

Push the button to release plunger rod. Simple bayonet twist on/ twist off barrel attachment. Ideal for dots or beads of solder paste, solder flux, RTV, silicones, sealants, gels, grease, PVA glue and compounds. Each Syringe Gun kit includes the 30ml manual hand gun, (20) 30ml dispensing reservoir with 30ml pistons, (20) storage end caps, (20) tip caps, (50) assorted dispensing tips.

Barrels are attached to the syringe gun using wide flanges. This ensures the barrel does not break under constant use or hand pressure.

  • Includes full component kit
  • Easy hand lever leverage
  • Controlled deposit or bead
  • Lightweight robust construction
  • Quick syringe attachment
  • Low cost dispensing solution
The guns are robust and handle most liquids and pastes dispensed from them. However, it is important to press the small release button at the top of the gun before pulling the rod back when changing syringe barrels. O-rings can become worn or covered in glue so they are available to order from stock.
The gun is supplied with 1 spare o-ring in the pack. For future replacement, select the 30cc size in EPR or Viton. Please contact us if replacement rods are required. Data sheet here

Guns with kits come with the following: -

20 x 30cc luer lock syringe barrels (choice of clear, black or amber - AD930-N, AD930-B or AD930-D)
20 x 30cc white wiper pistons (Part No. AD930-WW)
20 x 30cc barrel end cap seals (Part No. AD930-ECO)
20 x barrel tip cap seals orange (Part No. AD900-ORTC)

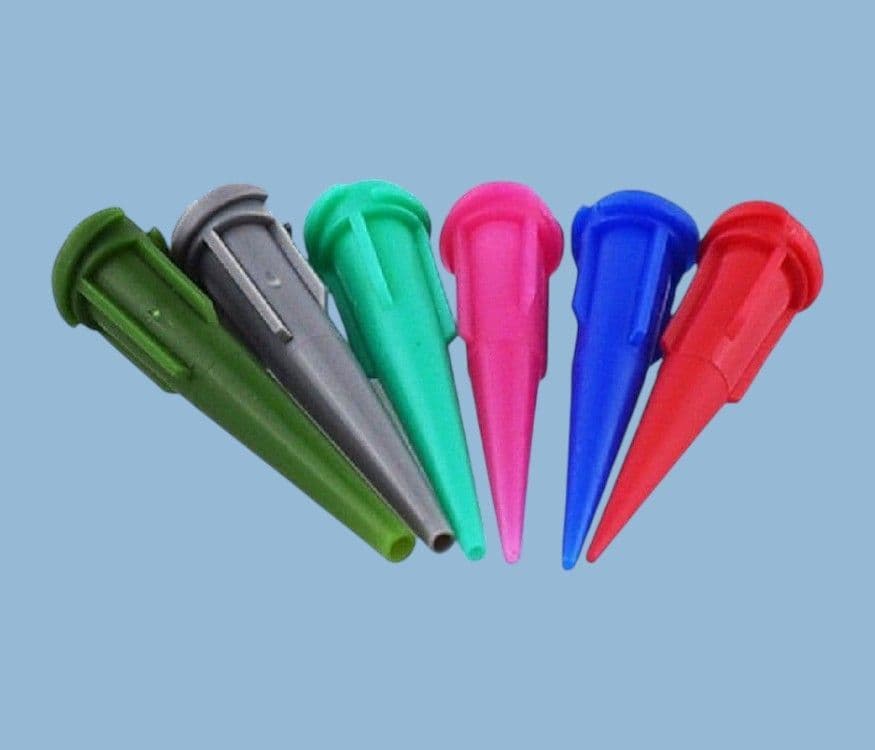

5 x smooth flow tapered tip 13 gauge blue (Part No. AD14TT) - 2.0mm ID
5 x smooth flow tapered tip 14 gauge olive (Part No. AD14TT) - 1.55mm ID
5 x smooth flow tapered tip 15 gauge amber (Part No. AD15TT) - 1.37mm ID
5 x smooth flow tapered tip 16 gauge grey (Part No. AD16TT) - 1.19mm ID
5 x smooth flow tapered tip 18 gauge green (Part No. AD18TT) - 0.84mm ID
5 x smooth flow tapered tip 20 gauge pink (Part No. AD20TT) - 0.58mm ID
5 x smooth flow tapered tip 21 gauge purple (Part No. AD21TT) - 0.51mm ID
5 x smooth flow tapered tip 22 gauge blue (Part No. AD22TT) - 0.41mm ID
5 x smooth flow tapered tip 23 gauge orange (Part No. AD23TT) - 0.33mm ID
5 x smooth flow tapered tip 25 gauge red (Part No. AD25TT) - 0.25mm ID

Air-Powered Dispensers * Industrial Dispensing Components * Precision Dispense Valve Systems * Bench Robots * Adhesives * Packaged Components * Techkits * RatioPacks * Hingepacks * Syringe Barrels * Cartridges * Nozzles

Price: £49.00   Exc VAT
  • Product Brand:Adhesive Dispensing Ltd
  • MPN: TS730SG-AD-KITLead Time: Ships 24 Hours - Stock ItemCapacity: 30cc/30ml
Write a Review

Write an online review and share your thoughts with other shoppers!

Be the first to review this product

Guns are portable and can be used in a factory production or assembly department as well as for repair and re-work. Guns are commonly used in the field for repair or maintenance applications. Common applications include:-

  • Deposits of solder paste
  • Deposits of solder flux
  • Grease to lubricate bearings
  • PVA glue to small furniture joints
  • RTV to seal cases
  • Silicone deposits and beads
  • Gasket sealant and silicone repair
  • Shots of roach insecticides
  • General adhesive applications
