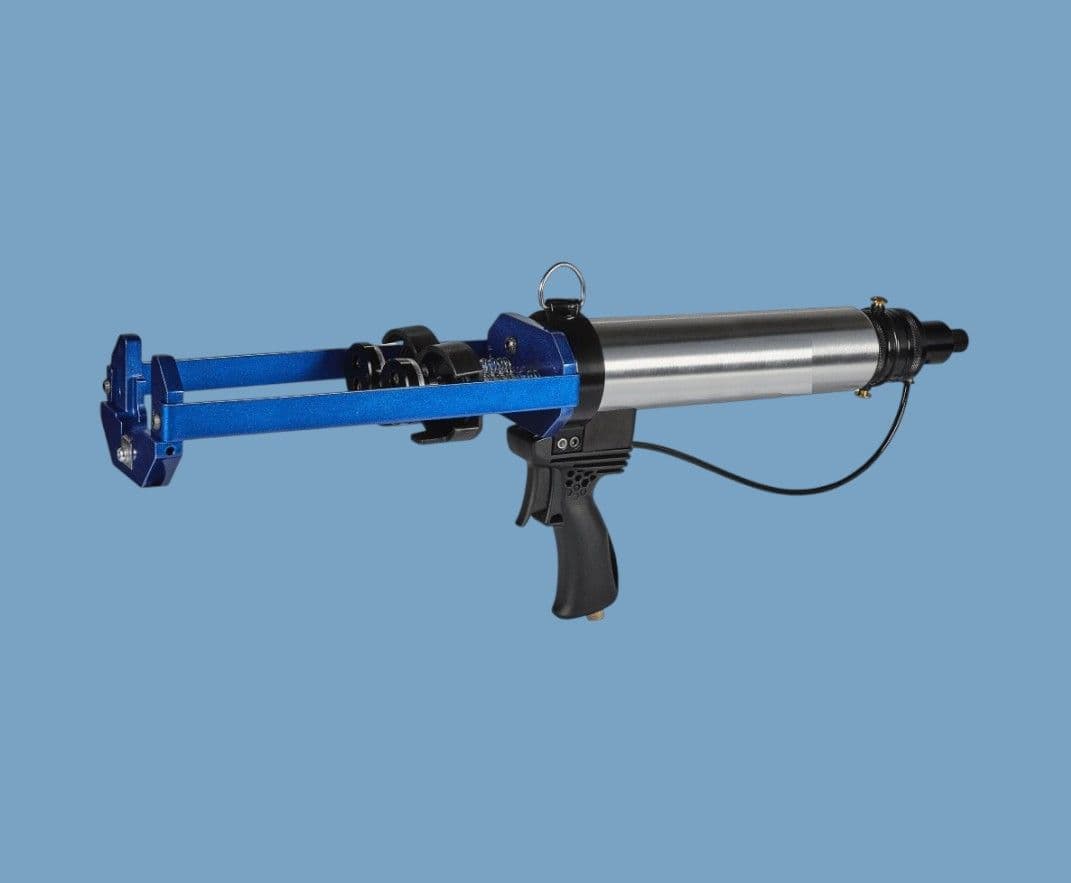

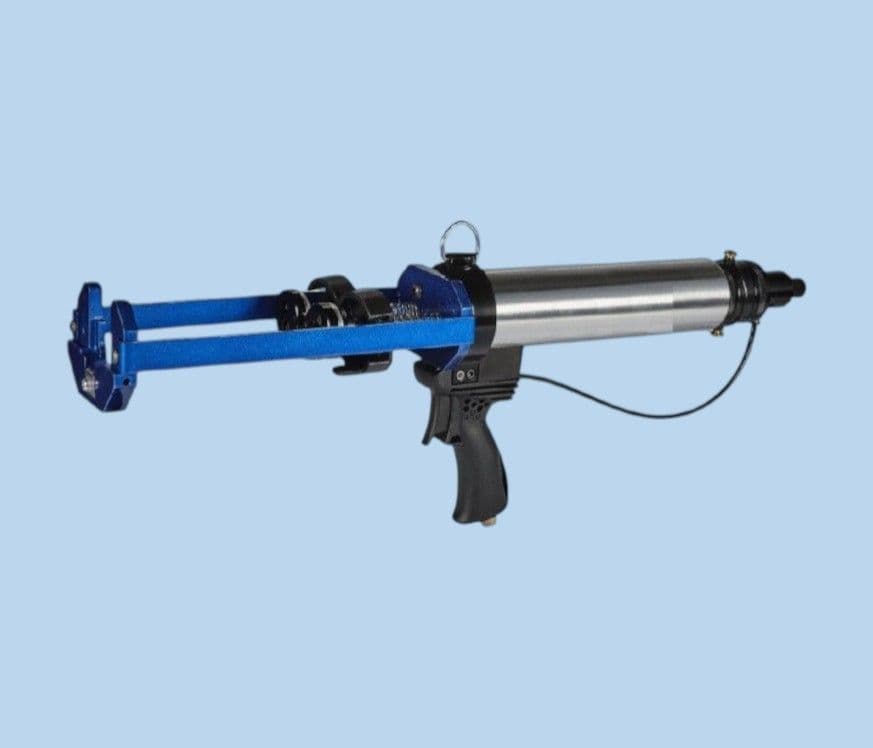

CG300-1 Dual Cartridge Dispensing Gun - Dispensing Applicator for Epoxies & Adhesives
Robust pneumatic dispenser for dual-component materials
Product Overview
The CG300-1 dual cartridge dispensing gun is engineered for precise application of two-part adhesives and epoxies supplied in side-by-side cartridges ranging from 300ml to 600ml total volume. Compatible with multiple mix ratios including 1:1, 2:1 and 4:1, the tool works in conjunction with a static mixing nozzle for consistent and homogeneous output.
Designed for low to medium viscosity materials, this hand-operated applicator is ideal for industrial and commercial use across aerospace, automotive, construction, and electronics sectors.
Key Features and Advantages
- High Thrust Output: 490 lbs. (2.2 kN) at 100 PSI for low to medium viscosity materials
- Multi-Ratio Compatibility: Handles cartridges in 300ml and 600ml combinations
- Lightweight Yet Durable: Constructed with Nylon, Aluminium, Steel, and Zinc for extended use
- Wear Compensation Device: Maintains dispensing accuracy and longevity
- Versatile Cartridge Setups: Supports 1:1, 2:1 and 4:1 dual-ratio formats
- Manual Trigger Operation: Offers operator control in both bench and field environments
- Warranty Protection: Backed by a 1-year manufacturer warranty
Compatible Push Disc Configurations - Select a Version for your cartridge type from below options
- Total Volume - Ratio - Cartridge Sizes
- 600ml - 1:1 - 300ml x 300ml
- 600ml - 2:1 - 300ml x 150ml
- 600ml - 4:1 - 300ml x 75ml
- 300ml - 1:1 - 150ml x 150ml
- 300ml - 2:1 - 150ml x 75ml
Technical Specifications
- Part ID: CG300-1
- Materials: Nylon, Aluminium, Steel, Zinc
- Colour: Black / Blue
- Size: 300ml / 600ml
- Weight: 1.8kg
- Thrust Force: 490 lbs (2.2 kN)
- Max Pressure: 100 PSI
- Warranty: 1 Year
- Commodity Code: 90289090
- Origin: Taiwan
- Approvals: CE Certified
Application Range
Efficient and precise dispensing of:
- Epoxies & Polyurethanes
- Acrylic Adhesives
- Silicones, Sealants, and Gels
- Primers, Activators, and Solvents
