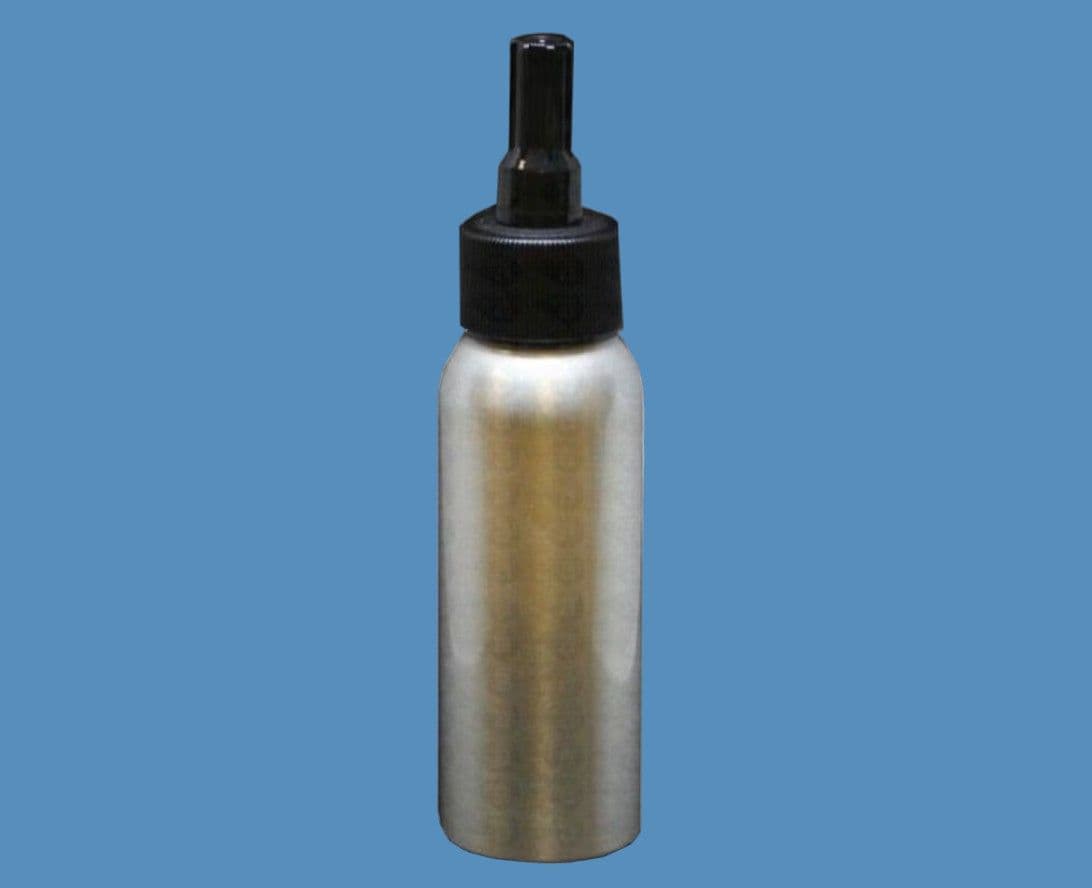

Flow-Seal Pens & Bottles

Flow-seal environmental pens and bottles channel controlled amounts of no-clean flux, rma, solvents, lubricants, masking and water-based liquids. Flow-seal products prevent evaporation of material and conform to current regulations for controlling substances capable of evaporation hazard. A unique dispensing valve prevents flooding and spattering, releasing material in controlled amounts to the nib (tip).

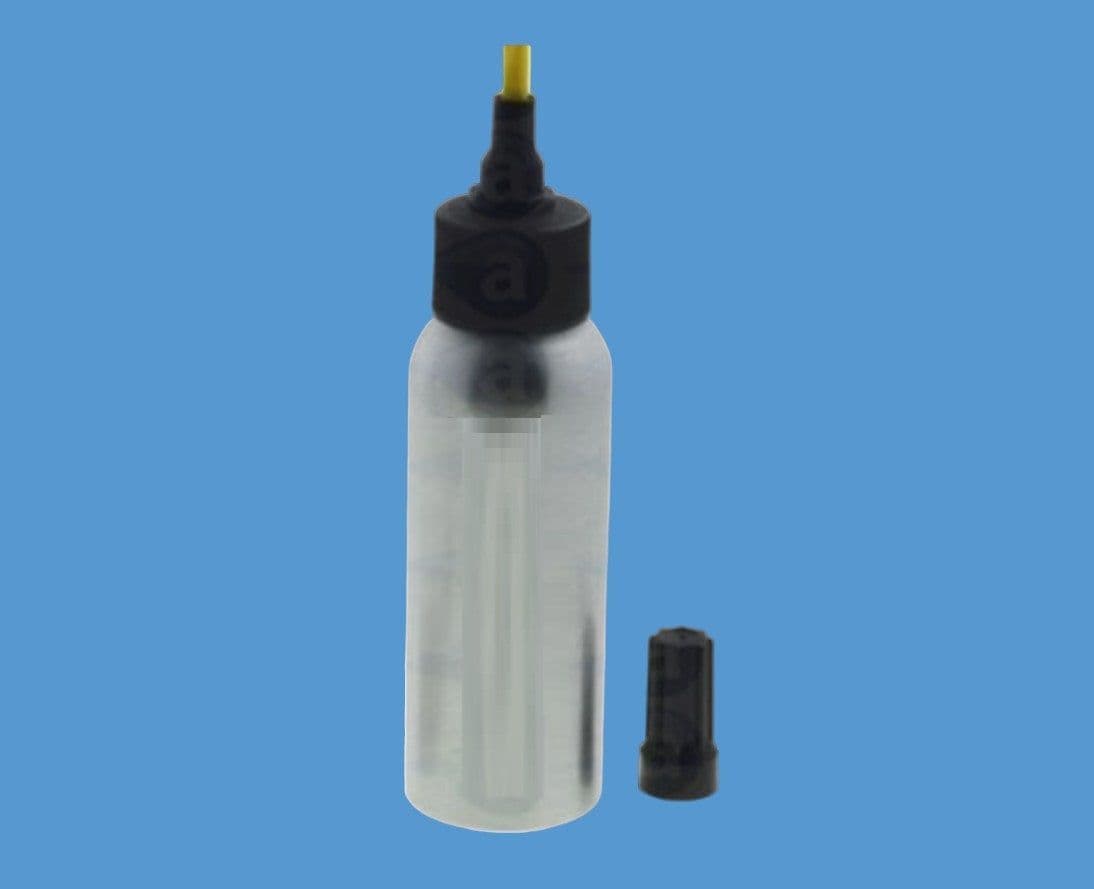

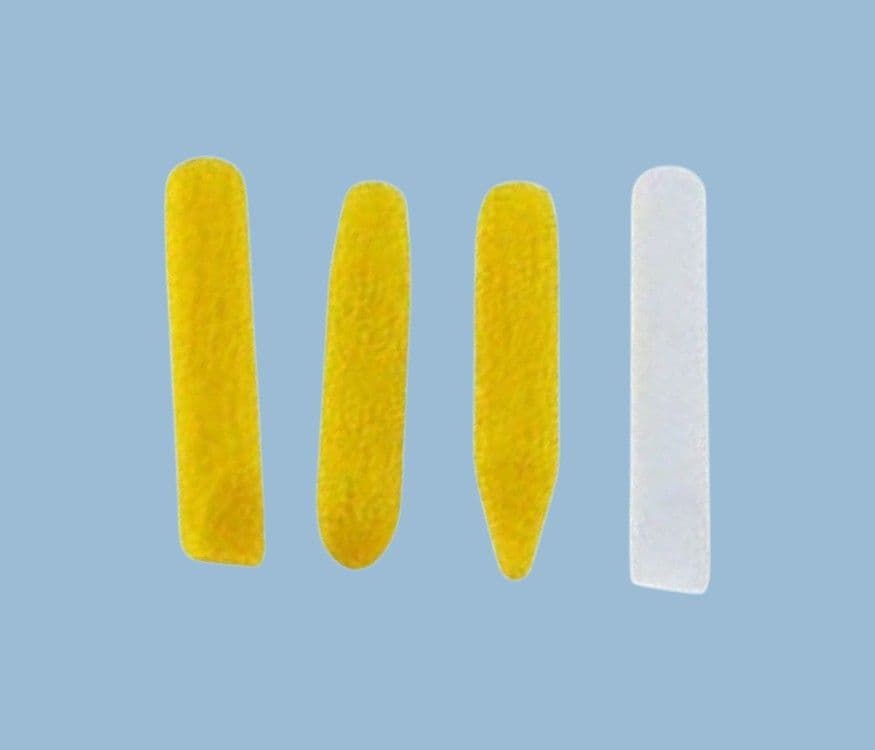

The pen or bottle is in two parts (cap and reservoir) and is easily assembled. The reservoir should be filled with material to within 0.75" (19mm) of the top; this air chamber allows for the valve cap to be pressed securely in position. Priming is achieved by depressing the nib while the pen is vertical. Flow-Seal products are supplied with nib 381-8425-AC. Pricing is for 1.

Part ID: FV-0400
Materials: Aluminium/ nylon/ acrylic
Colour: Silver body/ yellow nib assembly/ white cap
Size: 2oz (59.14 ml)
Length: 130mm (without cap)
Outer Diameter: 35mm

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
