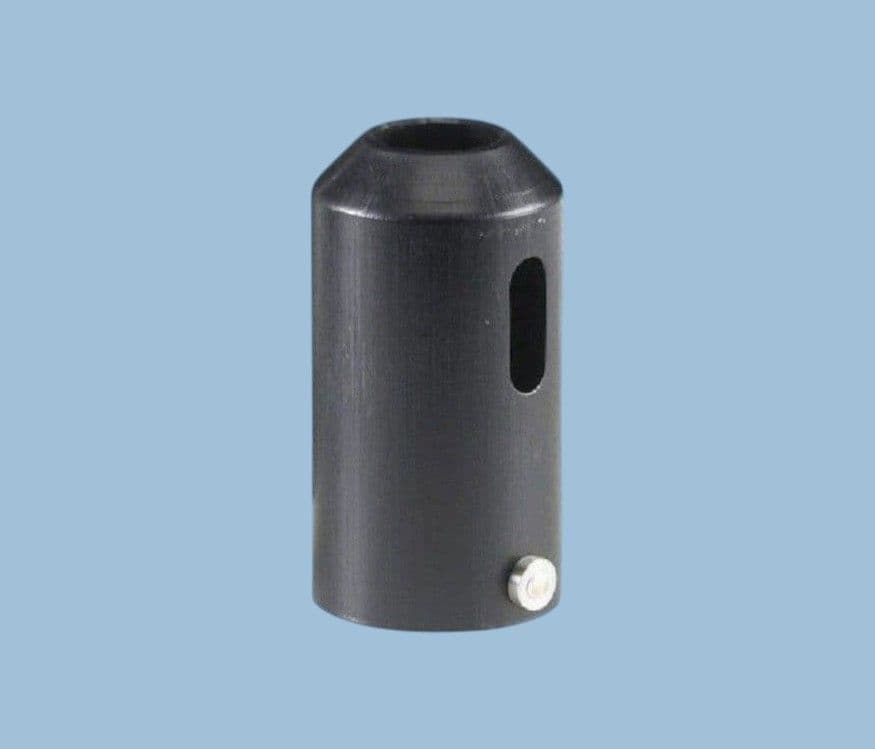

Cartridge Retainer - 918-030-000

Cartridge retainers / cartridge sleeves accept the plastic dispensing cartridge for connection to the retainer cap or dispensing gun. This retainer is made from durable anodised aluminium and with its 2 metal pins, twist-locks onto the retainer cap or dispensing gun.

This item is industrial grade and is rated for use to 100 PSI pressure. Item 918-030-000 features viewing slots that are strategically placed to view the fluid level inside as the wiper plunger moves down the cartridge body. This retainer is used with TS950 series pneumatic cartridge guns, TS16 series manual cartridge guns or with 918-001-004 air cap.

Precision dispensers provide safe and leak free fluid dispensing from industrial cartridges.

Key Features
✅ Robust construction for long-lasting performance
✅ Compatible with Techcon, Semco, and EFD Type 2.5oz cartridges
✅ Easy to clean for hassle-free maintenance
✅ 100 PSI pressure rating for industrial use
✅ Viewing slots to monitor plunger level inside the cartridge
✅ Versatile bayonet attachment to pneumatic and manual guns & air caps

Specifications
✅ Part ID: 918-030-000
✅ Material: Anodised Aluminium Retainer, Steel Pins
✅ Colour: Black
✅ Maximum Pressure: 100 PSI (6.9 BAR)
✅ Retainer Length: 4.0" (101.6mm)
✅ Retainer Outer Diameter: 1.70" (43.18mm)
✅ Warranty: 1 Year
✅ Commodity Code: 90289090
✅ Country of Origin: USA
✅ Brand: Techcon
✅ Pack Size: 1 Part

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
