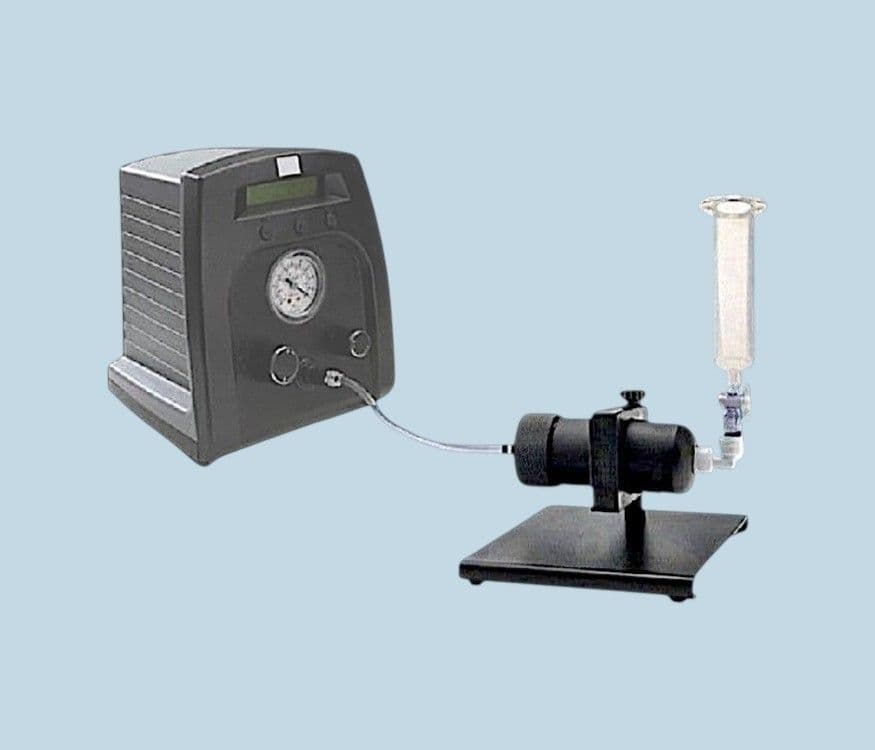

An efficient method of transferring greases, epoxies, silicones, solder pastes and other thixotropic materials into a disposable syringe barrel. This barrel loader is supplied with a pneumatic adjustable timed benchtop dispenser to control the operation.
The model 250-25D barrel loader is for 2.5oz Techcon, Semco or Nordson EFD type cartridges, which are placed inside a sealed container mounted on the stand. The barrel attachment assembly is threaded to accept luer lock barrels. Activating the pneumatic dispenser once connected to the air line causes the material to rise inside the barrel. This method simplifies loading and reduces the possibility of entrapped air in the fluid.
The 250-25D includes pneumatic bench mounted dispenser with 0-100 psi adjustable regulator/ gauge, benchtop cartridge base stand, retainer bracket support, 2.5oz retainer and air cap, two (2) empty 2.5oz cartridge and wiper plungers, an outlet cap and special barrel attachment assembly. The 2.5oz cartridges are filled with material of choice.
The digital dispenser controlling this system allows timed repeat filling to each syringe barrel to eliminate guesswork and improve repeatibility. This system is operated by electric foot switch (supplied).
Part ID: 250-25D
Materials: Polyethylene/ Steel/ Nylon
Capacity: 2.5oz/ 75cc/ml
Weight: 4kg
Maximum Pressure: 100 PSI
Dispenser Timer: 0.08 - 60 Seconds
Warranty: 12 Months
Commodity Code: 90289090
Brand: ADL/ TSI
Warranty: 1 Year
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
