Techcon TS25CKIT-PB1 - 2.5oz HDPE Cartridge Plunger Nozzle Reservoir Kit
High-performance, industrial-grade cartridge system for precision fluid dispensing
Product Overview

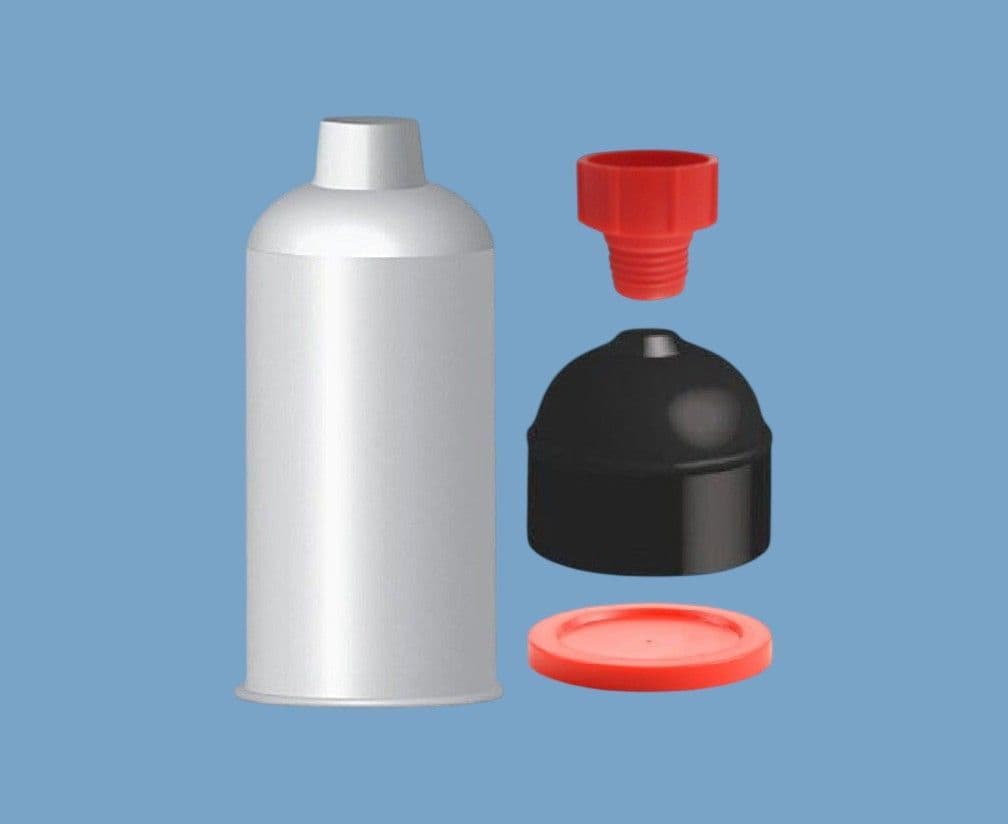

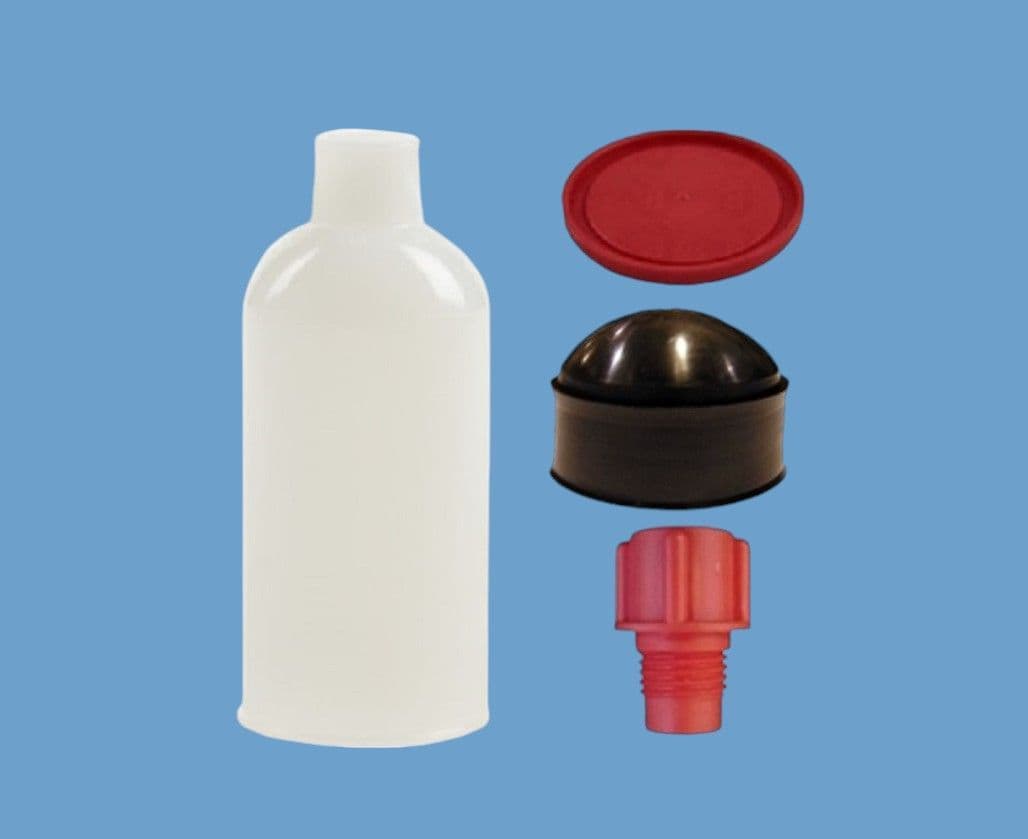

The TS25CKIT-PB1 is a 2.5oz (75ml) cartridge reservoir kit made from high density polyethylene (HDPE), featuring a durable black LDPE wiper plunger for controlled dispensing. Also includes tip cap seals and end cap seals.
Plungers are designed with a wiper leading edge and follower blade to clean each cartridge thoroughly eliminating material waste. Caps and plugs provide sealing for both ends of the cartridge, making the system ideal for use in single or two-component materials as well as pre-mixed frozen applications.
This silicone-free, industrial-grade component kit is ideal for use with manual and pneumatic cartridge guns as well as with pressurised retainer systems, supporting a wide range of materials including:
- Adhesives & epoxies
- Urethanes & acrylics
- Polysulphides & silicones
- UV-cure compounds
- Solder pastes, fluxes & greases
- Solvents, primers & activators
Key Features and Benefits
- Material Compatibility: Dispenses low to high viscosity fluids with precision
- Clean and Safe: Silicone-free, suitable for critical manufacturing environments
- Supply: Sealed packs of pre-plunged cartridges for fast, clean filling
- Traceable Packaging: Each pack labelled with batch code for full compliance
- Universal Threading: Standard 1/4" NPT (6mm) female thread for easy nozzle connection
- Robust Construction: Withstands pressures up to 100 PSI
Technical Specifications
- Part ID: TS25CKIT-PB1
- Cartridge Material: High Density Polyethylene (HDPE)
- Plunger Material: Low Density Polyethylene (LDPE)
- Tip Cap Material: High Density Polyethylene (HDPE)
- End Cap Material: Low Density Polyethylene (LDPE)
- Colours: Natural Cartridge, Black Plunger, Red Caps
- Capacity: 2.5oz - 75cc/ ml
- Cartridge Length: 4.00" - 101.6mm
- Cartridge OD: 1.69" - 42.92mm
- Cartridge ID: 1.59" - 40.38mm
- Maximum Pressure: 100 PSI
- Details: Industrial Grade Safe, Silicone Free
- Commodity Code: 39269097
- Origin: USA
- Brand: Techcon Systems
- Pack Size: (10) Cartridges, (10) Plungers, (10) Tip Caps, (10) End Caps

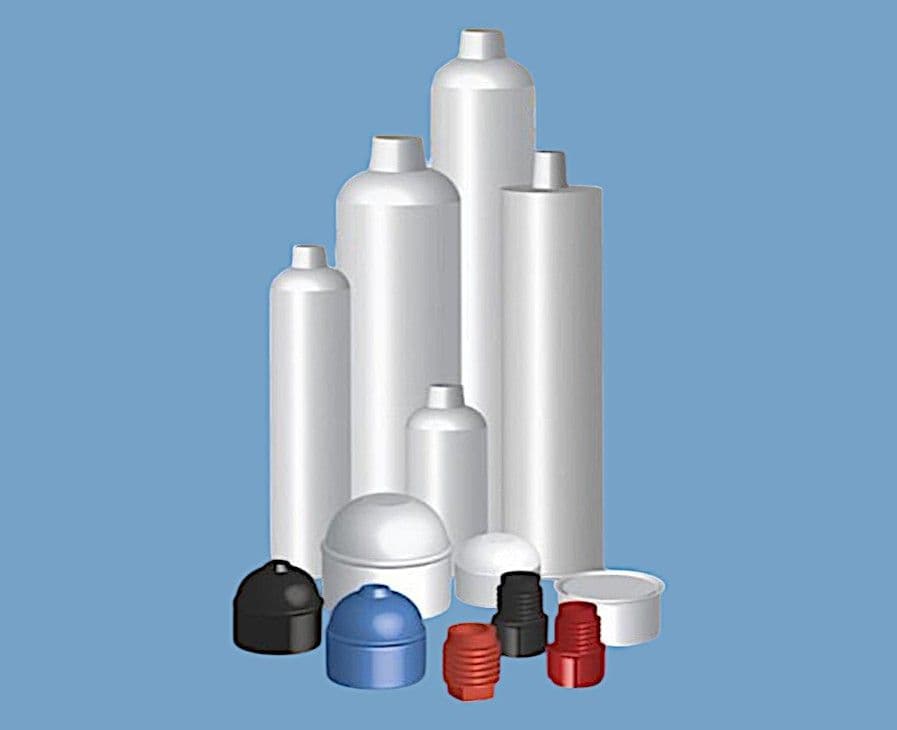

The dispensing cartridges are available in industry-standard sizes:
2.5oz (75cc), 6oz (180cc), 8oz (237cc), 10oz (310/325cc), 12oz (360cc), 20oz (600cc), 32oz (960cc) - all in natural, black or green low-density & high-density polyethylene and compatible with industry-standard dispensing systems.
Wiper Plungers
- Ensure complete material evacuation with minimal waste
- Maintain consistent pressure along cartridge walls
- More material control and reduced oozing or drooling from the nozzle
- Plunger creates a barrier for reduced fumes and odours
- Rated for use up to 100 psi for use in pneumatic systems
Cap Seals
- Securely seal both ends of the cartridge
- Prevent air ingress and material leakage
- Ideal for storage and transport of filled cartridges
Apply controlled air pressure for fluid dispensing or metering
- Compatible with bench-mounted systems for hands-free operation
- Enhance precision and reduce operator hand fatigue
Quality & Traceability
All cartridge components are supplied in sealed packs with label and batch codes for full traceability and quality assurance.
Versatile Dispensing Solutions
Adhesive Dispensing Ltd provides full-service equipment support for fluid applications - from watery activators and primers to highly viscous gels, adhesives, and sealants. Our systems ensure precise dispensing, minimal waste, and clean transfer, backed by reliable technical support.
